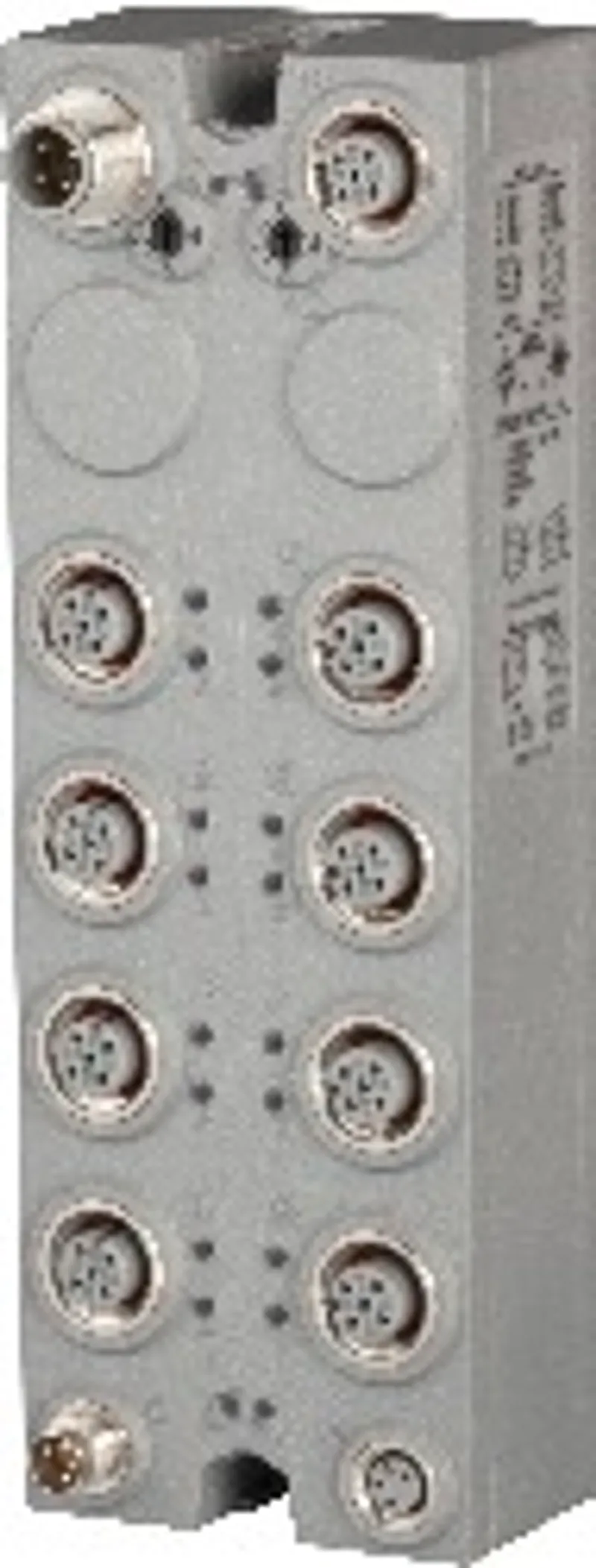

B&R X67DM9331.L12

I/O module, 8 digital channels

MPN: X67DM9331.L12
Category: Digital mixed modules

€274.54excl. VAT & shipping

In stock — 3 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X67DM9331.L12?

8 digital channels, configurable as inputs or outputs

Outputs can handle up to 2 A

Node number switches for setting the X2X Link address

Replacement of passive distributors

All outputs with single-channel diagnostics

Extensive additional status information

This module is equipped with 8 digital channels that can be configured either as inputs or outputs. The inputs are designed for a sink circuit, and the outputs are designed for a source circuit. The outputs can be loaded with up to 2 A . The summation current is 8 A.

The node number switch for setting the X2X Link address is a unique feature. When modular machine configurations change, it is required, for example, to define certain module groups at a fixed address that is independent of the preceding modules in the line. All subsequent standard modules refer to this offset and use it automatically for addressing purposes.

Specifications

Short description

I/O module

8 digital channels, configurable as inputs or outputs using software

General information

Sensor/Actuator power supply – Sensor/Actuator current	0.1 A
Sensor/Actuator power supply – Summation current	0.5 A
Diagnostics – Outputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Diagnostics – Sensor/Actuator power supply	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Inputs/Outputs	8x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	1.7 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
Insulation voltage between channel and bus	500 V eff
Nominal voltage	24 VDC
B&R ID code	0x1B15
Status indicators	I/O function per channel, sensor/actuator power supply per channel, supply voltage, bus function

I/O power supply

Power consumption – Sensor/Actuator power supply	Max. 12 W (note: The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.)
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Sensor/Actuator power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 0.5 A	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Digital inputs

Input filter – Hardware	≤70 μs
Input filter – Software	Default 0 ms, configurable between 0 and 25 ms in 0.2 ms intervals
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Input characteristics per EN 61131-2	Type 1
Input voltage	18 to 30 VDC
Input current at 24 VDC	Typ. 4.4 mA
Input circuit	Sink
Input resistance	Typ. 5 kΩ

Digital outputs

Switching delay – 0 → 1	<250 µs
Switching delay – 1 → 0	<270 µs
Switching frequency – Resistive load	Max. 100 Hz
Variant	Current-sourcing FET
Switching voltage	I/O power supply minus residual voltage
Nominal output current	2 A
Total nominal current	8 A
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Diagnostic status	Output monitoring with 10 ms delay
Leakage current when the output is switched off	5 µA
Switching on after overload shutdown	Approx. 10 ms (depends on the module temperature)
Residual voltage	<0.5 V at 2 A nominal current
Peak short-circuit current	<21 A
Braking voltage when switching off inductive loads	50 VDC

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	155 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	325 g
