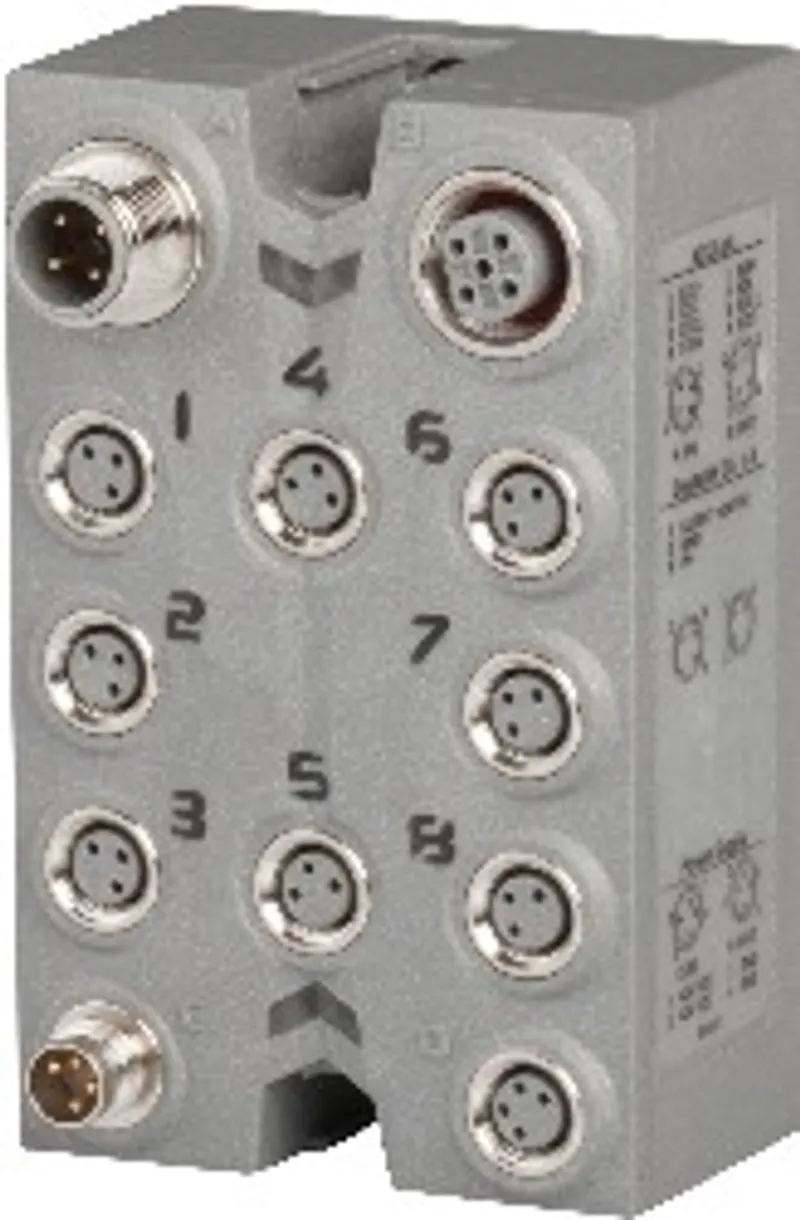

B&R X67DO1332

I/O module, 8 digital outputs 24 VDC

MPN: X67DO1332
Category: Digital output modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X67DO1332?

8 A summation current per module

All outputs with single-channel diagnostics for short circuit or overload

Extremely short cycle times

Outputs with short circuit protection

Integrated protection for switching inductances

The module is a digital output module for 24 VDC. It is equipped with 8 outputs for a source output circuit.

Specifications

Short description

I/O module

8 digital outputs 24 VDC

General information

Diagnostics – Outputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator
Connection type – X2X Link	M12, B-coded
Connection type – Outputs	8x M8, 3-pin
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	2 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1467
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Power consumption – Actuator power supply	Max. 12 W (note: The power consumption of the actuators connected to the module is not permitted to exceed 12 W.)
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Digital outputs

Switching delay – 0 → 1	<250 µs
Switching delay – 1 → 0	<270 µs
Switching frequency – Resistive load	Max. 100 Hz
Continuous current per – Output	Max. 2 A
Continuous current per – Group	Max. 4 A (simultaneity factor = 50%) (note: Simultaneous factor = 50%: A maximum of 2 of 4 outputs in a group are permitted to be fully loaded at the same time.)
Continuous current per – Module	Max. 8 A
Quantity	8 (note: In 2 groups of 4 channels each.)
Variant	Current-sourcing FET
Nominal voltage	24 VDC
Switching voltage	I/O power supply minus residual voltage
Nominal output current	2 A
Total nominal current	8 A
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Actuator power supply	0.5 A summation current
Diagnostic status	Output monitoring with 10 ms delay
Leakage current when the output is switched off	5 µA
Switching on after overload shutdown	Approx. 10 ms (depends on the module temperature)
Group 1	Channels 1 to 4
Group 2	Channels 5 to 8
Residual voltage	<0.5 V at 2 A nominal current
Peak short-circuit current	<21 A
Braking voltage when switching off inductive loads	50 VDC

Actuator power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	180 g
