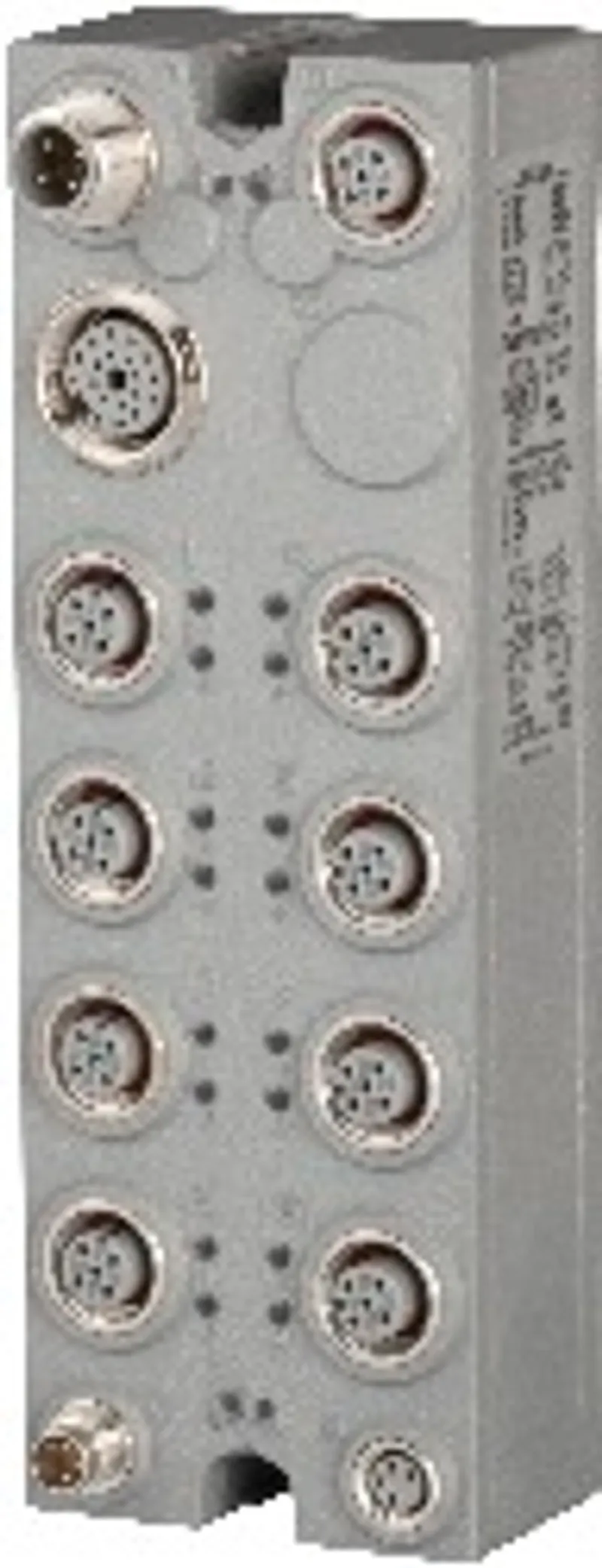

B&R X67DV1311.L12

Name: B&R X67DV1311.L12
Brand: B&R
SKU: X67DV1311.L12

MPN: X67DV1311.L12 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Valve control
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	330 kg

Shipping & availability

When can X67DV1311.L12 be shipped?

X67DV1311.L12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67DV1311.L12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67DV1311.L12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67DV1311.L12, subject to availability and destination.

Controlling valve manifolds with multi-pin technologyUp to 16 valves per valve manifold16 digital inputs for feedbackSeparate feed for inputs and valve coilsConfigurable digital input filterAll outputs with single channel diagnosticsExtensive additional status information This module lets you control valve terminals using multi-pin technology. The digital inputs use M12 connectors.

Specifications

I/O module	16 digital outputs for controlling valve terminals with multi-pin technology 16 digital inputs for feedback
Insulation voltage between channel and bus	500 Veff
Nominal voltage	24 VDC
B&R ID code	0x1AEE
Status indicators	I/O function per digital input, supply voltage, bus function
Outputs	M16, 19-pin
I/O power supply	M8, 4-pin
X2X Link	M12, B-coded
Inputs	8x M12, A-coded
Internal I/O	1.3 W
X2X Link power supply	0.75 W
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
KC	Yes
Voltage range	18 to 30 VDC
Integrated protection	Reverse polarity protection
Sensor/Actuator power supply	Max. 12 W
Input characteristics per EN 61131-2	Type 1
Input voltage	18 to 30 VDC
Input current at 24 VDC	Typ. 4.4 mA
Input circuit	Sink
Hardware	≤100 μs
Software	Default 0 ms, configurable between 0 and 25 ms in 0.2 ms intervals
Input resistance	Typ. 5 kΩ
Sensor power supply	0.5 A summation current
Low	<5 VDC
High	>15 VDC
Variant	Current-sourcing FET
Switching voltage	I/O power supply minus residual voltage
Nominal output current	0.1 A
Total nominal current	1.6 A
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Diagnostic status	Output monitoring with 10 ms delay
Leakage current when the output is switched off	5 µA
Switching on after overload shutdown	Approx. 10 ms (depends on the module temperature)
Residual voltage	<0.1 V at 0.1 A nominal current
Peak short-circuit current	<2 A
0 → 1	<100 µs
1 → 0	<150 µs
Resistive load	Max. 100 Hz
Inductive load	See "Switching inductive loads"
Braking voltage when switching off inductive loads	52 VDC
Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes
Electrical isolation	Channel isolated from bus Channel not isolated from channel
Any	Yes
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67
Operation	-25 to 60°C
Derating	-
Storage	-40 to 85°C
Transport	-40 to 85°C
Width	53 mm
Height	155 mm
Depth	42 mm
Weight	330 g
M8	Max. 0.4 Nm
M12	Max. 0.6 Nm
M16	Max. 1.0 Nm
