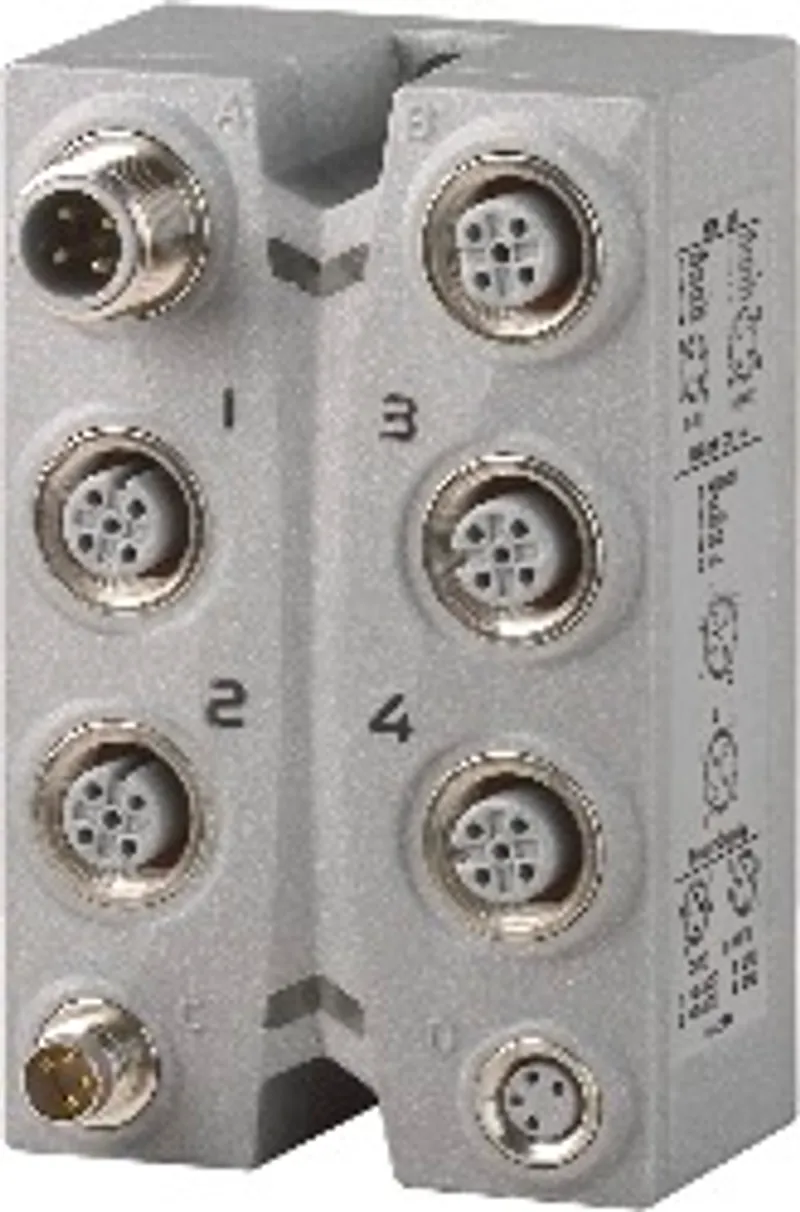

I/O module, IO-Link master with 4 IO-Link interfaces
- MPN
- X67DS438A
- Category
- IO-link modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X67DS438A?
4 IO-Link channels (Port Class A)
Each IO-Link channel can be configured as a digital input or output (SIO mode)
Additional digital input per IO-Link connection
24 VDC and GND for sensor/actuator supply
NetTime timestamps: IO-Link data
The module is an IO-Link master that allows intelligent sensor and actuators to be connected in accordance to the IO-Link standard. The module can be used to operate up to 4 IO-Link devices. All IO-Link channels can also be operated in SIO mode if desired and thus used as digital inputs or outputs. The module also has 4 additional digital inputs, which can be used independent of the IO-Link channel configuration.
Specifications
Short description
| I/O module | IO-Link master with 4 IO-Link interfaces |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – IO-Link operating state | Yes, using LED status indicator and software |
| Diagnostics – C/Q status | Yes, using LED status indicator and software |
| Diagnostics – I/Q status | Yes, using software |
| Connection type – X2X Link | M12, B-coded |
| Connection type – Inputs | M12, A-coded |
| Connection type – I/O power supply | M8, 4-pin |
| Cable specification – Cable type | 4-pin sensor cable, unshielded |
| Cable specification – Cable length | Max. 20 m |
| Cable specification – Line capacitance | Max. 3 nF |
| Cable specification – Loop resistance | Max. 6 Ω |
| Power consumption – Internal I/O | 0.5 W |
| Power consumption – X2X Link power supply | 0.75 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| B&R ID code | 0xCAAE |
| Status indicators | IO-Link operating state, bus function, module status |
| Additional power dissipation caused by actuators (resistive) [W] | - |
I/O power supply
| Nominal voltage | 24 VDC |
| Voltage range | 24 VDC ±25% |
| Integrated protective function | Reverse polarity protection |
Sensor/Actuator power supply
| Overload protection – Switch-off delay | Configurable using software |
| Overload protection – Switch-off duration | Configurable using software |
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 0.5 A | Max. 0.3 V |
| Power consumption | Max. 12 W per IO-Link interface |
| Short-circuit proof | Yes |
IO-Link in master mode
| Transfer rates – COM1 | 4.8 kbaud |
| Transfer rates – COM2 | 38.4 kbaud |
| Transfer rates – COM3 | 230.4 kbaud |
| Limit values for COM3 – Max. connection capacity | 22 nF (cable + IO-Link device) |
| Limit values for COM3 – Max. load | 96 Ω / 250 mA |
| Data format | 1 start bit, 8 data bits, 1 parity bit (even), 1 stop bit |
| Bus level | 24 VDC (active), 0 VDC (resting voltage) |
IO-Link in master mode or in SIO mode "digital output"
| Switching delay – 0 → 1 | <10 µs |
| Switching delay – 1 → 0 | <10 µs |
| Overload protection of C/Q output – Overcurrent threshold | Configurable using software |
| Overload protection of C/Q output – Switch-off duration | Configurable using software |
| Variant | Bipolar, positive and negative switching |
| Peak short-circuit current | <1.3 A |
| Residual voltage | <0.7 VDC at nominal current 0.25 A |
| Switching voltage | I/O power supply minus voltage drop for short-circuit protection and semiconductor switch |
| Voltage drop on semiconductor switch | Max. 0.5 VDC at 0.25 A |
| Insulation voltage between IO-Link and bus | 500 V eff |
IO-Link in SIO mode "Digital output"
| Nominal voltage | 24 VDC |
| Nominal output current | 0.25 A |
| Total nominal current | Max. 1 A |
| Output circuit | Sink or source |
| Switching frequency (resistive load) | Max. 500 Hz |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads |
IO-Link in SIO mode "digital input"
| Input filter – Hardware | 300 ns |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Nominal voltage | 24 VDC |
| Input circuit | Sink |
| Input voltage | 24 VDC -15% / +20% |
| Input current at 24 VDC | Typ. 4.0 mA |
| Input resistance | Typ. 6 kΩ |
| Insulation voltage between IO-Link and bus | 500 V eff |
IO-Link I/Q interface (digital input)
| Input filter – Hardware | ≤60 µs |
| Input filter – Software | Default 1 ms, configurable between 0 and 25.5 ms |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Nominal voltage | 24 VDC |
| Input voltage | 24 VDC -15% / +20% |
| Input current at 24 VDC | Typ. 3.8 mA |
| Input circuit | Sink |
| Input resistance | Typ. 6.3 kΩ |
| Insulation voltage between channel and bus | 500 V eff |
Electrical properties
| Electrical isolation | Bus isolated from IO-Link |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 5 to 95% |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 85 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Weight | 200 g |
