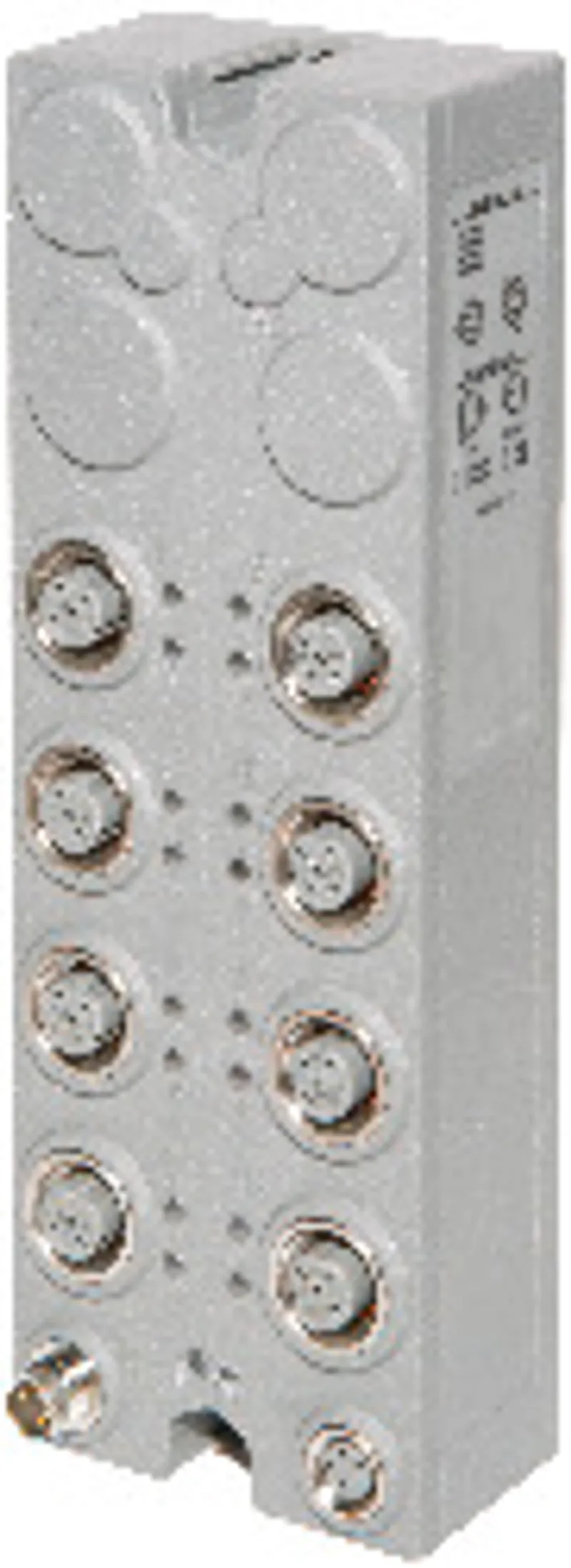

B&R X67HB8880.L12
Hub, 8-port industrial hub
- MPN
- X67HB8880.L12
- Category
- Hub system
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R X67HB8880.L12?
8-port industrial hub
Large voltage range of 8 to 32 VDC
Load dump protection
The Ethernet hub is a standalone device that can be used universally as a hub in POWERLINK networks. It is suitable for both 100 Mbit/s (Fast Ethernet) and 10 Mbit/s networks. The hub automatically recognizes the transfer speed for the channels.
The Ethernet connections are made using D-keyed M12 connectors. All ports are equipped with auto-MDIX (auto-crossover).
The module is designed for a voltage range of 8 to 32 VDC and equipped with a power supply protected against load dump.
Specifications
Short description
| Hub | 8-port industrial hub |
General information
| Diagnostics – Bus function | Yes, using LED status indicator |
| Diagnostics – Hub power supply | Yes, using LED status indicator |
| Connection type – Fieldbus | 8x M12, D-coded |
| Connection type – I/O power supply | M8, 4-pin |
| Power consumption – Internal | 2.5 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | Network activity for each channel, link/collision for each channel, supply voltage |
Interfaces
| Transfer – Physical layer | 10BASE-T/100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Type | Ethernet |
| Standard (compliance) | ANSI/IEEE 802.3 Class II |
| Variant | M12 interface (male connector on the module) |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 10/100 Mbit/s |
| Hub propagation delay | 0.79 to 0.86 µs |
I/O power supply
| Nominal voltage | 12/24 VDC |
| Voltage range | 8 to 32 VDC |
| Integrated protective function | Reverse polarity protection, overvoltage protection |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -40 to 60°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 155 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Weight | 320 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
X67HB8880.L12: frequently asked questions
When can X67HB8880.L12 be shipped?
X67HB8880.L12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67HB8880.L12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67HB8880.L12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67HB8880.L12, subject to availability and destination.
