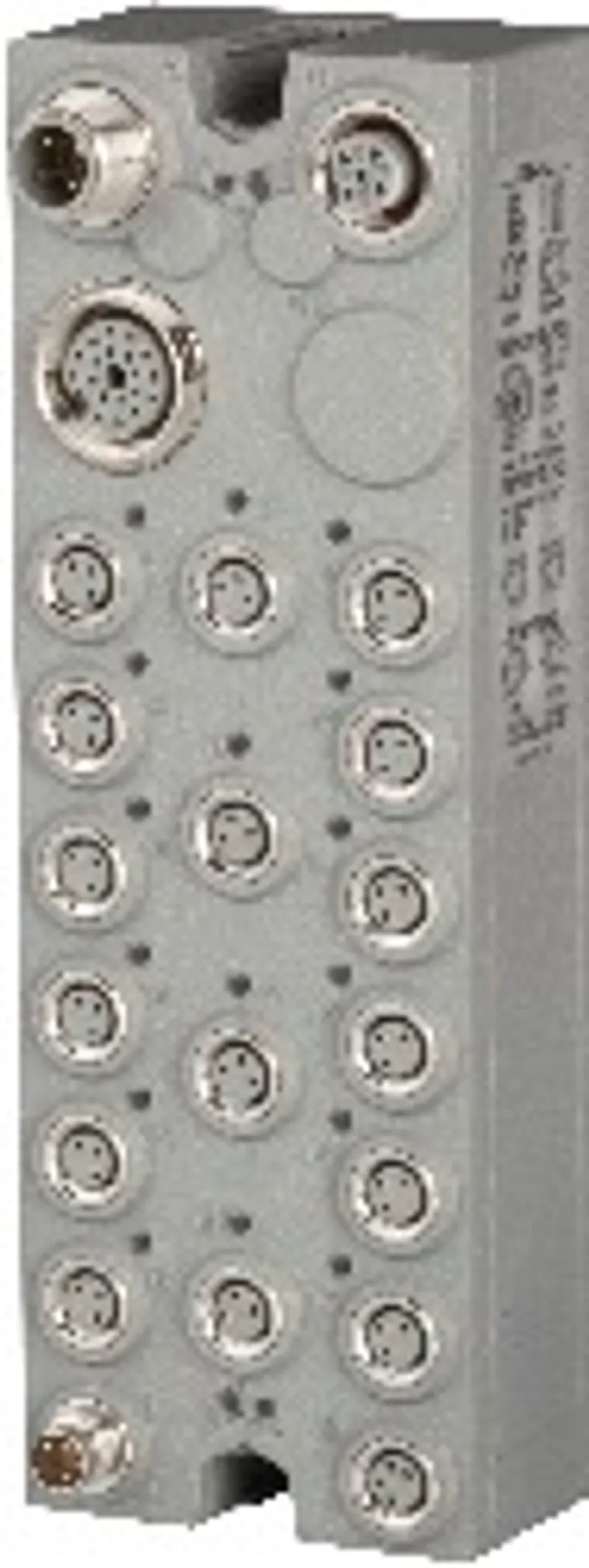

What is the B&R X67DV1311.L08?
Controlling valve manifolds with multi-pin technology
Up to 16 valves per valve manifold
16 digital inputs for feedback
Separate feed for inputs and valve coils
Configurable digital input filter
All outputs with single channel diagnostics
Extensive additional status information
This module makes it possible to control valve terminals with multi-pin technology. The digital inputs are designed as M8 connectors .
Specifications
Short description
| I/O module | 16 digital outputs for controlling valve terminals with multi-pin technology ; 16 digital inputs for feedback |
General information
| Diagnostics – Outputs | Yes, using LED status indicator and software |
| Diagnostics – I/O power supply | Yes, using LED status indicator and software |
| Connection type – X2X Link | M12, B-coded |
| Connection type – Outputs | M16, 19-pin |
| Connection type – Inputs | 16x M8, 3-pin |
| Connection type – I/O power supply | M8, 4-pin |
| Power consumption – Internal I/O | 1.3 W |
| Power consumption – X2X Link power supply | 0.75 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| Insulation voltage between channel and bus | 500 V eff |
| Nominal voltage | 24 VDC |
| B&R ID code | 0x1AED |
| Status indicators | I/O function per digital input, supply voltage, bus function |
I/O power supply
| Power consumption – Sensor/Actuator power supply | Max. 12 W (note: The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.) |
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Integrated protective function | Reverse polarity protection |
Digital inputs
| Input filter – Hardware | ≤100 μs |
| Input filter – Software | Default 0 ms, configurable between 0 and 25 ms in 0.2 ms intervals |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Input characteristics per EN 61131-2 | Type 1 |
| Input voltage | 18 to 30 VDC |
| Input current at 24 VDC | Typ. 4.4 mA |
| Input circuit | Sink |
| Input resistance | Typ. 5 kΩ |
| Sensor power supply | 0.5 A summation current |
Digital outputs
| Switching delay – 0 → 1 | <100 µs |
| Switching delay – 1 → 0 | <150 µs |
| Switching frequency – Resistive load | Max. 100 Hz |
| Switching frequency – Inductive load | See "Switching inductive loads" |
| Variant | Current-sourcing FET |
| Switching voltage | I/O power supply minus residual voltage |
| Nominal output current | 0.1 A |
| Total nominal current | 1.6 A |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Diagnostic status | Output monitoring with 10 ms delay |
| Leakage current when the output is switched off | 5 µA |
| Switching on after overload shutdown | Approx. 10 ms (depends on the module temperature) |
| Residual voltage | <0.1 V at 0.1 A nominal current |
| Peak short-circuit current | <2 A |
| Braking voltage when switching off inductive loads | 52 VDC |
Actuator power supply
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 500 mA | Max. 2 VDC |
| Summation current | Max. 0.5 A |
| Short-circuit proof | Yes |
Electrical properties
| Electrical isolation | Channel isolated from bus ; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 155 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Torque for connections – M16 | Max. 1.0 Nm |
| Weight | 350 g |
