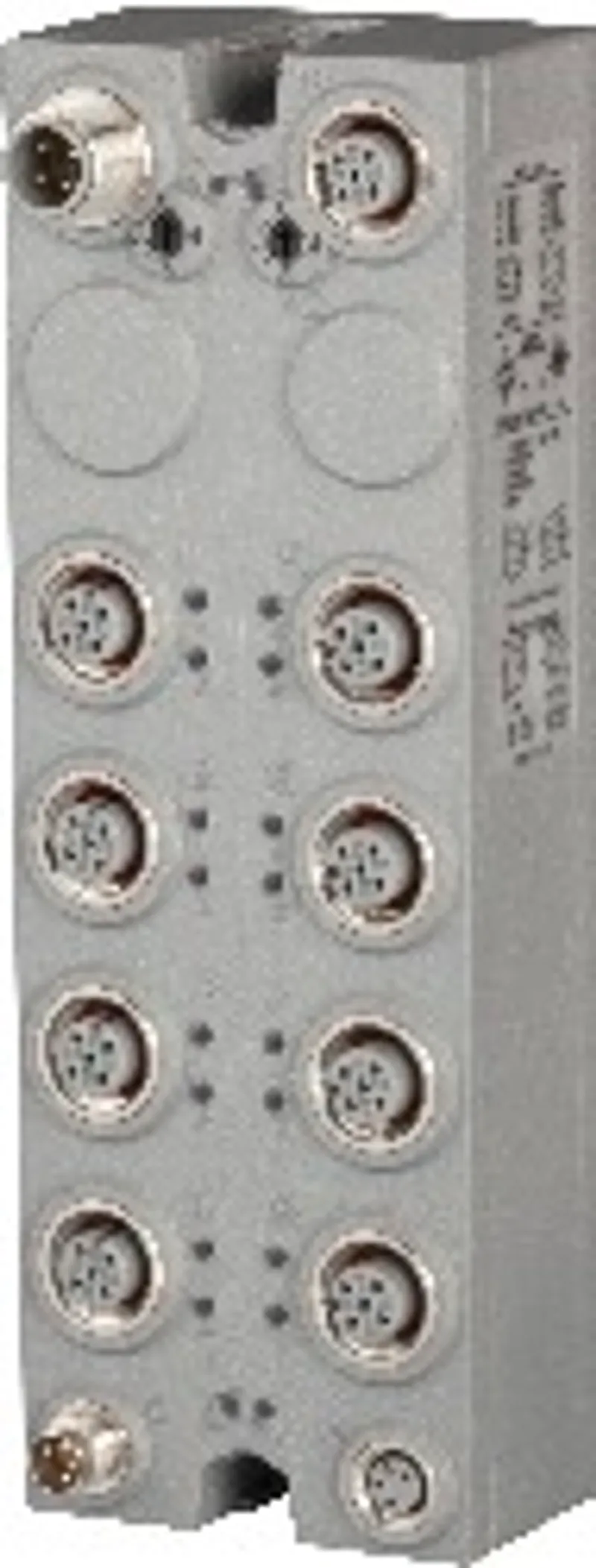

B&R X67DO9332.L12
I/O module, 8 digital outputs 24 VDC
- MPN
- X67DO9332.L12
- Category
- Digital output modules
€159.00excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R X67DO9332.L12?
8 digital outputs
Outputs can handle up to 2 A
Node number switches for setting the X2X Link address
1:1 replacement for passive distributors
All outputs with single-channel diagnostics
Extensive additional status information
The module is a digital output module with 8 channels. The outputs can be loaded with up to 2 A . The summation current is 8 A.
The node number switches for setting the X2X Link address are a unique feature. When modular machine configurations change, it is required, for example, to define certain module groups at a fixed address that is independent of the preceding modules in the line. All subsequent standard modules refer to this offset and use it automatically for addressing purposes.
Specifications
Short description
| I/O module | 8 digital outputs 24 VDC |
General information
| Diagnostics – Outputs | Yes, using LED status indicator and software |
| Diagnostics – Actuator power supply | Yes, using LED status indicator and software |
| Diagnostics – I/O power supply | Yes, using LED status indicator and software |
| Connection type – X2X Link | M12, B-coded |
| Connection type – Outputs | 8x M12, A-coded |
| Connection type – I/O power supply | M8, 4-pin |
| Power consumption – Internal I/O | 1.7 W |
| Power consumption – X2X Link power supply | 0.75 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| B&R ID code | 0x2658 |
| Status indicators | I/O function per channel, actuator power supply per channel, supply voltage, bus function |
I/O power supply
| Power consumption – Actuator power supply | Max. 12 W (note: The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.) |
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Integrated protective function | Reverse polarity protection |
Digital outputs
| Actuator power supply – Actuator current | 0.1 A |
| Actuator power supply – Total nominal current | 0.5 A |
| Switching delay – 0 → 1 | <250 µs |
| Switching delay – 1 → 0 | <270 µs |
| Switching frequency – Resistive load | Max. 100 Hz |
| Quantity | 8 |
| Variant | Current-sourcing FET |
| Nominal voltage | 24 VDC |
| Switching voltage | I/O power supply minus residual voltage |
| Nominal output current | 2 A |
| Total nominal current | 8 A |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply |
| Diagnostic status | Output monitoring with 10 ms delay |
| Leakage current when the output is switched off | 5 µA |
| Switching on after overload shutdown | Approx. 10 ms (depends on the module temperature) |
| Residual voltage | <0.5 V at 2 A nominal current |
| Peak short-circuit current | <21 A |
| Braking voltage when switching off inductive loads | 50 VDC |
Actuator power supply
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 500 mA | Max. 2 VDC |
| Summation current | Max. 0.5 A |
| Short-circuit proof | Yes |
Electrical properties
| Electrical isolation | Channel isolated from bus ; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 155 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Weight | 330 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
