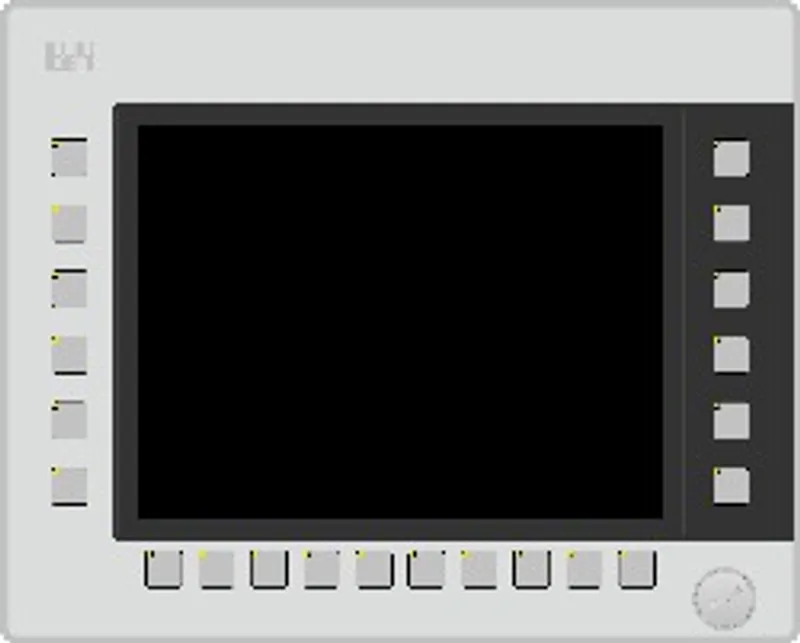

B&R 5PP580.1043-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | System units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2650 kg |
Shipping & availability
When can 5PP580.1043-00 be shipped?
5PP580.1043-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PP580.1043-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PP580.1043-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PP580.1043-00, subject to availability and destination.
10.4" TFT VGA color displayAnalog resistive touch screen and function keysIntel® Atom™ technologyCompact installation depthFanless operationCan be upgraded with interface board Power Panel 580 10.4" VGA TFT display with touch screen (resistive), 22 function keys, connections for 1x RS232, 3x USB 2.0, 1x Ethernet 10/100/1000, can be expanded with an interface board, IP65 protection (front), order 24 VDC connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
Specifications
Specifications
| LEDs | Power, CF, Link, Run |
| B&R ID code | 0xB606 |
| Cooling | Fanless |
| Type | USB 2.0 |
| Service life | >1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force |
| Removable | Yes, accessible from the outside |
| Variant | Shielded RJ45 port |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Bootloader | BIOS |
| Mode/Node switches | 2, 16 positions each (back) |
| Watchdog | MTCX |
| Controller | Intel 82574 |
| Buffer time | 10 ms |
| Memory size | Max. 2 GB |
| Diagonal | 10.4" (264 mm) |
| Colors | 16 million |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 700:1 |
| Horizontal | Direction R = 80° / Direction L = 80° |
| Vertical | Direction U = 80° / Direction D = 60° |
| Brightness (dimmable) | Typ. 22.5 to 450 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Analog, resistive |
| Transmittance | 81% ±3% |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| Quantity | 1 |
| Transfer rate | 10/100/1000 Mbit/s |
| Current-carrying capacity | Max. 1 A per connection |
| Function keys | 22 with LED (yellow) |
| System keys | No |
| Yellow | Typ. 38 mcd |
| Interface board | Yes |
| I/O board | No |
| Nominal voltage | 24 VDC ±25%, SELV |
| Nominal current | 1.2 A |
| Inrush current | Typ. 3 A, max. 50 A for <300 µs |
| Power consumption | 28.5 W |
| Galvanic isolation | Yes |
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card, connected IF board or optional IF cover) Front: IP65, protected against dust and hose-directed water |
| Operation | Max. 3000 m (component-dependent) |
| Storage | 30 g, 6 ms |
| Transport | 30 g, 6 ms |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Material | Polyester |
| Frame | Aluminum, naturally anodized |
| Light background color | RAL 9006 |
| Dark border color around display | RAL 7024 |
| Gasket | Flat gasket around display front |
| Width | 323 mm |
| Height | 260 mm |
| Depth | 59.7 mm |
| Weight | 2650 g |
