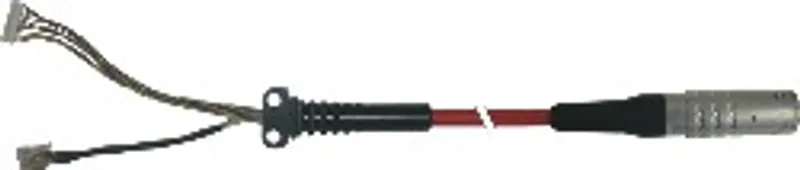

B&R 5CAMPH.0050-30
An attachment cable establishes the electrical and…
- MPN
- 5CAMPH.0050-30
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5CAMPH.0050-30?
An attachment cable establishes the electrical and mechanical connection between the control cabinet and device. It includes lines for the network (Ethernet 10/100 Mbit/s) as well as for the control devices and 24 VDC power supplyIEC 61010-2-201 requirements must be observed..
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Durability | Mechanical properties per DIN VDE 0472 section 603 test type H (100000 cycles) |
Cable construction
| Supply lines – Material | Tinned copper stranded wire |
| Outer jacket – Material | Silicone- and halogen-free, flame-retardant PUR outer jacket |
| Outer jacket – Color | Similar to RAL 7012 |
| Cable elements – Network | Twisted pair cable for Ethernet (10/100 Mbit/s) (4 wires, male RJ45 connector) |
| Cable elements – Stop button | Direct connection between stop button and monitoring device (4 wires) |
| Cable elements – Power supply | Supply voltage +24 VDC and ground (3 wires) |
| Cable elements – Enable switch | Direct connection between enable switch and monitoring device (4 wires) |
| Type | Hybrid cable, 25 wires |
Connector
| Type | ODU circular connector with push-pull locking mechanism |
Electrical properties
| Operating voltage | Max. 30 VDC |
| Conductor resistance | ≤30 Ω/km |
Operating conditions
| Shield attenuation | Per IEC 60096-1, Amendment 2 |
| Flame-retardant | Per IEC 60332-1 and VW1 / FT1 in accordance with C-UL |
| Oil and hydrolysis resistance | Per VDE 0282-10 |
Ambient conditions
| Temperature – Moving | -5 to 60°C |
| Temperature – Static | -20 to 80°C |
Mechanical properties
| Dimensions – Length | 5 m ±0.1 m |
| Dimensions – Diameter | 10 mm |
| Bend radius | Min. 60 mm |
| Weight | 153 g/m |
| Tension | Max. 140 N |
Accessories
Required accessories (order separately)
| 5CAMPC.0020-11 | Control cabinet cables — A straight-through control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector makes i… |
| 5CAMPC.0020-10 | Control cabinet cables — A crossover control cabinet cable is required for the wiring inside the control cabinet.The pinout of the Ethernet connector (crossover) ma… |
Optional accessories (2)
| 4MPCBX.0001-00 | Accessories — Vertical connection of the Mobile Panel attachment cable to the control cabinet; IP65 protection; Compact dimensions; Robust construction C… |
| 4MPCBX.0000-00 | Accessories — Compatible for connections with Mobile Panel 7x00; Emergency stop circuit not interrupted when disconnecting and connecting the Mobile Pane… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5CAMPH.0050-30: frequently asked questions
When can 5CAMPH.0050-30 be shipped?
5CAMPH.0050-30 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5CAMPH.0050-30 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5CAMPH.0050-30 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CAMPH.0050-30, subject to availability and destination.
