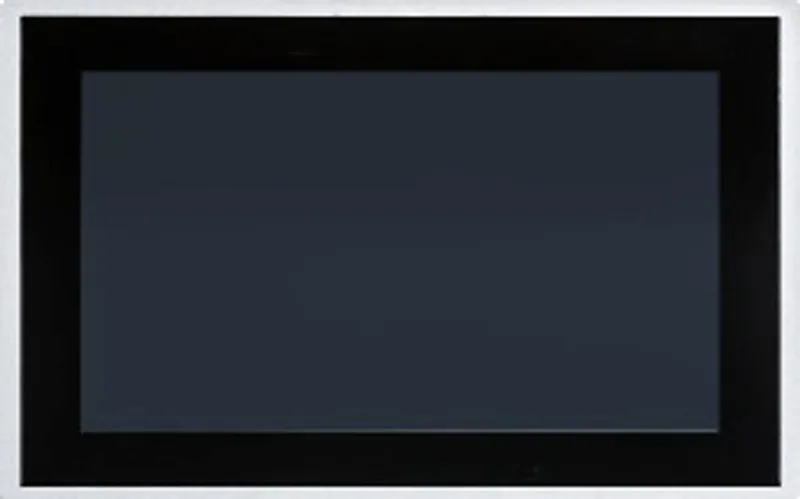

B&R 5AP5130.156B-000
15.6" TFT HD color display
- MPN
- 5AP5130.156B-000
- Category
- Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP5130.156B-000?
15.6" TFT HD color display
Multi-touch (PCT)
Flexible swing arm mounting or VESA
IP65 protection with mounting unit 5ACCMA00.000x-000
IP54 protection with mounting unit 5ACCMA00.010x-000
IP10 protection with mounting unit 5ACCMA01.0100-000
Automation Panel 15.6" HD TFT - 1366 x 768 pixels (16:9) - Multi-touch (projected capacitive) - Swing arm mounting - Landscape format - For PPC2x00 / link modules
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xE9C7 |
Display
| Viewing angles – Horizontal | Direction R = 85° / Direction L = 85° |
| Viewing angles – Vertical | Direction U = 85° / Direction D = 85° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 40 to 400 cd/m² |
| Backlight – Half-brightness time | 70,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Technology | Projected capacitive touch (PCT) |
| Touch screen – Transmittance | Approx. 88% |
| Type | TFT color |
| Diagonal | 15.6" |
| Colors | 16.7 million |
| Resolution | HD, 1366 x 768 pixels |
| Contrast | 1000:1 |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP65 with mounting unit 5ACCMA00.000x-000; IP54 with mounting unit 5ACCMA00.010x-000 |
| Degree of protection per UL 50 | Type 4X indoor with mounting unit 5ACCMA00.000x-000; Type 1 with mounting unit 5ACCMA00.010x-000 |
Mechanical properties
| Housing – Material | Aluminum, coated |
| Housing – Coating | White aluminum (similar to RAL 9006) |
| Front – Frame | Aluminum (similar to RAL 9006), coated |
| Front – Design | Black |
| Dimensions – Width | 433 mm |
| Dimensions – Height | 269.5 mm |
| Weight | 4700 g |
Accessories
Optional accessories (10)
| 5ACCFL00.0200-000 | Flanges — Adapter for Rittal coupling CP40 (steel) The adapter is installed on the mounting unit and designed for the installation of Rittal coupling… |
| 5ACCFL00.0100-000 | Flanges — AP5000 flange - Swivel-tilt flange for swing arm - For swing arm mounting unit |
| 5ACCFL00.0000-000 | Flanges — Rotary flange; Range of rotation ±150°; Stepless adjustment of range of rotation; For swing arm systems with 48 mm shaft diameter The rotar… |
| 5ACCHD00.156B-000 | Handles — Handles can be installed on the side of the panel to improve its ergonomic properties and ease of use. |
| 5ACCMA01.0100-000 | Swing arm mounting units — AP5000 VESA mounting unit IP10/IP20 - IP20 with 5AP5120.*-000 - IP10 with 5AP5130.*-000, 5AP5230.*-000 |
| 5ACCMA00.0101-000 | Swing arm mounting units — HMI VESA IP54 mounting unit w/USB - Leak tightness is only provided with suitable cable grommets. |
| 5ACCMA00.0100-000 | Swing arm mounting units — HMI VESA IP54 mounting unit - Leak tightness is only provided with suitable cable grommets. |
| 5ACCMA00.0002-000 | Swing arm mounting units — AP5000 swing arm mounting unit - 2x rear USB interface |
| 5ACCMA00.0001-000 | Swing arm mounting units — Protects the installed link module / system unit; For swing arm mounting with flange; USB 2.0 interface; IP65 protection The mounting unit… |
| 5ACCMA00.0000-000 | Swing arm mounting units — AP5000 swing arm mounting unit |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AP5130.156B-000: frequently asked questions
When can 5AP5130.156B-000 be shipped?
5AP5130.156B-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP5130.156B-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP5130.156B-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP5130.156B-000, subject to availability and destination.
