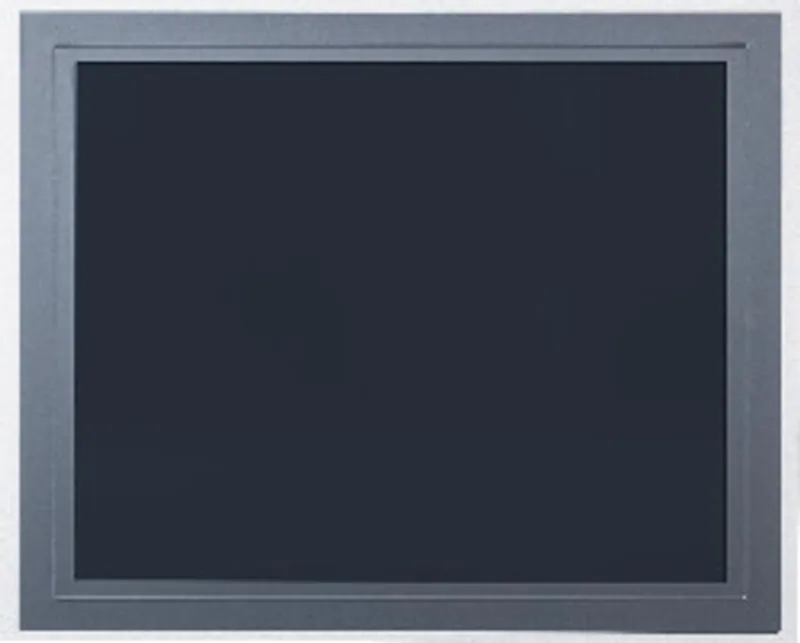

B&R 5AP5120.1906-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panels |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 7300 kg |
Shipping & availability
When can 5AP5120.1906-000 be shipped?
5AP5120.1906-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP5120.1906-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP5120.1906-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP5120.1906-000, subject to availability and destination.
19.0" TFT SXGA color displaySingle-touch (analog resistive)Flexible swing arm mounting or VESAIP65 protection with mounting unit 5ACCMA00.000x-000IP54 protection with mounting unit 5ACCMA00.010x-000IP20 protection with mounting unit 5ACCMA01.0100-000 Automation Panel 19.0" SXGA TFT - 1280 x 1024 pixels (5:4) - Single-touch (analog resistive) - Swing arm mounting - Landscape format - For PPC2100 / PPC2200 / link modules
Specifications
Specifications
| B&R ID code | 0xE9CC |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267 Industrial control equipment |
| Type | LED |
| Diagonal | 19.0" |
| Colors | 16.7 million |
| Resolution | SXGA, 1280 x 1024 pixels |
| Contrast | 1500:1 |
| Horizontal | Direction R = 85° / Direction L = 85° |
| Vertical | Direction U = 85° / Direction D = 85° |
| Brightness (dimmable) | Typ. 35 to 350 cd/m² |
| Half-brightness time | 70,000 h |
| Technology | Analog, resistive |
| Controller | B&R, serial, 12-bit |
| Transmittance | 81% ±3% |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP65 with mounting unit 5ACCMA00.000x-000 IP54 with mounting unit 5ACCMA00.010x-000 |
| Degree of protection per UL 50 | Type 4X indoor with mounting unit 5ACCMA00.000x-000 Type 1 with mounting unit 5ACCMA00.010x-000 |
| Material | Polyester |
| Coating | White aluminum |
| Frame | Aluminum, coated |
| Dark border color around display | RAL 7024 |
| Width | 461.2 mm |
| Height | 372 mm |
| Weight | 7300 g |
