B&R 5ACCMA01.0100-000
AP5000 VESA mounting unit IP10/IP20
- MPN
- 5ACCMA01.0100-000
- Category
- Mounting units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

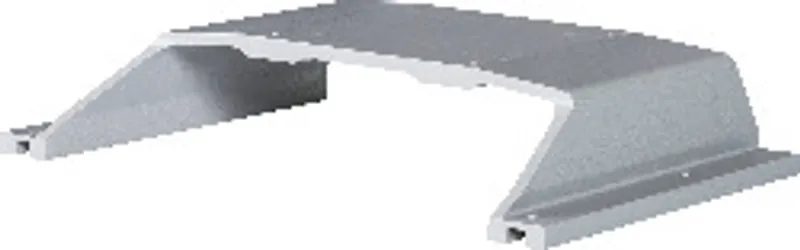

What is the B&R 5ACCMA01.0100-000?
AP5000 VESA mounting unit IP10/IP20 - IP20 with 5AP5120.*-000 - IP10 with 5AP5130.*-000, 5AP5230.*-000
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP10 (note: Only with proper installation on the panel.) |
| Degree of protection per UL 50 | Type 1 (note: Only with proper installation on the panel.) |
Mechanical properties
| Housing – Material | Aluminum, coated |
| Housing – Coating | White aluminum (similar to RAL 9006) |
| Dimensions – Width | 270 mm |
| Dimensions – Height | 189 mm |
| Dimensions – Depth | 51 mm |
| Installation | VESA |
| Weight | 900 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5ACCMA01.0100-000: frequently asked questions
When can 5ACCMA01.0100-000 be shipped?
5ACCMA01.0100-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCMA01.0100-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCMA01.0100-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCMA01.0100-000, subject to availability and destination.
