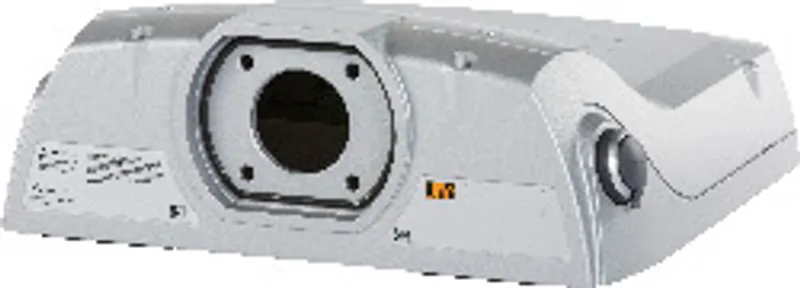

B&R 5ACCMA00.0002-000

AP5000 swing arm mounting unit, 2x rear USB interface

MPN: 5ACCMA00.0002-000
Category: Mounting units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5ACCMA00.0002-000?

AP5000 swing arm mounting unit - 2x rear USB interface

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment

Interfaces

USB – Quantity	2
USB – Type	USB 2.0
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (30 Mbit/s)
USB – Current-carrying capacity	Max. 500 mA

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2
Degree of protection per EN 60529	IP65 (note: Only with proper installation on the panel and proper installation on the swing arm.)
Degree of protection per UL 50	Type 4X indoor (note: Only with proper installation on the panel and proper installation on the swing arm.)

Mechanical properties

Housing – Material	Aluminum, coated
Housing – Coating	White aluminum (similar to RAL 9006)
Dimensions – Width	280 mm
Dimensions – Height	259 mm
Dimensions – Depth	96 mm
Installation	Swing arm (with flange)
Weight	2500 g

Accessories

Optional accessories (3)

5ACCFL00.0200-000	Flanges — Adapter for Rittal coupling CP40 (steel) The adapter is installed on the mounting unit and designed for the installation of Rittal coupling…
5ACCFL00.0100-000	Flanges — AP5000 flange - Swivel-tilt flange for swing arm - For swing arm mounting unit
5ACCFL00.0000-000	Flanges — Rotary flange; Range of rotation ±150°; Stepless adjustment of range of rotation; For swing arm systems with 48 mm shaft diameter The rotar…
