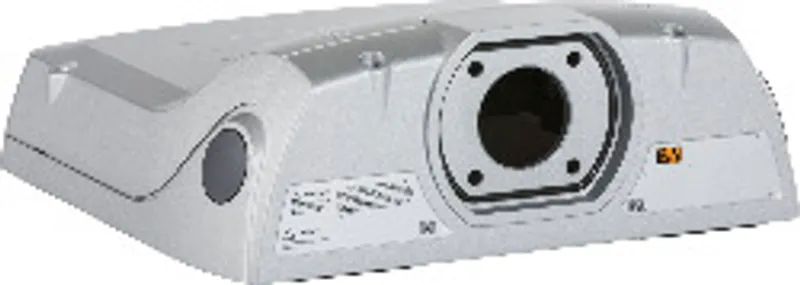

B&R 5ACCMA00.0000-000
AP5000 swing arm mounting unit
- MPN
- 5ACCMA00.0000-000
- Category
- Mounting units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5ACCMA00.0000-000?
AP5000 swing arm mounting unit
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP65 (note: Only with proper installation on the panel and proper installation on the swing arm.) |
| Degree of protection per UL 50 | Type 4X indoor (note: Only with proper installation on the panel and proper installation on the swing arm.) |
Mechanical properties
| Housing – Material | Aluminum, coated |
| Housing – Coating | White aluminum (similar to RAL 9006) |
| Dimensions – Width | 280 mm |
| Dimensions – Height | 259 mm |
| Dimensions – Depth | 96 mm |
| Installation | Swing arm (with flange) |
| Weight | 2500 g |
Accessories
Optional accessories (3)
| 5ACCFL00.0200-000 | Flanges — Adapter for Rittal coupling CP40 (steel) The adapter is installed on the mounting unit and designed for the installation of Rittal coupling… |
| 5ACCFL00.0100-000 | Flanges — AP5000 flange - Swivel-tilt flange for swing arm - For swing arm mounting unit |
| 5ACCFL00.0000-000 | Flanges — Rotary flange; Range of rotation ±150°; Stepless adjustment of range of rotation; For swing arm systems with 48 mm shaft diameter The rotar… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5ACCMA00.0000-000: frequently asked questions
When can 5ACCMA00.0000-000 be shipped?
5ACCMA00.0000-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCMA00.0000-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCMA00.0000-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCMA00.0000-000, subject to availability and destination.
