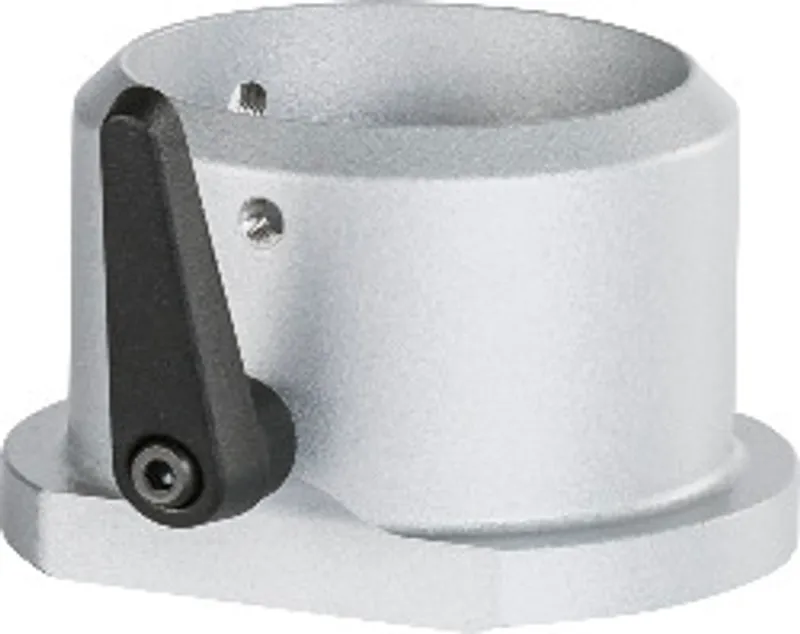

What is the B&R 5ACCFL00.0000-000?
Rotary flange
Range of rotation ±150°
Stepless adjustment of range of rotation
For swing arm systems with 48 mm shaft diameter
The rotary flange is installed on the mounting unit and designed for swing arm systems with 48 mm shaft diameter. The range of rotation is -150° to +150°.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Mechanical properties
| Dimensions – Height | 55 mm |
| Dimensions – Diameter | 75 mm (outer diameter); 48.5 mm (inner diameter) |
| Material | Aluminum (similar to RAL 9006), coated |
| Weight | 530 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5ACCFL00.0000-000: frequently asked questions
When can 5ACCFL00.0000-000 be shipped?
5ACCFL00.0000-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCFL00.0000-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCFL00.0000-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCFL00.0000-000, subject to availability and destination.
