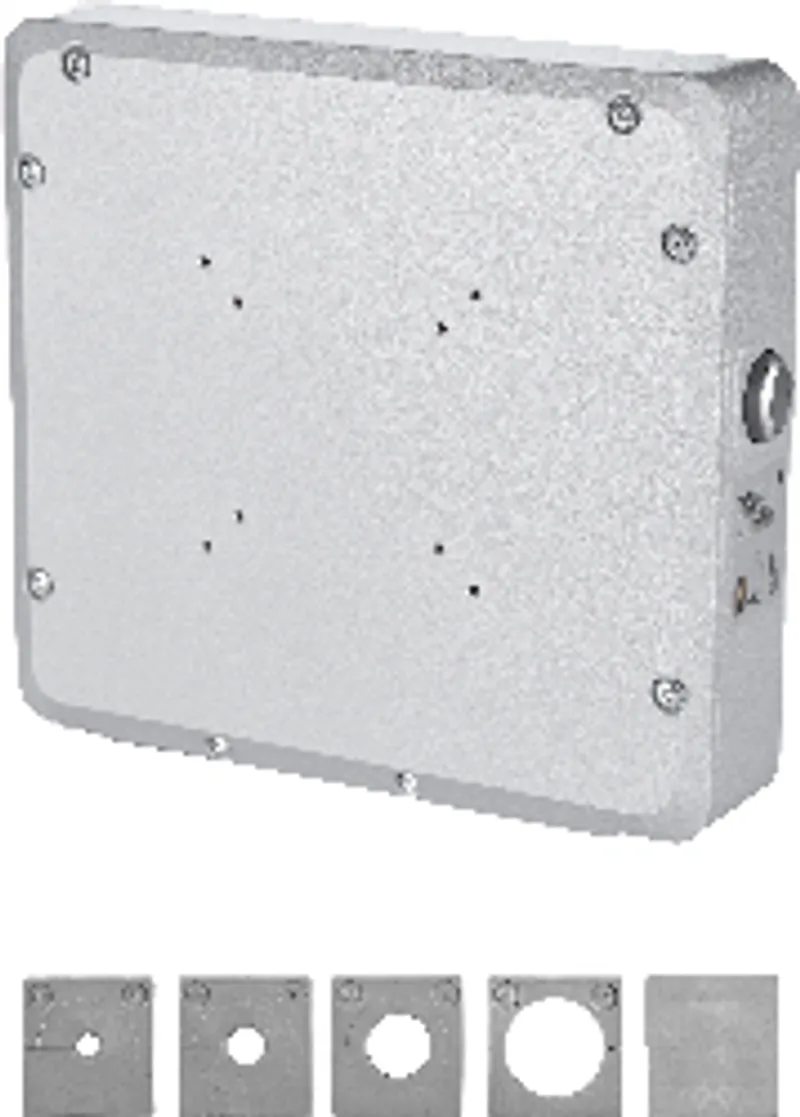

B&R 5ACCMA00.0101-000
HMI VESA IP54 mounting unit w/USB
- MPN
- 5ACCMA00.0101-000
- Category
- Mounting units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCMA00.0101-000?
HMI VESA IP54 mounting unit w/USB - Leak tightness is only provided with suitable cable grommets.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (30 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP54 (note: Only with proper installation on the panel.) |
| Degree of protection per UL 50 | Type 1 (note: Only with proper installation on the panel.) |
Mechanical properties
| Housing – Material | Aluminum, coated |
| Housing – Coating | White aluminum (similar to RAL 9006) |
| Dimensions – Width | 280 mm |
| Dimensions – Length | 259 mm |
| Dimensions – Height | 60.25 mm |
| Installation | VESA |
| Weight | 2.6 kg |
Accessories
Required accessories (order separately)
| 5ACCCG00.1415-000 | cable grommets — Cable grommet 14-15 mm |
| 5ACCCG00.1314-000 | cable grommets — Cable grommet 13-14 mm |
| 5ACCCG00.1213-000 | cable grommets — Cable grommet 12-13 mm |
| 5ACCCG00.1112-000 | cable grommets — Cable grommet 11-12 mm |
| 5ACCCG00.1011-000 | cable grommets — Cable grommet 10-11 mm |
| 5ACCCG00.0910-000 | cable grommets — Cable grommet 9-10 mm |
| 5ACCCG00.0809-000 | cable grommets — Cable grommet 8-9 mm |
| 5ACCCG00.0708-000 | cable grommets — Cable grommet 7-8 mm |
| 5ACCCG00.0607-000 | cable grommets — Cable grommet 6-7 mm |
| 5ACCCG00.0506-000 | cable grommets — Cable grommet 5-6 mm |
| 5ACCCG00.0405-000 | cable grommets — Cable grommet 4-5 mm |
| 5ACCCG00.0304-000 | cable grommets — Cable grommet 3-4 mm |
| 5ACCCG00.0000-000 | cable grommets — Blanking grommet |
Optional accessories (1)
| 5ACCHP00.0004-000 | Heatpipe — AP5000 heat pipe - For PPC2100 (5PPC2100.BYxx-002) - For VESA mounting unit |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5ACCMA00.0101-000: frequently asked questions
When can 5ACCMA00.0101-000 be shipped?
5ACCMA00.0101-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCMA00.0101-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCMA00.0101-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCMA00.0101-000, subject to availability and destination.
