Interface options Parts
Compare Interface options
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Power consumption | Weight | Diagnostics – Data transfer | POWERLINK – Quantity |
|---|---|---|---|---|

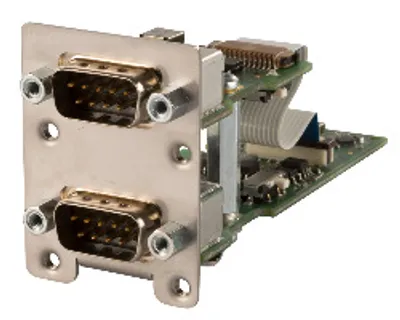

| 5ACCIF02.ISS0-000 | 1.5 W | Approx. 65 g | — | — |

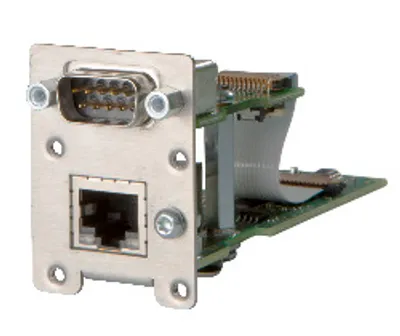

| 5ACCIF02.CANE-000 | 1.5 W | Approx. 60 g | Yes, using LED status indicator | — |

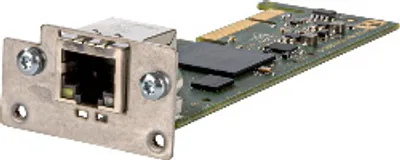

| 5ACCIF04.FPLK-000 | 1.5 W | Approx. 25 g | Yes, using LED status indicator | 1 |

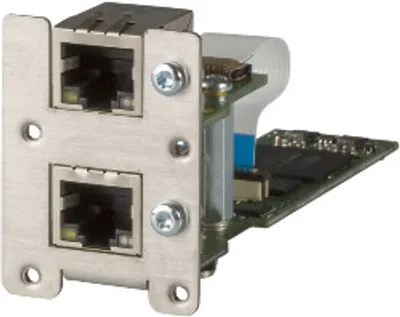

| 5ACCIF02.FPLK-000 | 2 W | Approx. 55 g | — | 1 (integrated 2-port hub) |

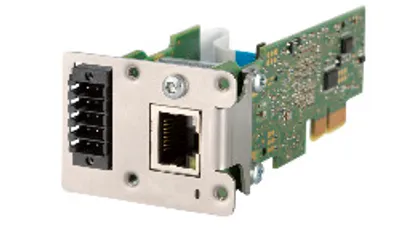

| 5ACCIF02.FPLS-000 | 1.75 W | Approx. 55 g | Yes, using LED "Status/Error" | 1 |

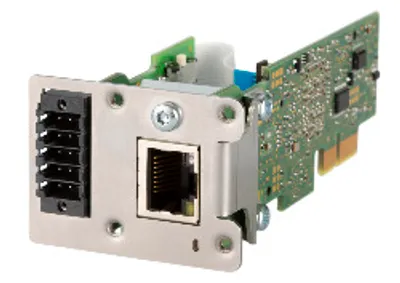

| 5ACCIF02.FPSC-000 | 2 W | Approx. 55 g | Yes, using LED "Status/Error" | 1 |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
