Interface options Parts

B&R

Expansion option - 4x Ethernet 10/100/1000 Mbit/s to M12 - With Intel I210

B&R

Interface card, 1x RS485 interface, 1x CAN interface

B&R

Interface card, 2x RS422/RS485 interface

B&R

1x POWERLINK interface managing or controlled node2x CAN…

B&R

1x POWERLINK interface for real-time communication

B&R

1x POWERLINK interface managing or controlled node1x RS232…

B&R

1x POWERLINK interface managing or controlled node1x CAN…

B&R

1x CAN bus master interface

B&R

1x POWERLINK interface managing or controlled node1x RS232…

B&R

1x POWERLINK interface managing or controlled node1x CAN…

Compare Interface options

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	LEDs	COM – Quantity	POWERLINK – Quantity	Power consumption
5ACCIF01.FPCS-000	L1, L2, L3	1	1	1.75 W

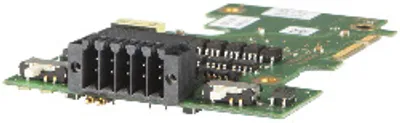

5ACCIF01.FSS0-000	L2, L3	2	—	1 W
5ACCIF01.FPCC-000	L1, L2, L3	—	1	2 W

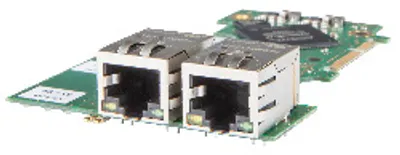

5ACCIF01.FPLK-000	L1, L2, L3	—	1 (integrated 2-port hub)	1.75 W

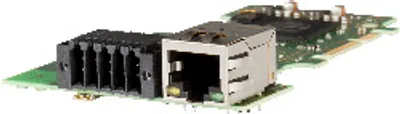

5ACCIF01.FPLS-001	L2, L3	1	1	1.5 W

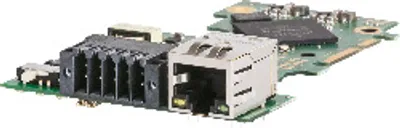

5ACCIF01.FPSC-001	L1, L2, L3	1	1	2 W

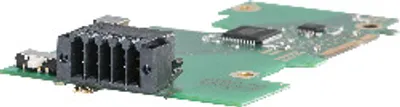

5ACCIF01.ICAN-000	L1	—	—	0.5 W
5ACCIF01.FPLS-000	L2, L3	1	1	1.5 W
5ACCIF01.FPSC-000	L1, L2, L3	1	1	1.75 W

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Pollution degree per EN 61131-2	Pollution degree 2
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
