B&R 4PP480.1043-75
Power Panel PP480, 10.4"
- MPN
- 4PP480.1043-75
- Category
- Power Panel 400 embedded
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 4PP480.1043-75?

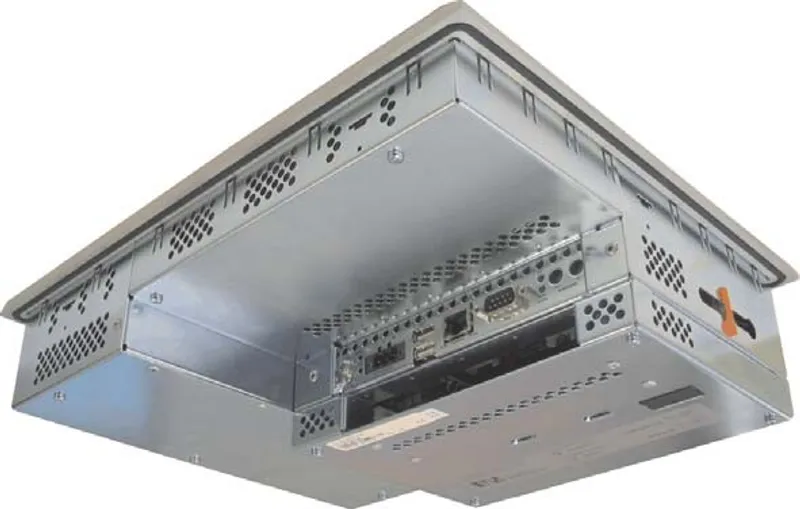

Power Panel PP480, 10.4" VGA color TFT display with touch screen (resistive), 10 soft keys and 12 function keys, 1 aPCI slots, 128 MB SDRAM, 512 kB SRAM CompactFlash slot (type I), ETH 10/100, RS232, 2x USB, IP65 protection (front), 24 VDC (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately).
Specifications
General information
| Battery – Buffer time | 10 min |
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 3 years |
| Battery – Removable | Yes, accessible from the outside |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Power/User, CF |
| B&R ID code | 0x23C3 |
| Power button | Yes |
| Reset button | Yes |
Controller
| Processor – Type | Geode LX800 |
| Processor – Clock frequency | 500 MHz |
| Processor – L1 cache | 128 kB (64 kB I-cache / 64 kB D-cache) |
| Processor – L2 cache | 128 kB |
| Processor – Expanded command set | MMX technology, 3D Now |
| Processor – Floating point unit (FPU) | Yes |
| Real-time clock – Accuracy | At 25°C: Typ. 30 ppm (2.5 seconds) per day |
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX |
| Power failure logic – Buffer time | 10 ms |
| Graphics – Controller | Geode LX800 |
| Graphics – Memory | 8 MB shared memory (reserved by main memory) |
| SRAM – Size | 512 kB |
| SRAM – Battery-backed | Yes |
| Bootloader | Automation Runtime |
| Flash | 2 MB (for firmware) |
| Cooling | Passive via heat sink |
| Mode/Node switches | 2, 16 positions each |
| Watchdog | MTCX |
Display
| Viewing angles – Horizontal | Direction R / Direction L = 70° |
| Viewing angles – Vertical | Direction U = 45° / Direction D = 35° |
| Backlight – Type | CCFL |
| Backlight – Brightness | 450 cd/m² |
| Backlight – Half-brightness time | 55,000 h |
| Filter glass – Transmittance | - |
| Filter glass – Anti-glare coating | - |
| Touch screen – Type | AMT |
| Touch screen – Technology | Analog, resistive |
| Touch screen – Controller | Elo, serial, 12-bit |
| Touch screen – Transmittance | Up to 80% ±5% |
| Type | TFT color |
| Diagonal | 10.4" (264 mm) |
| Colors | 262,144 (note: The actual number of available colors depends on the graphics memory, configured graphics mode and graphics driver being used.) |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 600:1 |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | 9-pin male DSUB connector |
| COM1 – UART | 16C550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 – Type | Type I |
| USB – Quantity | 2 |
| USB – Type | USB 1.1, USB 2.0 (note: The actual value depends on the operating system or driver used.) |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA per connection |
| Ethernet – Quantity | 1 |
| Ethernet – Controller | Intel 82551ER |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
Keys
| LED luminous intensity – yellow | Typ. 12 mcd |
| Function keys | 12 with LED (yellow) |
| Soft keys | 10 with LED (yellow) |
| System keys | No |
| Service life | >1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force |
Slots
| aPCI slots | 1 (note: For information regarding available aPCI interface modules, see the B&R System 2005 user's manual.) |
Electrical properties
| Nominal voltage | 18 to 30 VDC |
| Nominal current | 0.84 A |
| Bleeder resistance | 0 Ω |
| Inrush current | Max. 2.8 A |
| Power consumption | Typ. 20 W |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card, connected aPCI module or optional aPCI cover); Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 70°C |
| Temperature – Transport | -20 to 70°C |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Housing – Material | Metal |
| Front – Material | Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Light background color | Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Dark border color around display | Similar to Pantone 432CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Dark gray keys color | Similar to Pantone 431CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Orange keys color | Similar to Pantone 151CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Color slide-in labels | Similar to Pantone 429CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Frame | Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Design | Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Gasket | Flat gasket around display front (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 323 mm |
| Dimensions – Height | 260 mm |
| Dimensions – Depth | 86 mm |
| Weight | Approx. 3900 g (without aPCI interface module) |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
