B&R 4PP451.0571-45

Name: B&R 4PP451.0571-45
Brand: B&R
SKU: 4PP451.0571-45

MPN: 4PP451.0571-45 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Power Panel 400 embedded
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2400 kg

Shipping & availability

When can 4PP451.0571-45 be shipped?

4PP451.0571-45 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4PP451.0571-45 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4PP451.0571-45 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PP451.0571-45, subject to availability and destination.

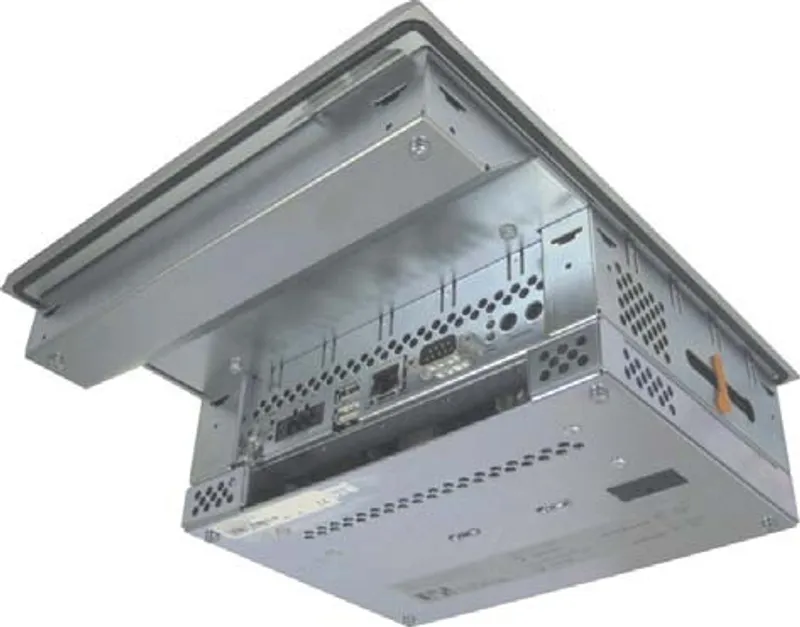

Power Panel PP451, 5.7" QVGA monochrome LCD display, 6 soft keys, 16 function keys and 20 system keys, 1 aPCI slot, 128 MB SDRAM, 512 kB SRAM CompactFlash slot (type I), ETH 10/100, RS232, 2x USB, IP65 protection (front), 24 VDC (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately).

Specifications

LEDs	Power/User, CF
B&R ID code	0xA530
Type	USB 1.1, USB 2.0
Service life	>1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force
Removable	Yes, accessible from the outside
Buffer time	10 ms
Variant	Type A
Power button	Yes
Reset button	Yes
CE	Yes
UKCA	Yes
UL	cULus E115267 Industrial control equipment
Bootloader	Automation Runtime
Clock frequency	500 MHz
L1 cache	128 kB (64 kB I-cache / 64 kB D-cache)
L2 cache	128 kB
Expanded command set	MMX technology, 3D Now
Floating point unit (FPU)	Yes
Flash	2 MB (for firmware)
Cooling	Passive via heat sink
Mode/Node switches	2, 16 positions each
Watchdog	MTCX
Accuracy	At 25°C: Typ. 30 ppm (2.5 seconds) per day
Battery-backed	Yes
Controller	Intel 82551ER
Memory	8 MB shared memory (reserved by main memory)
Size	512 kB
Diagonal	5.7" (144 mm)
Colors	8 shades of gray
Resolution	QVGA, 320 x 240 pixels
Contrast	25:1
Horizontal	Direction R / Direction L = 80°
Vertical	Direction U / Direction D = 80°
Brightness	150 cd/m²
Half-brightness time	40,000 h
Transmittance	-
Anti-glare coating	On both sides
Technology	-
UART	16C550-compatible, 16-byte FIFO buffer
Max. baud rate	100 Mbit/s
Quantity	1
Transfer rate	10/100 Mbit/s
Current-carrying capacity	Max. 500 mA per connection
Function keys	16 with LED (yellow)
Soft keys	6 with LED (yellow)
System keys	Numeric keys, cursor block
Yellow	Typ. 12 mcd
aPCI slots	1
Nominal voltage	18 to 30 VDC
Nominal current	0.63 A
Bleeder resistance	0 Ω
Inrush current	Max. 1.2 A
Power consumption	Typ. 15 W
Galvanic isolation	Yes
Degree of protection per EN 60529	Back: IP20 (only with connected CF card, connected aPCI module or optional aPCI cover) Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water
Operation	Max. 3000 m
Storage	30 g, 15 ms
Transport	30 g, 15 ms
Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Material	Polyester
Frame	Aluminum, naturally anodized
Design	Gray
Light background color	Similar to Pantone 427CV
Dark border color around display	Similar to Pantone 432CV
Dark gray keys color	Similar to Pantone 431CV
Orange keys color	Similar to Pantone 151CV
Color slide-in labels	Similar to Pantone 429CV
Gasket	Flat gasket around display front
Width	212 mm
Height	245 mm
Depth	76 mm
Weight	2400 g
