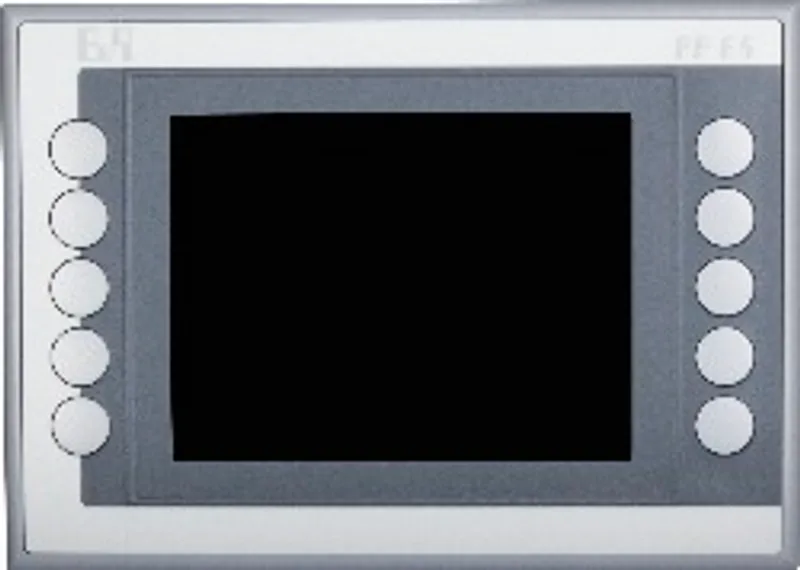

B&R 4PP065.0571-P74F
Power Panel PP65, 5.7"
- MPN
- 4PP065.0571-P74F
- Category
- Power Panel 65
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 4PP065.0571-P74F?
Power Panel PP65, 5.7" QVGA color TFT display with touch screen (resistive), 10 function keys, 128 MB DRAM, 232 kB SRAM, CompactFlash slot, 1x ETH 10/100, 1x POWERLINK, 2x USB, IP65 protection (front), order application memory separately! Order terminal block 0TB103 separately!
Specifications
General information
| LEDs – Quantity | 4 |
| LEDs – CF (CompactFlash) | Orange |
| LEDs – State | Red/Green |
| LEDs – EPL (POWERLINK) | Red/Green |
| LEDs – User | Green |
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: Typical service life (at 50% buffer operation: 25°C when device off, 50°C when device on). Maximum service life in 24-hour operation (no buffer): 6 years at 25°C or 5 years at 50°C. Maximum service life when the device is switched off: 2 years at 25°C or 1 year at 50°C.) |
| Battery – Removable | Yes, accessible from the outside |
| Battery – Variant | Lithium ion |
| Backup capacitor – Buffer time | 10 min |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xB9BD |
Controller
| Bootloader, operating system – PP65 supported starting with version | Automation Runtime, A3.01 |
| Processor – Type | Geode LX800, 32-bit x86 |
| Processor – Clock frequency | 500 MHz |
| Processor – L1 cache | 128 kB (64 kB I-cache / 64 kB D-cache) |
| Processor – L2 cache | 128 kB |
| Processor – Expanded command set | MMX technology, 3D Now |
| Processor – Floating point unit (FPU) | Yes |
| Real-time clock – Accuracy | At 25°C: Typ. 30 ppm (2.5 seconds) per day (note: At max. specified ambient temperature: Typ. 50 ppm (4 s) - worst case 100 ppm (8 s).) |
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended.) |
| Power failure logic – Buffer time | 10 ms |
| Graphics – Controller | Geode LX800 |
| Graphics – Memory | 8 MB shared memory (reserved by RAM) |
| Standard memory – RAM | 128 MB DDR SDRAM |
| Standard memory – User RAM | 232 kB SRAM |
| Flash | 4 MB (for firmware) |
| Cooling | Passive via heat sink |
| Mode/Node switches | 2, 16 positions each |
| Remanent variables | 32 kB |
| Watchdog | MTCX (note: Maintenance Controller Extended.) |
| PP65 Compact IF slot | 1 |
Display
| Viewing angles – Horizontal | Direction R / Direction L = 60° |
| Viewing angles – Vertical | Direction U = 65° / Direction D = 50° |
| Backlight – Brightness | 500 cd/m² |
| Backlight – Half-brightness time | 50,000 h |
| Touch screen – Technology | Analog, resistive |
| Touch screen – Controller | B&R, 12-bit |
| Touch screen – Transmittance | 70% ±10% |
| Type | TFT color |
| Diagonal | 5.7" (144 mm) |
| Colors | 262,144 |
| Resolution | QVGA, 320 x 240 pixels |
| Contrast | 350:1 |
| Screen rotation | Yes (see section "Screen rotation" in chapter "Installation") |
Interfaces
| CompactFlash slot 1 – Quantity | 1 |
| CompactFlash slot 1 – Type | Type I |
| CompactFlash slot 1 – Execution | Primary IDE device |
| USB – Quantity | 2 |
| USB – Type | USB 2.0 |
| USB – Execution | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA per connection |
| Ethernet – Quantity | 1 |
| Ethernet – Controller | Intel 82551ER |
| Ethernet – Execution | Shielded RJ45 port (10/100BASE-T) |
| Ethernet – Transfer rate | 10/100 Mbit/s |
| Ethernet – Max. baud rate | 100 Mbit/s |
| Ethernet – Cables | S/STP (category 5) |
| Ethernet – LED status indicators | Link/Activity |
| POWERLINK – Quantity | 1 |
| POWERLINK – Fieldbus | POWERLINK (V1/V2) |
| POWERLINK – Type | Type 4Communication / POWERLINK / General information / Hardware - IF/LS"."> (note: See Automation Help in Automation Studio under) |
| POWERLINK – Execution | Shielded RJ45 port |
| POWERLINK – Transfer rate | 100 Mbit/s |
| POWERLINK – Transfer | 100BASE-T (ANSI/IEEE 802.3) |
| POWERLINK – Status LED | Link/Activity |
| POWERLINK – Line length | Max. 100 m between two stations (segment length) |
Keys
| Execution | Membrane keypad with metallic snap-action disks |
| Total keys | 10 membrane keys |
| Function keys | 10 (can be labeled with slide-in labels) |
| Service life | >10 6 actuations at 1 ±0.3 to 3 ±0.3 N actuating force |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 0.45 A |
| Inrush current | Max. 2.8 A |
| Power consumption | Typ. 10 W |
| Galvanic isolation | No |
Operating conditions
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card); Front: IP65 / NEMA 250 type 4X, protected against dust and hose-directed water |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 70°C |
| Temperature – Transport | -20 to 70°C |
| Relative humidity – Operation | 10 to 90%, non-condensing |
| Relative humidity – Storage | T ≤ 40°C: 5 to 90%, non-condensing; T > 40°C: < 90%, non-condensing |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
Mechanical properties
| Housing – Material | Polyester |
| Dimensions – Width | 203 mm |
| Dimensions – Height | 145 mm |
| Dimensions – Depth | 56.5 mm |
| Front | Multi-layered panel overlay with insertion slots for keypad labels |
| Weight | 0.75 kg (note: Weight including fasteners and battery (46.5 g) but without an interface module.) |
No matching specifications
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5CFCRD.2048-06 | CompactFlash cards — 2 GBSLC flash CompactFlash card |
| 0CFCRD.8192E.02 | CompactFlash cards — CompactFlash 8 GB extended temp. |
| 0CFCRD.4096E.02 | CompactFlash cards — CompactFlash 4096 MB extended temp. |
| 0CFCRD.2048E.02 | CompactFlash cards — CompactFlash 2048 MB extended temp. |
| 0CFCRD.1024E.02 | CompactFlash cards — CompactFlash 1024 MB extended temp. |
| 0CFCRD.0512E.02 | CompactFlash cards — CompactFlash 512 MB extended temp. |
| 0CFCRD.016GE.02 | CompactFlash cards — CompactFlash 16 GB extended temp. |
Optional accessories (8)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
| 4PP065.IF33-1 | Interface modules — PP65 interface module, 2 CAN interfaces electrically isolated and network-capable, order terminal block 0TB704 separately! |
| 4PP065.IF24-1 | Interface modules — PP65 interface module, 1 PROFIBUS DP slave interface electrically isolated and network-capable, 1 RS232 interface, 1 RS422/RS485 interface,… |
| 4PP065.IF23-1 | Interface modules — PP65 interface module, 1 RS232 interface, 1 RS485/RS422 interface, RS422 electrically isolated, RS485 electrically isolated and network-cap… |
| 4PP065.IF10-1 | Interface modules — PP65 interface module, 1 RS232 interface |
| 4A0075.00-000 | Legend strips — 5 DIN A4 slide-in label templates 16 fields for a total of 40 PP65 5.7" devices, CorelDraw available for download online. |
| 5MMUSB.2048-01 | USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M… |
