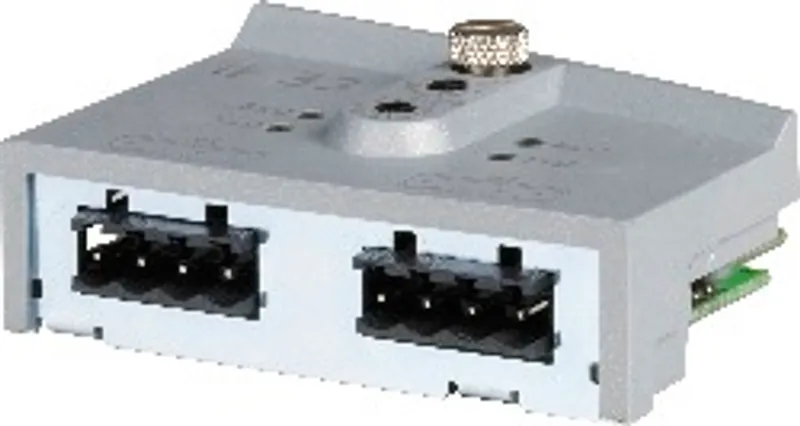

B&R 4PP045.IF33-1

Communication module, 2x CAN bus

MPN: 4PP045.IF33-1
Category: Interface modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 4PP045.IF33-1?

PP45 interface module, 2 CAN interfaces isolated and network-capable, order 0TB704 terminal block separately.

Specifications

General Information

Communication module

2 x CAN bus

Interfaces

Interfaces IF1 and IF2 – Type	CAN bus
Interfaces IF1 and IF2 – Design	2 x 4-pin multipoint connector
Interfaces IF1 and IF2 – Maximum transfer rate	1000 kBit/s

General information

Status indicators	Data transfer for IF1 and IF2
Diagnostics – Data transfer	Yes, with status LEDs
Electrical isolation – PLC - IF1/IF2	Yes
Electrical isolation – IF1 - IF2	Yes
Certification	CE, C-UL-US, GOST-R
Operating temperature	0°C to +50°C
Relative humidity	10 to 90%, non-condensing
Protection type	IP20
Temperature	-25°C to +70°C
Relative humidity	10 to 90%, non-condensing

Mechanical characteristics

Slot	PP45 insert

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file DXF/STEP 4PP045.IFxx-1ZIP · 3 MB · 1.0 (12/10/2008)

4PP045.IF33-1: frequently asked questions

When can 4PP045.IF33-1 be shipped?

4PP045.IF33-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4PP045.IF33-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4PP045.IF33-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PP045.IF33-1, subject to availability and destination.
