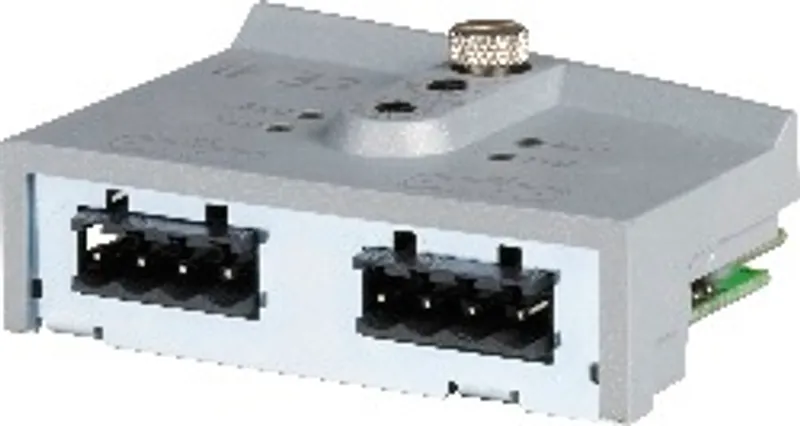

B&R 4PP065.IF33-1

Communication module, 2x CAN bus

MPN: 4PP065.IF33-1
Category: Interface modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 4PP065.IF33-1?

PP65 interface module, 2 CAN interfaces electrically isolated and network-capable, order terminal block 0TB704 separately!

Specifications

Short description

Communication module

2x CAN bus

General information

Diagnostics – Data transfer	Yes, using LED status indicators
Electrical isolation – IF1 - IF2	Yes
Electrical isolation – PLC - IF1	Yes
Electrical isolation – PLC - IF2	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xB0BD
Status indicators	Data transfer for IF1 and IF2

Interfaces

Interface IF1 – Bus length ≤25 m	1 Mbit/s
Interface IF1 – Bus length ≤60 m	500 kbit/s
Interface IF1 – Bus length ≤200 m	250 kbit/s
Interface IF1 – Bus length ≤1000 m	50 kbit/s
Interface IF1 – Type	CAN bus
Interface IF1 – Variant	1x 4-pin male multipoint connector
Interface IF1 – Max. distance	1000 m
Interface IF1 – Max. transfer rate	1000 kbit/s
Interface IF1 – Network-capable	Yes
Interface IF1 – Terminating resistor	Integrated in module, switchable
Interface IF1 – Controller	SJA 1000
Interface IF2 – Bus length ≤25 m	1 Mbit/s
Interface IF2 – Bus length ≤60 m	500 kbit/s
Interface IF2 – Bus length ≤200 m	250 kbit/s
Interface IF2 – Bus length ≤1000 m	50 kbit/s
Interface IF2 – Type	CAN bus
Interface IF2 – Variant	1x 4-pin male multipoint connector
Interface IF2 – Max. distance	1000 m
Interface IF2 – Max. transfer rate	1000 kbit/s
Interface IF2 – Network-capable	Yes
Interface IF2 – Terminating resistor	Integrated in module, switchable
Interface IF2 – Controller	SJA 1000

Operating conditions

Degree of protection

IP20

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	10 to 90%, non-condensing
Relative humidity – Storage	10 to 90%, non-condensing
Relative humidity – Transport	10 to 90%, non-condensing

Mechanical properties

Weight	46 g
Slot	Slot in PP65
Torque for mounting screw	Max. 0.6 Nm

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Optional accessories (1)

0AC913.93

Infrastructure components — Bus adapter, CAN bus, 2 CAN bus interfaces, including 03 m attachment cable (TB704)

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file DXF/STEP 4PP065.IFxx-1ZIP · 2 MB · 1.0 (11/19/2010)

Certificates (1)

UL61010-1 Certificate of Compliance C70, T30 SeriesPDF · 336 KB · 1.2 (11/06/2018)
