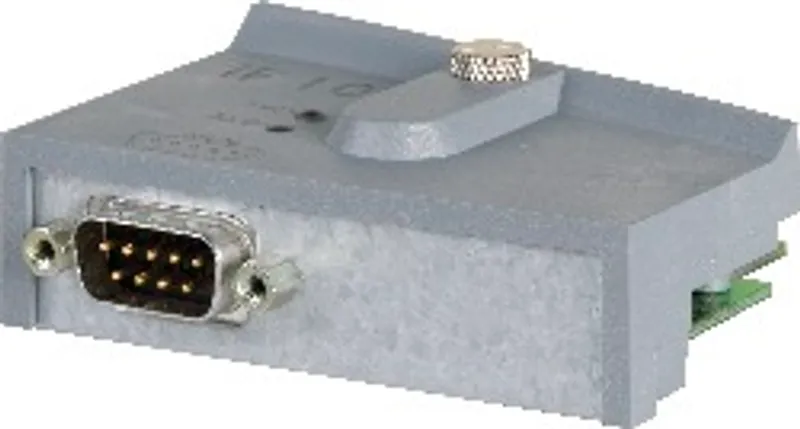

B&R 4PP065.IF10-1

Communication module, 1x RS232

MPN: 4PP065.IF10-1
Category: Interface modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 4PP065.IF10-1?

PP65 interface module, 1 RS232 interface

Specifications

Short description

Communication module

1x RS232

General information

Diagnostics – Data transfer	Yes, using LED status indicators
Electrical isolation – PLC - IF1	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xB0B0
Status indicators	Data transfer

Interfaces

Interface IF1 – Data bits	5 to 8
Interface IF1 – Parity	Yes / No / Even / Odd
Interface IF1 – Stop bits	1 / 2
Interface IF1 – Type	RS232
Interface IF1 – Variant	9-pin male DSUB connector
Interface IF1 – Input filter / Protective circuit	Yes
Interface IF1 – Max. distance	15 m / 19,200 bit/s
Interface IF1 – Max. transfer rate	115.2 kbit/s
Interface IF1 – Network-capable	No
Interface IF1 – FIFO buffer	16 bytes in the transmit and receive directions
Interface IF1 – Handshake lines	RTS, CTS
Interface IF1 – Controller	UART type 16C550 compatible

Operating conditions

Degree of protection

IP20

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	10 to 90%, non-condensing
Relative humidity – Storage	10 to 90%, non-condensing
Relative humidity – Transport	10 to 90%, non-condensing

Mechanical properties

Weight	49 g
Slot	Slot in PP65
Torque for mounting screw	Max. 0.6 Nm

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file DXF/STEP 4PP065.IFxx-1ZIP · 2 MB · 1.0 (11/19/2010)

Certificates (1)

UL61010-1 Certificate of Compliance C70, T30 SeriesPDF · 336 KB · 1.2 (11/06/2018)

4PP065.IF10-1: frequently asked questions

When can 4PP065.IF10-1 be shipped?

4PP065.IF10-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4PP065.IF10-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4PP065.IF10-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PP065.IF10-1, subject to availability and destination.
