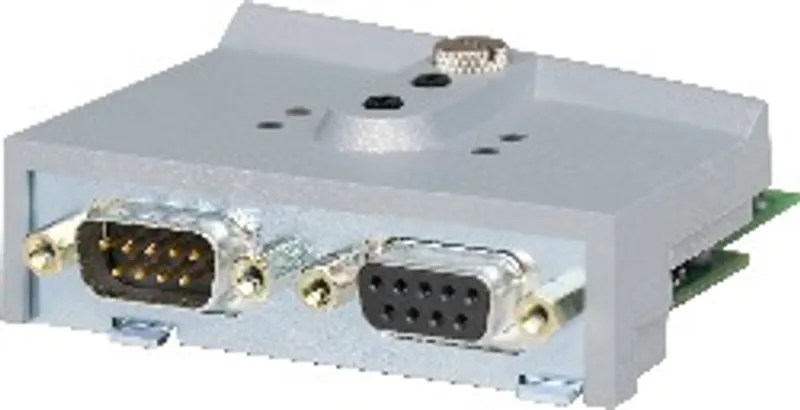

B&R 4PP065.IF24-1
Communication module, 1x RS232/RS422/RS485
- MPN
- 4PP065.IF24-1
- Category
- Interface modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 4PP065.IF24-1?
PP65 interface module, 1 PROFIBUS DP slave interface electrically isolated and network-capable, 1 RS232 interface, 1 RS422/RS485 interface, RS422/RS485: Electrically isolated and network-capable, RS232/RS422/RS485 designed in one connector
Specifications
Short description
| Communication module | 1x RS232/RS422/RS485, 1x PROFIBUS DP slave |
General information
| Diagnostics – Data transfer | Yes, using LED status indicators |
| Electrical isolation – PLC - IF1 | No |
| Electrical isolation – PLC - IF2 | Yes |
| Electrical isolation – PLC - IF3 | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xB0BC |
| Status indicators | Data transfer per interface |
Interfaces
| Interface IF1 – Data bits | 5 to 8 |
| Interface IF1 – Parity | Yes / No / Even / Odd |
| Interface IF1 – Stop bits | 1 / 2 |
| Interface IF1 – Type | RS232 |
| Interface IF1 – Variant | 9-pin DSUB connector (shared with IF2) |
| Interface IF1 – Input filter / Protective circuit | Yes |
| Interface IF1 – Max. distance | 15 m / 19,200 bit/s |
| Interface IF1 – Max. transfer rate | 115.2 kbit/s |
| Interface IF1 – Network-capable | No |
| Interface IF1 – FIFO buffer | 16 bytes in the transmit and receive directions |
| Interface IF1 – Handshake lines | RTS, CTS |
| Interface IF1 – Controller | UART type 16C550 compatible |
| Interface IF2 – Type | RS485/RS422 |
| Interface IF2 – Variant | 9-pin DSUB connector (shared with IF1) |
| Interface IF2 – Max. distance | 500 m |
| Interface IF2 – Max. transfer rate | 115.2 kbit/s |
| Interface IF2 – Network-capable | Yes |
| Interface IF2 – FIFO buffer | 16 bytes in the transmit and receive directions |
| Interface IF2 – Terminating resistor | Integrated in module, switchable |
| Interface IF2 – Controller | UART type 16C550 compatible |
| Interface IF3 – Bus length ≤100 m | 12 Mbit/s |
| Interface IF3 – Bus length ≤200 m | 1.5 Mbit/s |
| Interface IF3 – Bus length ≤400 m | 500 kbit/s |
| Interface IF3 – Bus length ≤1000 m | 187.5 kbit/s |
| Interface IF3 – Fieldbus | PROFIBUS DP slave |
| Interface IF3 – Type | RS485 |
| Interface IF3 – Variant | 9-pin female DSUB connector |
| Interface IF3 – Controller | ASIC SPC3 |
| Interface IF3 – RAM | 1.5 kB |
| Interface IF3 – Max. distance | 1000 m |
| Interface IF3 – Max. transfer rate | 12 Mbit/s |
| Interface IF3 – Network-capable | Yes |
| Interface IF3 – Bus terminating resistor | Integrated in module |
Operating conditions
| Degree of protection | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -25 to 70°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 10 to 90%, non-condensing |
| Relative humidity – Storage | 10 to 90%, non-condensing |
| Relative humidity – Transport | 10 to 90%, non-condensing |
Mechanical properties
| Weight | 65 g |
| Slot | Slot in PP65 |
| Torque for mounting screw | Max. 0.6 Nm |
No matching specifications
Accessories
Optional accessories (1)
| 0G1000.00-090 | Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
4PP065.IF24-1: frequently asked questions
When can 4PP065.IF24-1 be shipped?
4PP065.IF24-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4PP065.IF24-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4PP065.IF24-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PP065.IF24-1, subject to availability and destination.
