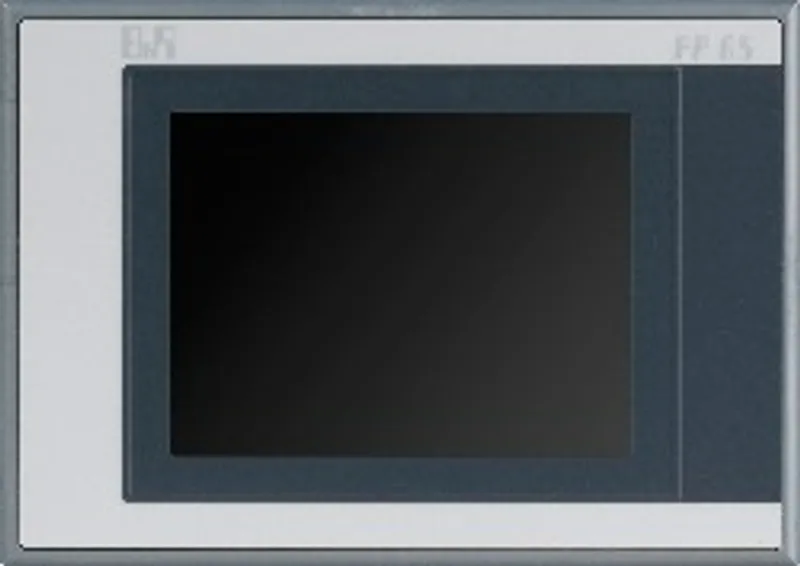

B&R 4PP065.0571-P74
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Power Panel 65 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.75 kg |
Shipping & availability
When can 4PP065.0571-P74 be shipped?
4PP065.0571-P74 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4PP065.0571-P74 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4PP065.0571-P74 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PP065.0571-P74, subject to availability and destination.
Power Panel PP65, 5.7" QVGA color TFT display with touch screen (resistive), 128 MB DRAM, 232 kB SRAM, CompactFlash slot, 1x ETH 10/100, 1x POWERLINK, 2x USB, IP65 protection (front), order application memory separately! Order terminal block 0TB103 separately!
Specifications
Specifications
| B&R ID code | 0xA964 |
| Quantity | 1 |
| CF (CompactFlash) | Orange |
| State | Red/Green |
| EPL (POWERLINK) | Red/Green |
| User | Green |
| Type | Type 4 |
| Service life | 4 years |
| Removable | Yes, accessible from the outside |
| Variant | Shielded RJ45 port |
| Buffer time | 10 ms |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| PP65 supported starting with version | Automation Runtime, A3.01 |
| Clock frequency | 500 MHz |
| L1 cache | 128 kB (64 kB I-cache / 64 kB D-cache) |
| L2 cache | 128 kB |
| Expanded command set | MMX technology, 3D Now |
| Floating point unit (FPU) | Yes |
| Flash | 4 MB (for firmware) |
| Cooling | Passive via heat sink |
| Mode/Node switches | 2, 16 positions each |
| Remanent variables | 32 kB |
| Watchdog | MTCX |
| Accuracy | At 25°C: Typ. 30 ppm (2.5 seconds) per day |
| Battery-backed | Yes |
| Controller | Intel 82551ER |
| Memory | 8 MB shared memory (reserved by RAM) |
| RAM | 128 MB DDR SDRAM |
| User RAM | 232 kB SRAM |
| PP65 Compact IF slot | 1 |
| Diagonal | 5.7" (144 mm) |
| Colors | 262,144 |
| Resolution | QVGA, 320 x 240 pixels |
| Contrast | 350:1 |
| Horizontal | Direction R / Direction L = 60° |
| Vertical | Direction U = 65° / Direction D = 50° |
| Brightness | 500 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Analog, resistive |
| Transmittance | 70% ±10% |
| Screen rotation | Yes (see section "Screen rotation" in chapter "Installation") |
| Transfer rate | 100 Mbit/s |
| Current-carrying capacity | Max. 500 mA per connection |
| Max. baud rate | 100 Mbit/s |
| Cables | S/STP (category 5) |
| LED status indicators | Link/Activity |
| Fieldbus | POWERLINK (V1/V2) |
| Transfer | 100BASE-T (ANSI/IEEE 802.3) |
| Status LED | Link/Activity |
| Line length | Max. 100 m between two stations (segment length) |
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 0.45 A |
| Inrush current | Max. 2.8 A |
| Power consumption | Typ. 10 W |
| Galvanic isolation | No |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card) Front: IP65 / NEMA 250 type 4X, protected against dust and hose-directed water |
| Operation | 15 g, 11 ms |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Material | Polyester |
| Front | Multi-layered panel overlay |
| Width | 203 mm |
| Height | 145 mm |
| Depth | 56.5 mm |
| Weight | 0.75 kg |
