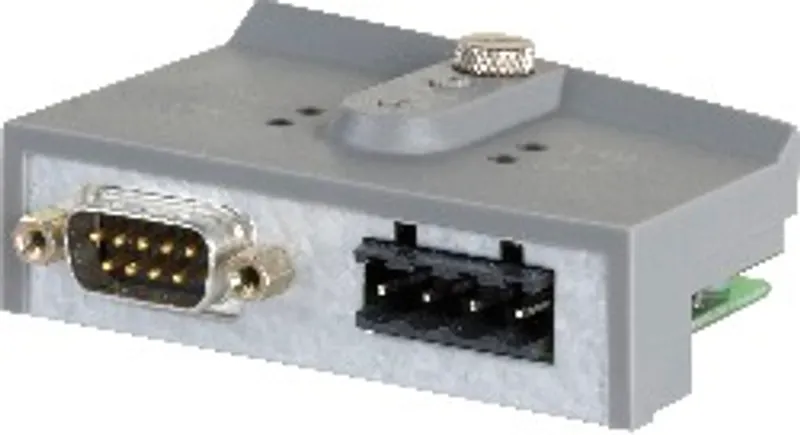

B&R 4PP065.IF23-1
Communication module, 1x RS232/RS422/RS485, 1x CAN
- MPN
- 4PP065.IF23-1
- Category
- Interface modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 4PP065.IF23-1?
PP65 interface module, 1 RS232 interface, 1 RS485/RS422 interface, RS422 electrically isolated, RS485 electrically isolated and network-capable, RS232/RS422/RS485 designed in one connector, 1 CAN interface electrically isolated and network-capable, order terminal block 0TB704 separately!
Specifications
Short description
| Communication module | 1x RS232/RS422/RS485, 1x CAN |
General information
| Status indicators – RS232 and CAN bus | Data transfer per interface |
| Status indicators – RS485/RS422 | No indicators |
| Diagnostics – Data transfer | Yes, using LED status indicators |
| Electrical isolation – IF1 - IF2 | Yes |
| Electrical isolation – IF1 - IF3 | Yes |
| Electrical isolation – IF2 - IF3 | Yes |
| Electrical isolation – PLC - IF1 | No |
| Electrical isolation – PLC - IF2 | Yes |
| Electrical isolation – PLC - IF3 | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xB0BB |
Interfaces
| Interface IF1 – Data bits | 5 to 8 |
| Interface IF1 – Parity | Yes / No / Even / Odd |
| Interface IF1 – Stop bits | 1 / 2 |
| Interface IF1 – Type | RS232 |
| Interface IF1 – Variant | 9-pin DSUB connector (shared with IF2) |
| Interface IF1 – Input filter / Protective circuit | Yes |
| Interface IF1 – Max. distance | 15 m / 19,200 bit/s |
| Interface IF1 – Max. transfer rate | 115.2 kbit/s |
| Interface IF1 – Network-capable | No |
| Interface IF1 – FIFO buffer | 16 bytes in the transmit and receive directions |
| Interface IF1 – Handshake lines | RTS, CTS |
| Interface IF1 – Controller | UART type 16C550 compatible |
| Interface IF2 – Type | RS485/RS422 |
| Interface IF2 – Variant | 9-pin DSUB connector (shared with IF1) |
| Interface IF2 – Max. distance | 500 m |
| Interface IF2 – Max. transfer rate | 115.2 kbit/s |
| Interface IF2 – Network-capable | Yes |
| Interface IF2 – FIFO buffer | 16 bytes in the transmit and receive directions |
| Interface IF2 – Terminating resistor | Integrated in module |
| Interface IF2 – Controller | UART type 16C550 compatible |
| Interface IF3 – Bus length ≤25 m | 1 Mbit/s |
| Interface IF3 – Bus length ≤60 m | 500 kbit/s |
| Interface IF3 – Bus length ≤200 m | 250 kbit/s |
| Interface IF3 – Bus length ≤1000 m | 50 kbit/s |
| Interface IF3 – Fieldbus | CAN bus |
| Interface IF3 – Type | CAN bus |
| Interface IF3 – Variant | 4-pin male multipoint connector |
| Interface IF3 – Controller | SJA 1000 |
| Interface IF3 – Max. distance | 1000 m |
| Interface IF3 – Max. transfer rate | 1 Mbit/s |
| Interface IF3 – Network-capable | Yes |
| Interface IF3 – Bus terminating resistor | Integrated in module, switchable |
Operating conditions
| Degree of protection | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -25 to 70°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 10 to 90%, non-condensing |
| Relative humidity – Storage | 10 to 90%, non-condensing |
| Relative humidity – Transport | 10 to 90%, non-condensing |
Mechanical properties
| Weight | 57 g |
| Slot | Slot in PP65 |
| Torque for mounting screw | Max. 0.6 Nm |
No matching specifications
Accessories
Optional accessories (3)
| 0AC913.93 | Infrastructure components — Bus adapter, CAN bus, 2 CAN bus interfaces, including 03 m attachment cable (TB704) |
| 0TB704.91 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
| 0TB704.9 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
