Bosch Rexroth 3842999678

LIFT POSITIONING UNIT HP 2

MPN: 3842999678
Category: Lift positioning units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999678?

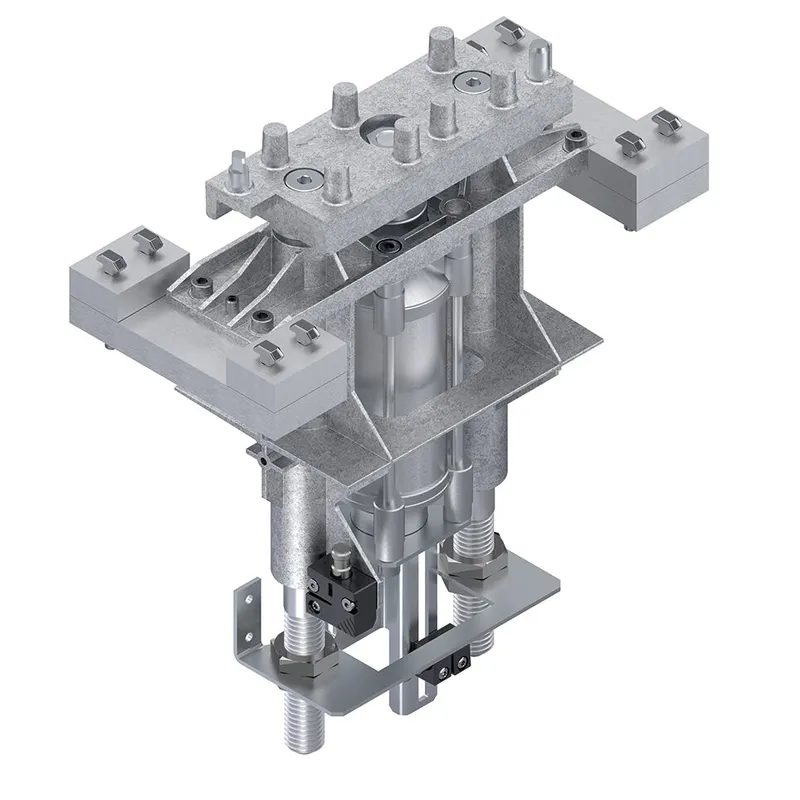

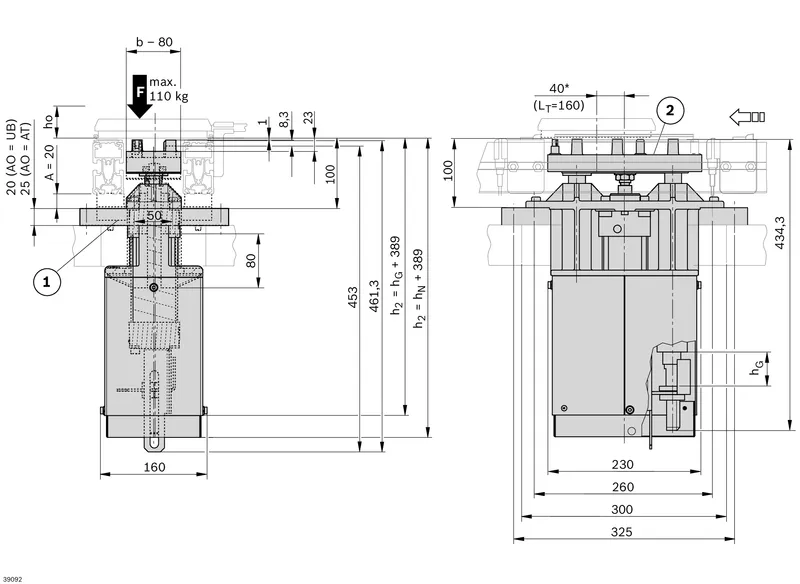

HP 2 lift positioning unit

Positioning of a workpiece pallet in a processing station with high repetition accuracy requirements and higher workpiece pallet weights.

Positioning using the positioning pins of the HP 2 and positioning bushings of the WT 2 workpiece pallet

Lifting cylinder with adjustable damping of the upper and lower end positions

Upper end damping takes effect only under full lift

Infinitely adjustable lift height in 8 lift ranges h N from 0 ... 404 mm

Can be combined with WT 2, WT 2/E, WT 2/F and WT 2/LS (only with version LS)

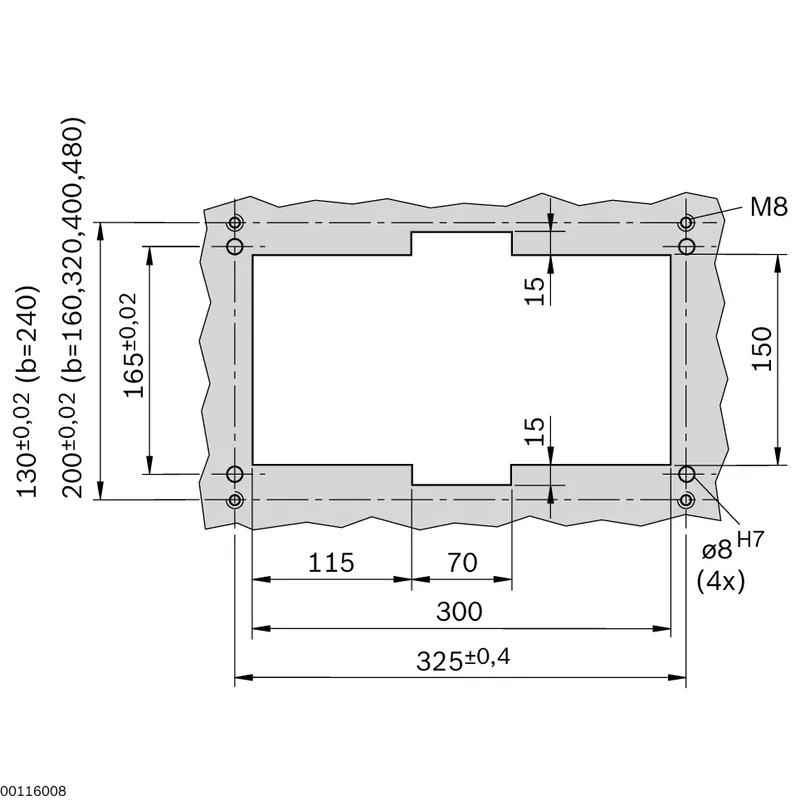

Installation location AO = UB: Installation location under the conveyor section

Installation location AO = AT: Installation location on the machine plate

Installation location AO = O: Installation location for self-construction

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Maximum load version [Fmax] [N]	1000
Workpiece pallet total weight [mG] [kg]	110
Repetition accuracy	±0,05
Permissible vertical process force [N]	1100
Pneumatic straight connection [Ø] [mm]	6
Length in direction of transport [lT] [mm]	0; 160; 240; 320; 400; 480; 640; 800
Scope of delivery	Incl. fastening material; Switch bracket for mounting of M12 sensors top and bottom for lift position inquiry
Delivery information	Fully assembled

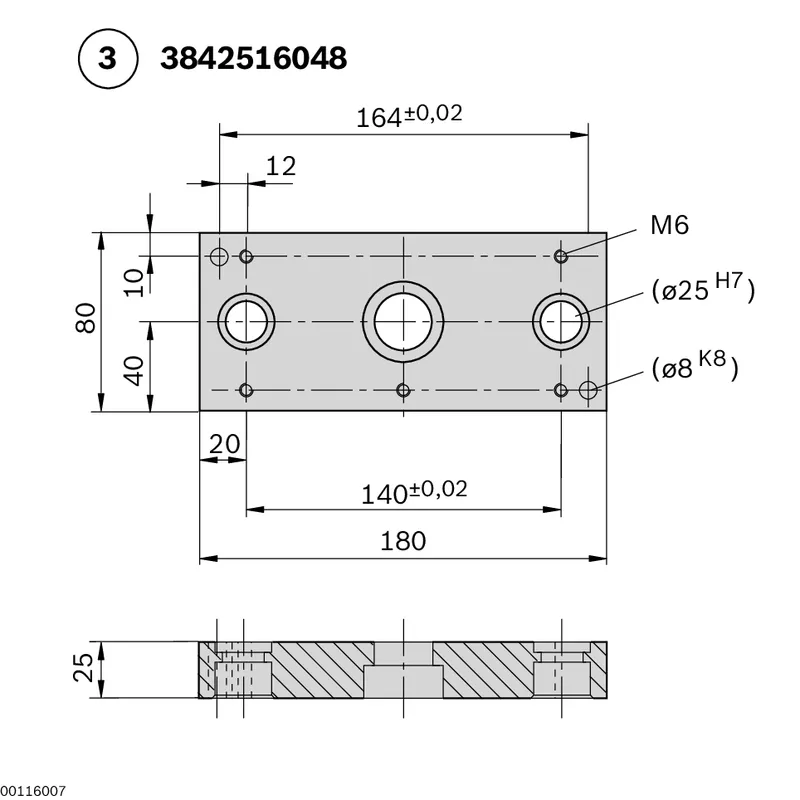

Notice	If the value is "0" at length in direction of transport [lT], HP 2 will be delivered with a lifting plate 3842516048 instead of the lift position plate for custom designing of the lift positioning plate; Permissible vertical process forces incl. WT 2; Throttle check valve, exhaust air with push-in fitting, diameter ⌀ 6 mm, for thread G 3/8" must be attached by the customer
Preferred values [mm]	160; 240; 320; 400; 480
Required accessories	Sensor; Stop gate VE 2/...; Throttle non-return valve, exhaust air, G3/8", diameter Ø 6 mm
Recommended accessories	HP 2 Housing Element
Weight [kg]	0
