BELT SECTION BS 2/M

Name: BELT SECTION BS 2/M
Brand: Bosch Rexroth
SKU: 3842999717

MPN: 3842999717 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Belt and toothed belt for belt section
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842999717 be shipped?

3842999717 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842999717 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842999717 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999717, subject to availability and destination.

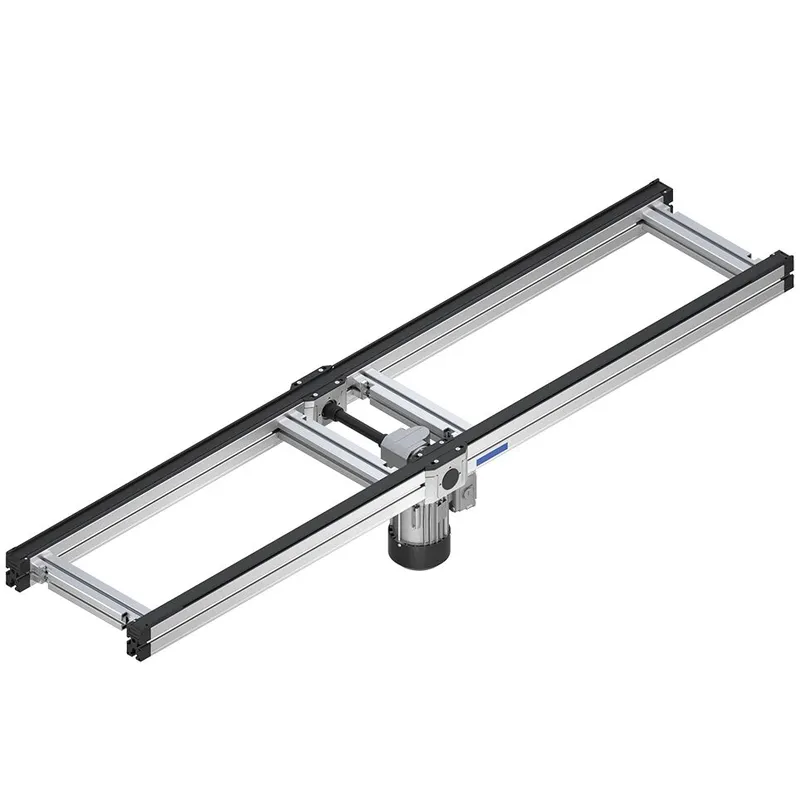

BS 2/M Belt Section The belt section is a conveyor section that is ready for operation with own drive for the transportation of workpiece pallets. It is suitable for all installation situations in which the motor cannot be fitted to the end of the belt section. Particularly robust, functional conveyor section, complete with drive Accumulation operation possible Conveyor medium: Toothed belt (suitable for use in an EPA) Reversible operation possible Can be combined with WT 2, WT 2/E, WT 2/F, WT 2/LS Motor mounting right, left or central Motor connection: optionally with cable/plug or terminal box motor connection Special models on request

Specifications

ESD	Yes
Length max [l max] [mm]	312
Length min [L min] [mm]	6000
Dry room [%rF]	<1
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Section load in accumulation operation [kg]	60
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Delivery information	Fully assembled

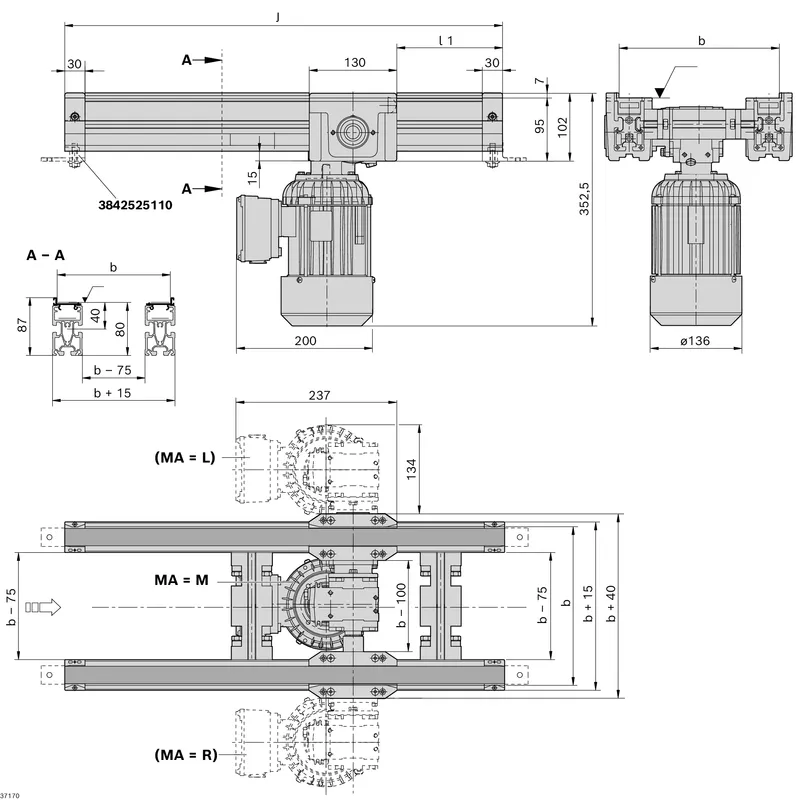

Notice	Individual width variants can be ordered; When MA = M and b = 160 mm, the max. section load is only 30 kg; l is rounded in accordance with the toothed belt pitch l – l<sub>1</sub> ≥ 222 mm
Preferred values [mm]	1040; 1200; 160; 240; 320; 400; 480; 640; 800
Material information	Glide profile: Polyamide; Guide profile: Polyamide; Section profile: Aluminum, natural; anodized
Length min [l1] [mm]	90
Length max [l1] [mm]	5770
Clean room classification	ISO class 7
Recommended accessories	Connection kit; Section supports SZ 2/...
Weight [kg]	0
