Bosch Rexroth 3842999090

RETURN UM 2/B

MPN: 3842999090
Category: Components of belt and toothed belt conveyor units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999090?

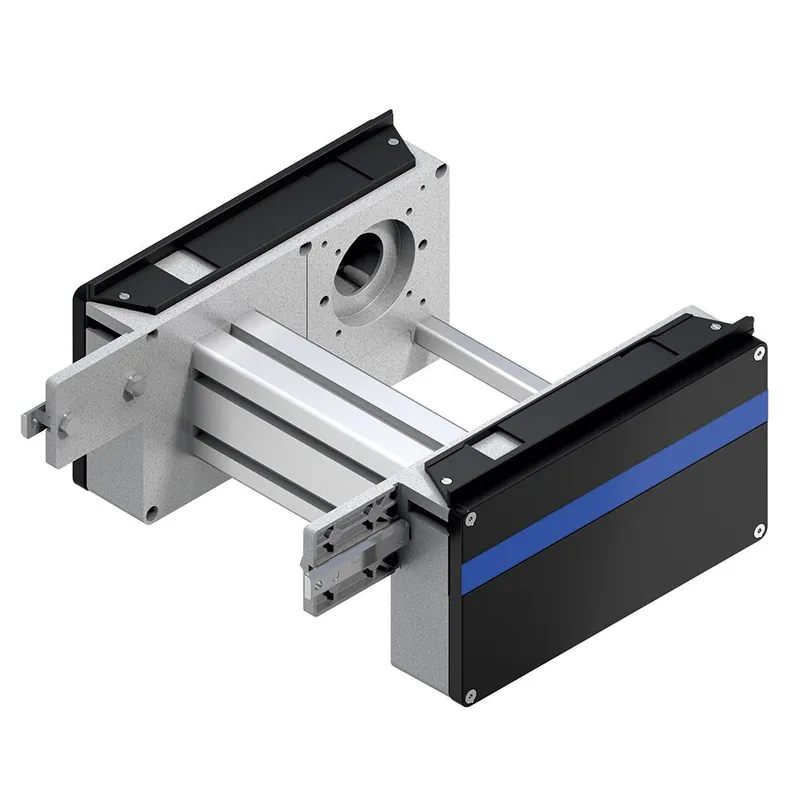

UM 2/B return unit

The return unit is used for constructing conveyor units. It guides the conveyor medium at the end of the conveyor unit back to the drive module

Conveyor medium: Belt (suitable for use in an EPA)

For use in conjunction with all AS 2/B-... drive modules

Max. permissible load up to 250 kg in accumulation operation per conveyor unit

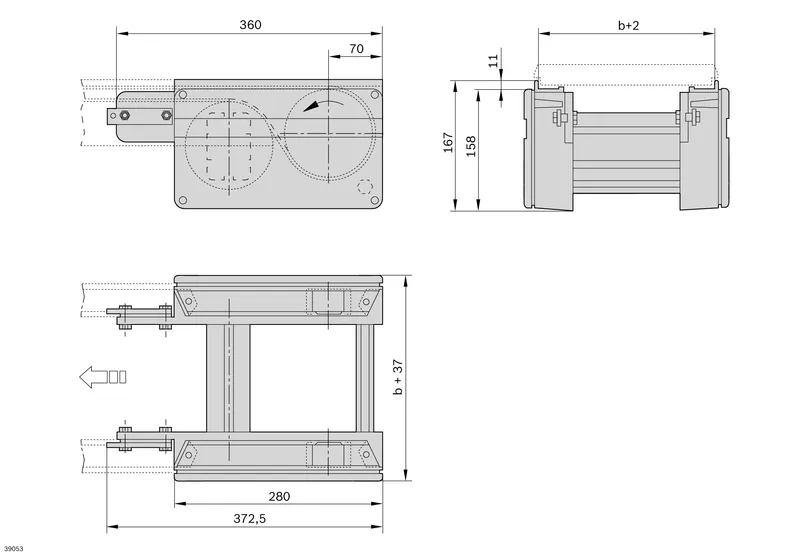

Specifications

ESD	Yes
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Conveyor medium length [lUM] [mm]	660
Scope of delivery	Incl. all fastening material to mount on ST 2/... conveyor section
Delivery information	Fully assembled
Notice	Individual width variants can be ordered
Preferred values [mm]	1040; 1200; 160; 240; 320; 400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Weight [kg]	0
