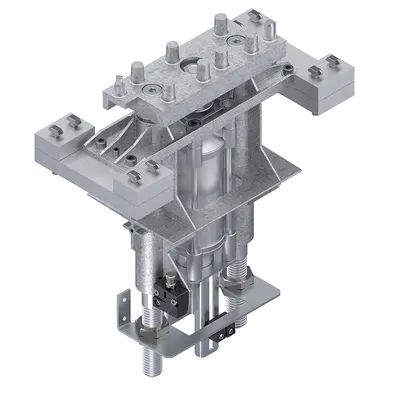

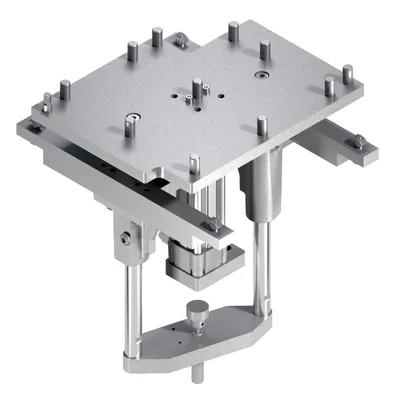

Lift positioning units Parts
Compare Lift positioning units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Workpiece pallet total weight [mG] [kg] | Permissible vertical process force [N] | Pneumatic straight connection [Ø] [mm] | Length in direction of transport [lT] [mm] | Delivery information |
|---|---|---|---|---|---|
| 3842999028 | 110 | 1100 | 6 | 0; 160; 240; 320; 400; 480; 640; 800 | Assembled |
| 3842999027 | 40 | 400 | 8 | 160; 240; 320 | Assembled |
| 3842998952 | 40 | 400 | 8 | 160; 240; 320 | Fully assembled |
| 3842999678 | 110 | 1100 | 6 | 0; 160; 240; 320; 400; 480; 640; 800 | Fully assembled |
Common to all listed parts
| ESD | Yes |
| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Repetition accuracy | ±0,05 |
| Weight [kg] | 0 |
