Bosch Rexroth 3842999061
BELT SECTION BS 2/M LS
- MPN
- 3842999061
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842999061?

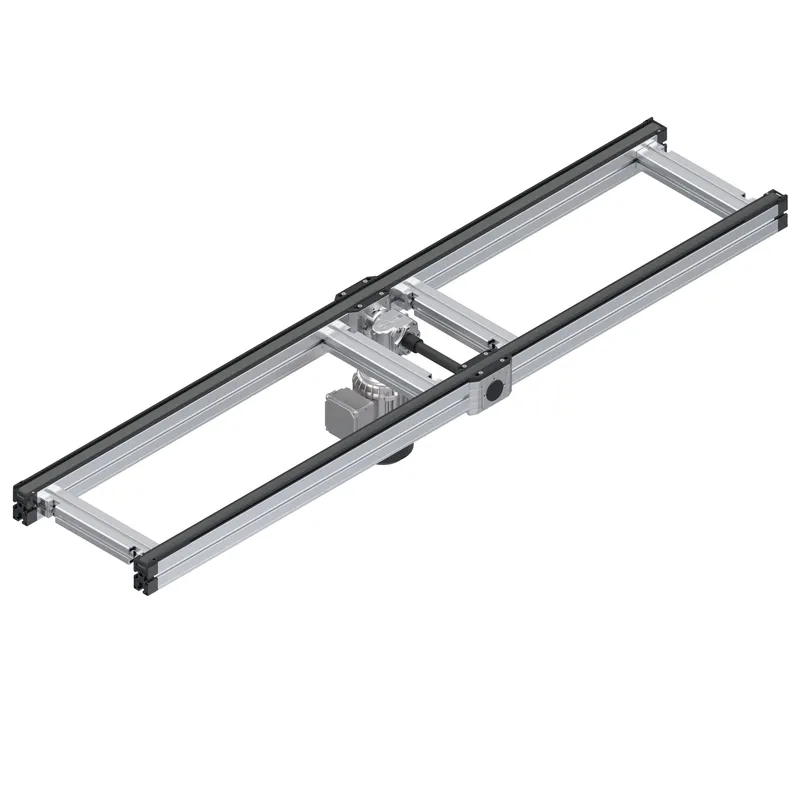

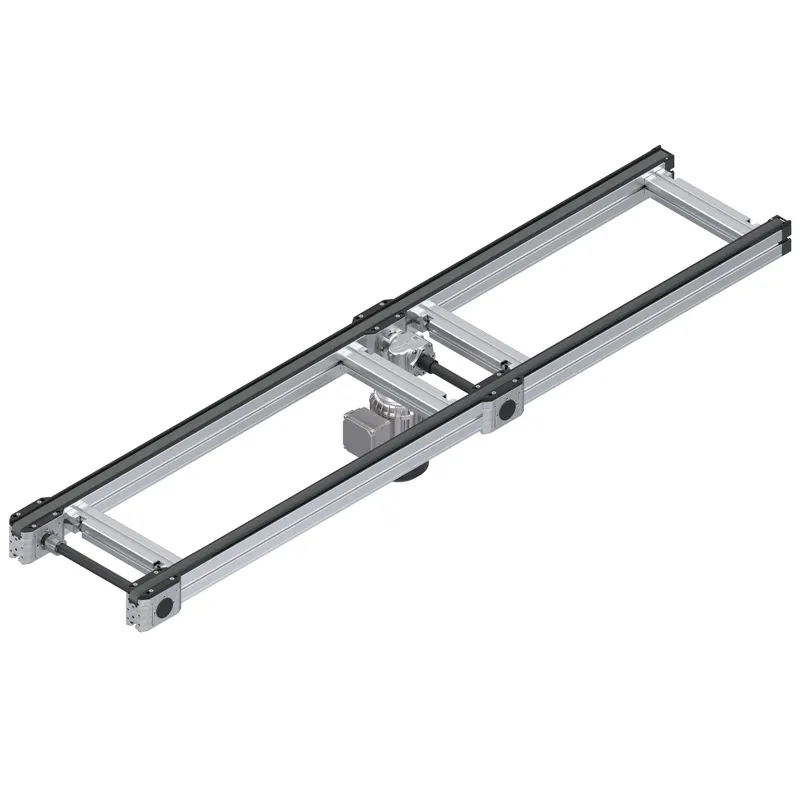

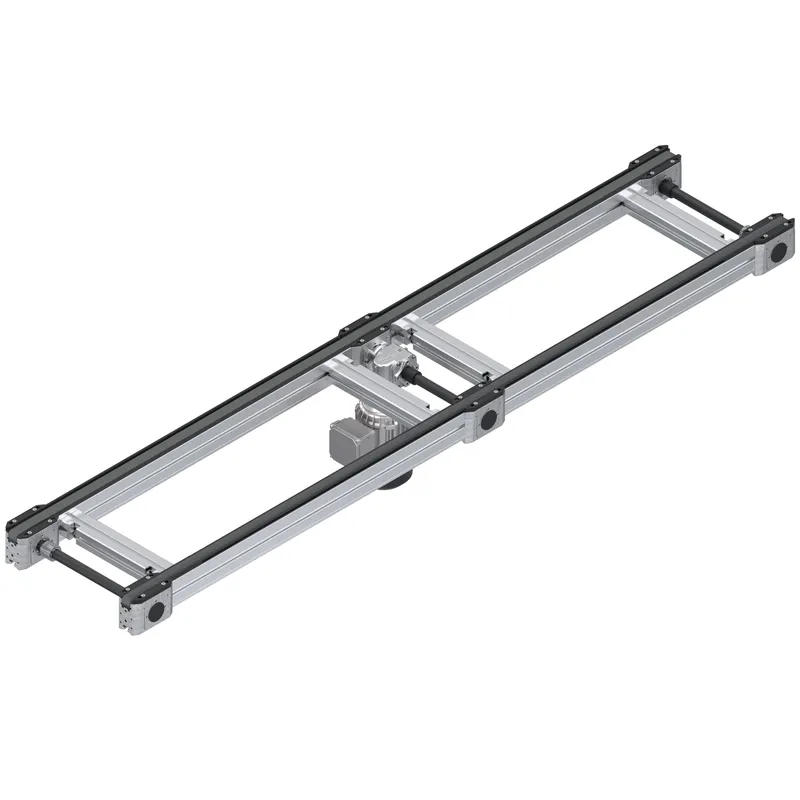

Ready for operation conveyor section with own drive
The belt section is a conveyor section that is ready for operation with own drive for the transportation of workpiece pallets
It is suitable for all installation situations in which the motor cannot be fitted to the end of the belt section
The return units can be inserted at both ends of the belt section, allowing a greater variety of applications
With 1 or 2 large return heads, the new modular unit BS 2/M-2 can now also be used to drive a KE 2/O or HQ 2/O
In addition, there is the option of whether or not a hexagonal shaft is integrated
Drive position freely selectable in longitudinal direction
Suitable for mounting situations where large return heads or drive heads are required
BS 2/LS is particularly suitable and recommended for workpiece pallets WT 2/LS in the transverse conveyor, e.g. for removal in an HQ 2
Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA
Special models on request
Specifications
Specifications
| Condition on delivery | Assembled |
| ESD | Yes |
| Length max [l max] [mm] | 6000 |
| Length min [L min] [mm] | 312 |
| Length [L1] | UM = 0; 1; 2; 3: 90...5770 mm; UM = 4; 5; 6: 190...5770 mm |
| Dry room [%rF] | <1 |
| Track width in direction of transport [b max] [mm] | 1200 |
| Track width in direction of transport [b min] [mm] | 160 |
| Section load in accumulation operation [kg] | 60 |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |

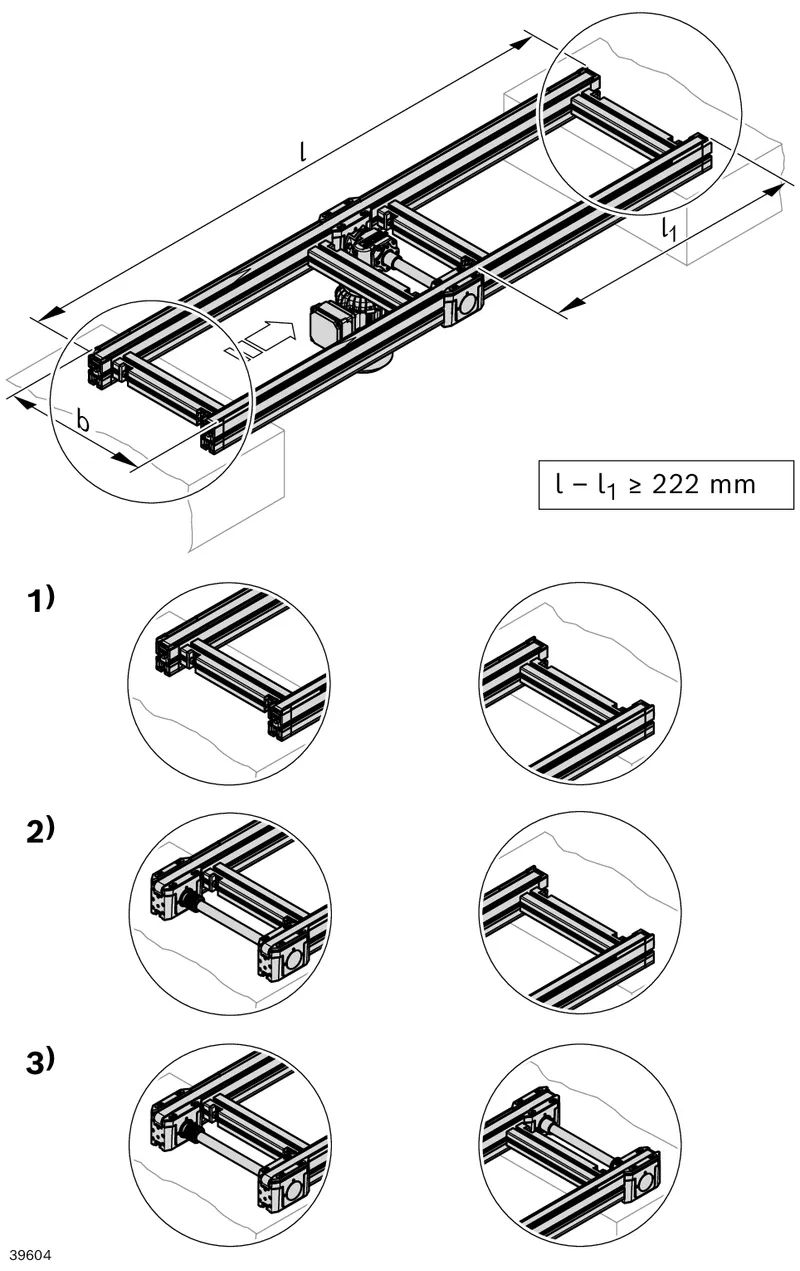

| Length [l] | UM = 0: 312...6000 mm (l is rounded in accordance with the toothed belt pitch l - l1 ≥ 222 mm); UM = 1; 2; 3: 410...6000 mm (l is rounded in accordance with the toothed belt pitch l - l1 ≥ 222 mm); UM = 4; 5; 6: 510...6000 mm (l is rounded in accordance with the toothed belt pitch l - l1 ≥ 222 mm) |
| Preferred values [mm] | 1040; 1200; 160; 240; 320; 400; 480; 640; 800 |
| Material information | Glide profile: PA; Guide profile: PA; Section profile: Aluminum, natural; anodized |
| Clean room classification | ISO class 7 |

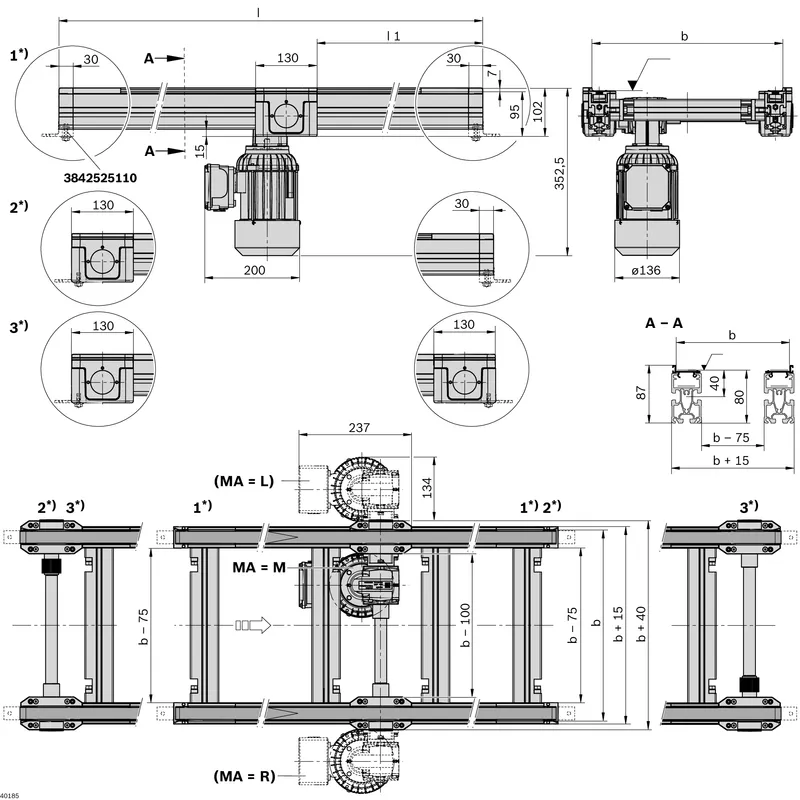

| Return unit [UM] | 0 = Beidseitig kleiner Umlenkkopf; 1 = Einseitig großer Umlenkkopf in Fahrtrichtung am Beginn der Strecke ohne Antriebswelle; 2 = Einseitig großer Umlenkkopf in Fahrtrichtung am Beginn der Strecke mit Anbindung an KE 2/O; 3 = Einseitig großer Umlenkkopf in Fahrtrichtung am Beginn der Strecke mit Anbindung an HQ 2/O; 4 = Beidseitig großer Umlenkkopf ohne Antriebswelle; 5 = Beidseitig großer Umlenkkopf mit Anbindung an KE 2/O; 6 = Beidseitig großer Umlenkkopf mit Anbindung an HQ 2/O |
| Conveyor medium | Toothed belt (suitable for use in an EPA) |
| Recommended accessories | Connection kit; Leg sets ST 2/... |
| Weight [kg] | 0 |
