DRIVE MODULE AS 2/B-150

MPN: 3842999190
Category: Components of belt and toothed belt conveyor units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999190?

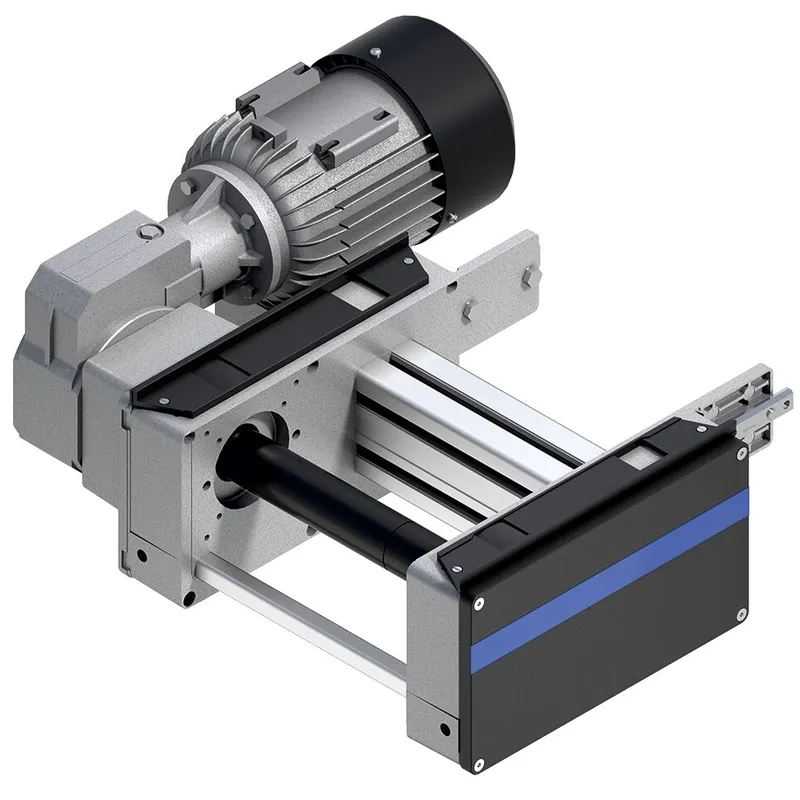

AS 2/B-150 MA=R/L drive module

The drive module AS 2/B-... drives the conveyor medium belt in self-built conveyor units with a section, return unit and conveyor belt or serves as a transverse section.

Conveyor medium: Belt (suitable for use in an EPA)

Motor connection: optionally with cable/plug or terminal box motor connection

Centered motor mounting only possible in 0° and 90° position. For right or left motor mounting, any installation angle is possible

Special models on request

Accumulation operation possible

Specifications

ESD	Yes
Dry room [%rF]	<1
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Section load in accumulation operation [kg]	150
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min nicht möglich bei f = 60 Hz; 18 m/min; 6 m/min; 9 m/min
Conveyor medium length [lAS] [mm]	660
Scope of delivery	Drive Module AS 2/B-150; Includes fastening material to mount on the ST 2/… conveyor section, as well as to mount on an adjacent return unit.
Delivery information	Fully assembled
Notice	Individual width variants can be ordered
Preferred values [mm]	1040; 1200; 160; 240; 320; 400; 480; 640; 800
Clean room classification	ISO class 7
Conveyor medium	Belt (suitable for use in an EPA)
Required accessories	Roller track RB 2 for adjacent longitudinal sections and workpiece pallet lengths of < 320 mm; Roller track set RB 2/UM 2 for use in transverse sections with adjacent longitudinal sections
Weight [kg]	0
