Bosch Rexroth 3842999720
DRIVE MODULE AS 2/B-250 MA=M
- MPN
- 3842999720
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842999720?

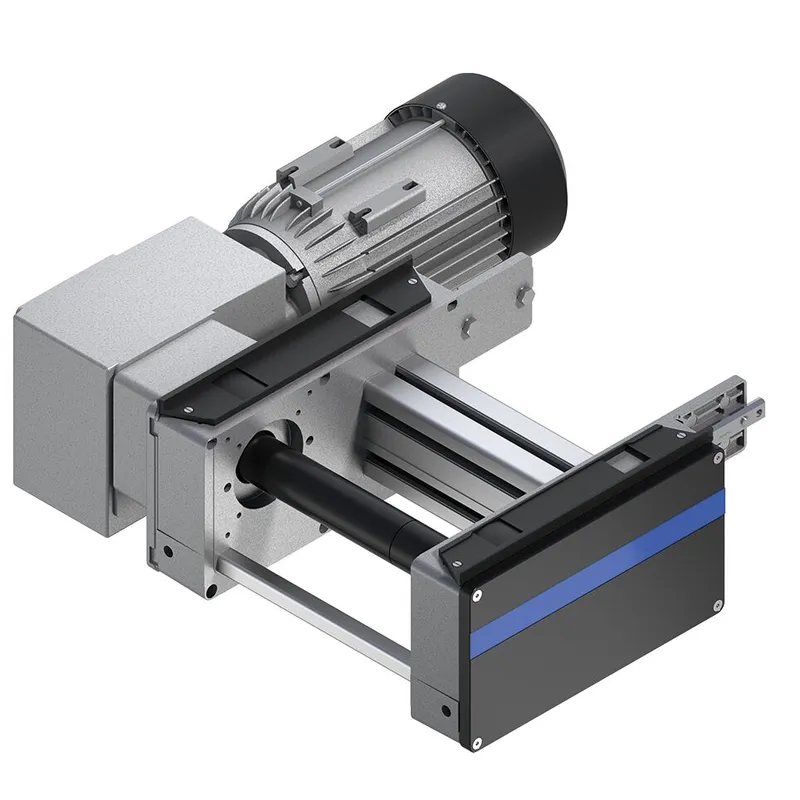

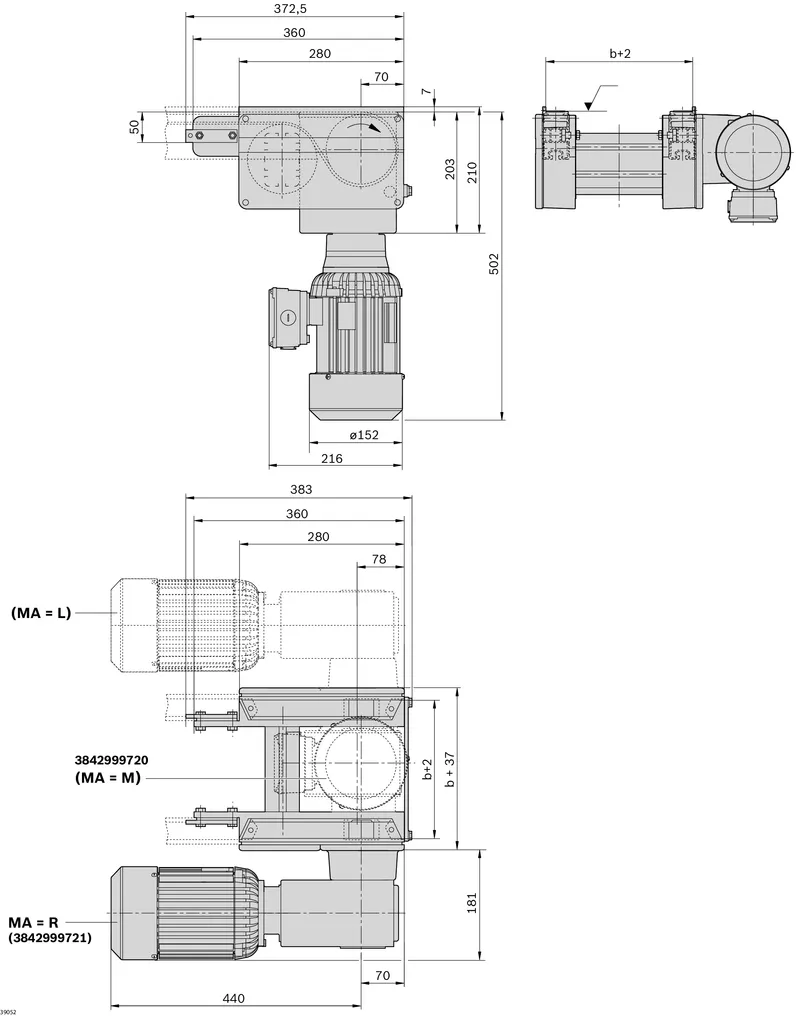

AS 2/B-250 MA=M drive module
The drive module AS 2/B-... drives the conveyor medium belt in self-built conveyor units with a section, return unit and conveyor belt or serves as a transverse section.
Conveyor medium: Belt (suitable for use in an EPA)
Motor connection: optionally with cable/plug or terminal box motor connection
Special models on request
Accumulation operation possible
Specifications
Specifications
| ESD | Yes |
| Dry room [%rF] | <1 |
| Track width in direction of transport [b max] [mm] | 1200 |
| Track width in direction of transport [b min] [mm] | 240 |
| Section load in accumulation operation [kg] | 250 |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |
| Conveyor medium length [lAS] [mm] | 660 |
| Scope of delivery | Drive Module AS 2/B-250; Includes fastening material to mount on the ST 2/… conveyor section, as well as to mount on an adjacent return unit. |
| Delivery information | Fully assembled |
| Notice | Individual width variants can be ordered |
| Preferred values [mm] | 1040; 1200; 240; 320; 400; 480; 640; 800 |
| Clean room classification | ISO class 7 |
| Conveyor medium | Belt (suitable for use in an EPA) |
| Required accessories | Roller track RB 2 for adjacent longitudinal sections and workpiece pallet lengths of < 320 mm; Roller track set RB 2/UM 2 for use in transverse sections with adjacent longitudinal sections |
| Weight [kg] | 0 |
