Bosch Rexroth 3842999032

LIFT TRANSFER UNIT HQ 2/U LS

MPN: 3842999032
Category: Lift transverse units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999032?

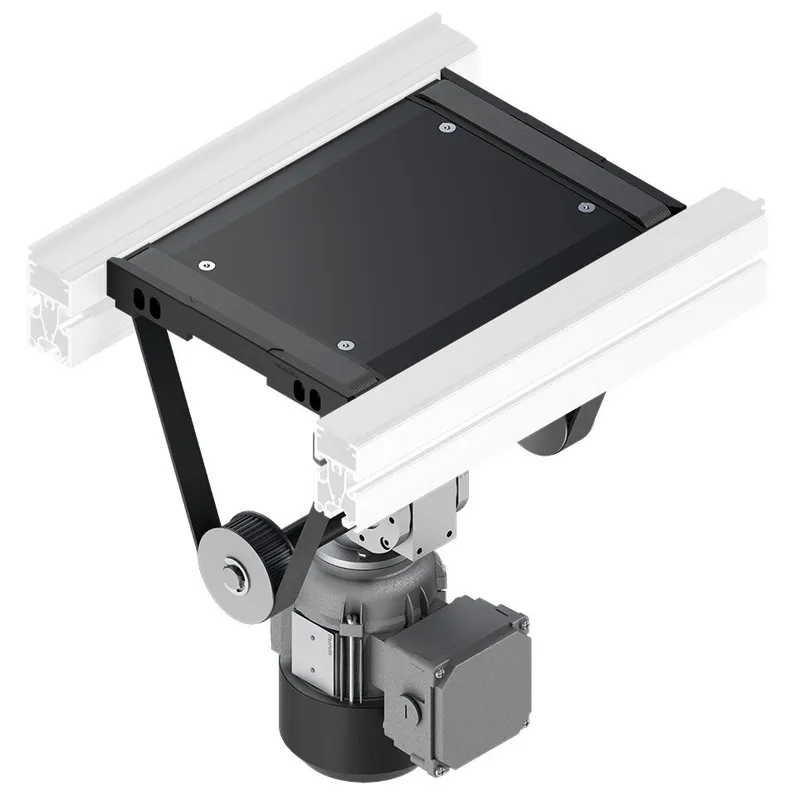

Lift transverse unit HQ 2/U LS

Lift transverse unit for feeding out of a from longitudinal section into a transverse section and vice versa

Use in tight spaces by means of suspended drive motor (outside dimensions must be no wider than the section)

Drive by toothed belt coupling is not possible because of the compact design

Conveyor medium: Toothed belt (suitable for use in an EPA)

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS (only with version LS)

Reversible operation possible

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	160 x 160; 240; 320; 240 x 160; 240; 320; 400; 320 x 160; 240; 320; 400; 400 x 240; 320; 400; 480 x 320
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	30
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Assembly kit for electrical position sensor; Incl. fastening material; Pneumatic equipment for 2 or 3 positions; Protective case
Delivery information	Assembled; Kit for electric position sensor included

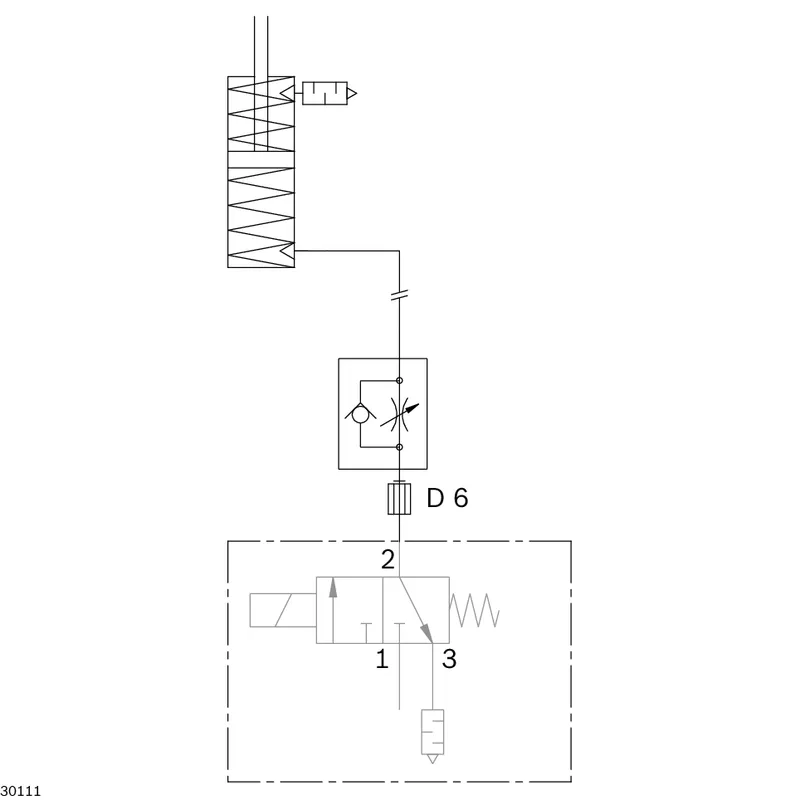

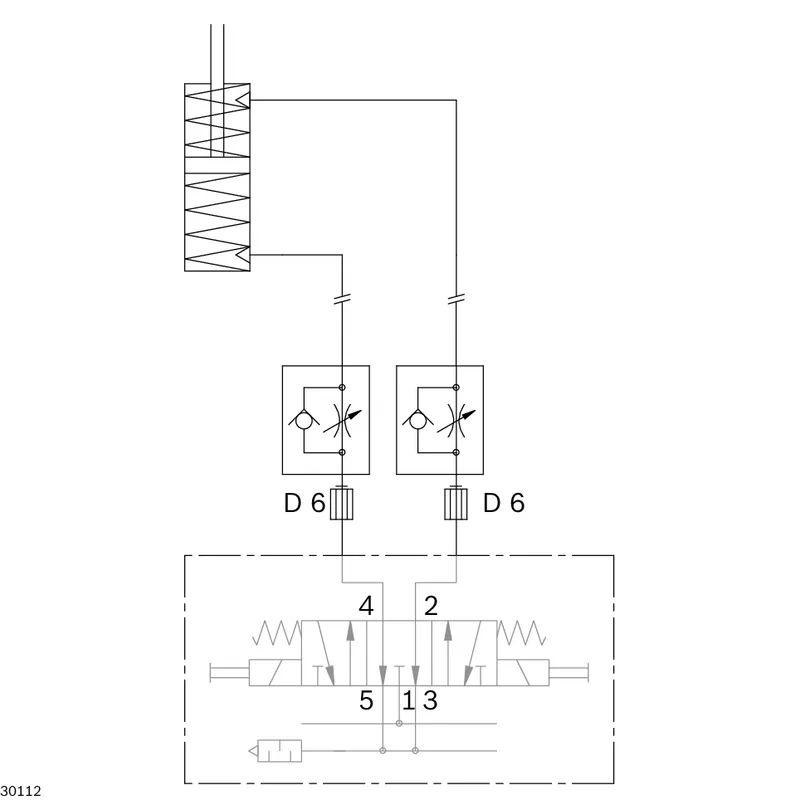

Notice	Pneumatic equipment PN = 2: upper and middle lift position; Pneumatic equipment PN = 3: upper, middle and lower lift position
Preferred values [mm]	160; 240; 320; 400; 480
Conveyor medium	Toothed belt (suitable for use in an EPA)
Required accessories	1x sensor M12x1 with rated switching distance S<sub>N</sub> = 4 mm for each position sensor
Recommended accessories	Damper DA 2/60 for outfeeding workpiece pallets at v<sub>N</sub> > 9 m/min; Rockers WI 2/…, WI/M and dampers DA 2/60, DA 2/100-C for BG 2 for infeeding the workpiece pallets
Weight [kg]	0
