Bosch Rexroth 3842999035

CURVE KE 2/180-O LS

MPN: 3842999035
Category: Curves TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999035?

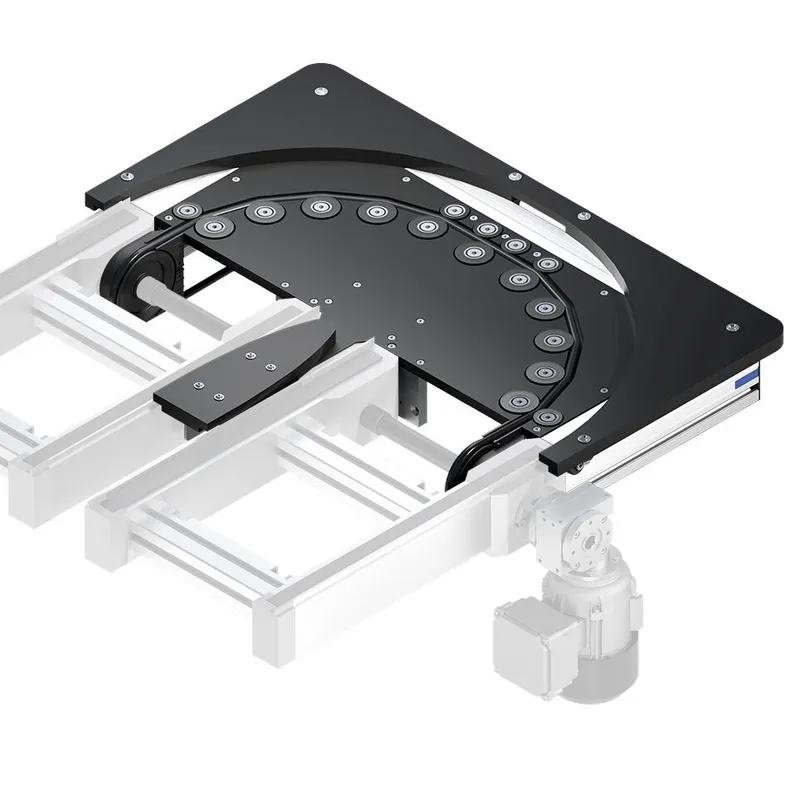

Curve KE 2/O-180 LS

180° curve conveyor for the workpiece pallet

Suitable for combination with BS 2 or BS 2/K

Curve module without own drive

Overall weight of workpiece pallets up to 20 kg

Conveyor medium: Round belt (suitable for use in an EPA)

Can be combined with WT 2, WT 2/F and WT 2/LS (only with version LS)

Specifications

ESD	Yes
Workpiece pallet total weight [mG] [kg]	20

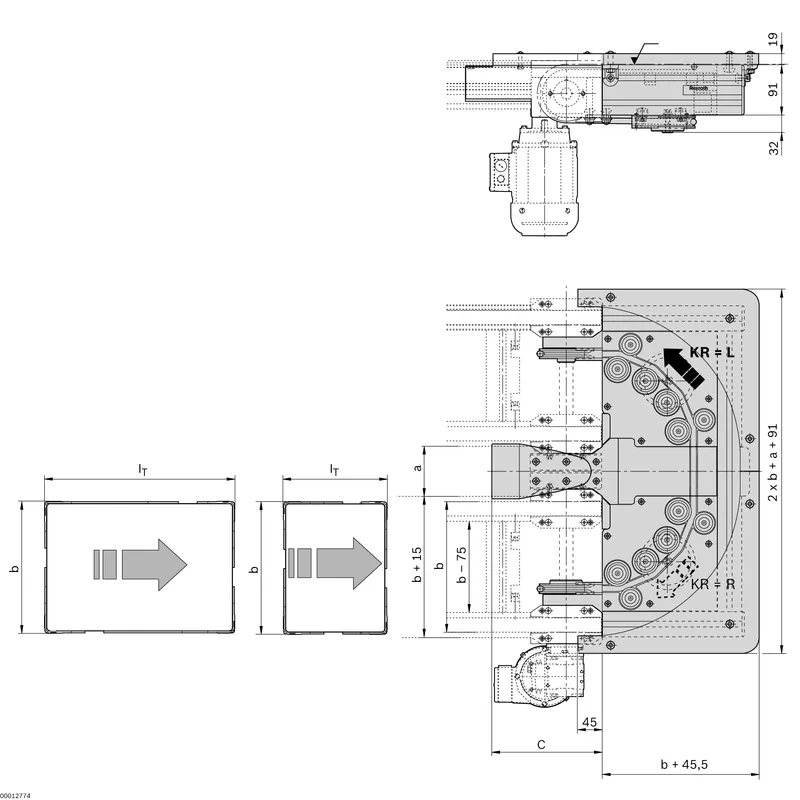

Track width in direction of transport [b] [mm]	160; 240; 320; 400
Length in direction of transport [lT] [mm]	160; 240; 320; 400
Scope of delivery	Curve, complete with fastening parts
Delivery information	Inner guide included; Some assembly required
Notice	b x l<sub>T</sub> is possible in all combinations
Conveyor medium	Round belt (suitable for use in an EPA)
Required accessories	2x belt section BS 2/K
Recommended accessories	Leg sets SZ 2/...
Weight [kg]	0
