Bosch Rexroth 3842999033

LIFT TRANSFER UNIT HQ 2/U2 LS

MPN: 3842999033
Category: Lift transverse units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999033?

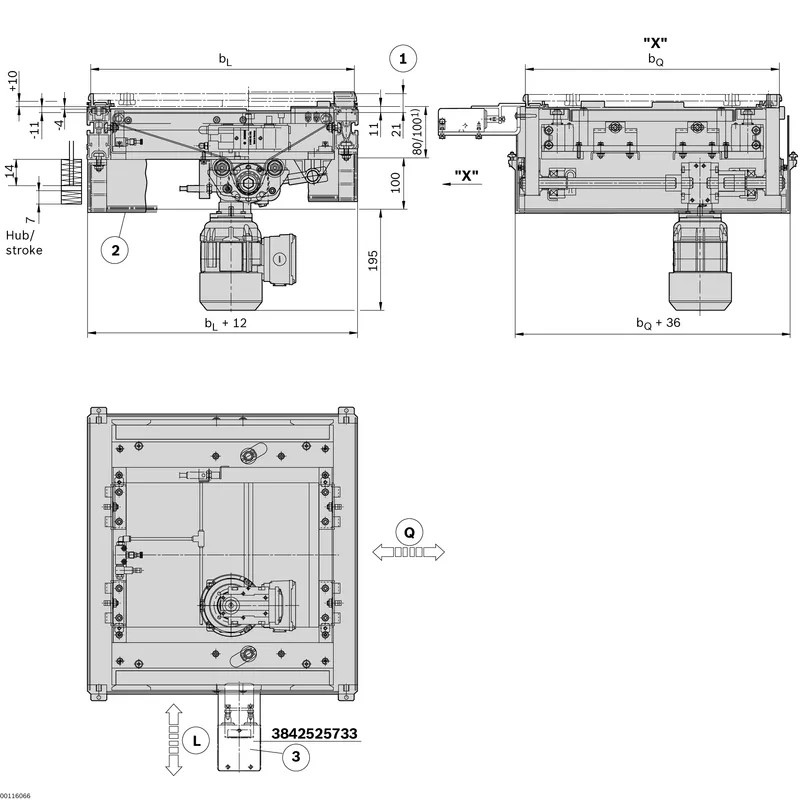

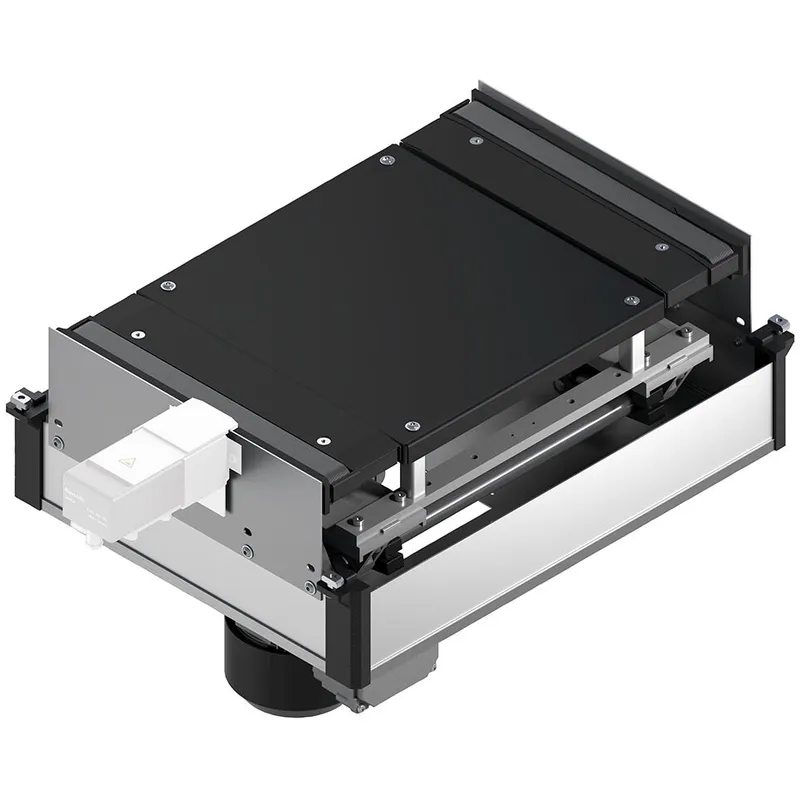

Lift transverse unit HQ 2/U2 LS

Lift transverse unit for feeding out of a from longitudinal section into a transverse section and vice versa

Use in tight spaces by means of suspended drive motor (outside dimensions must be no wider than the section)

Reinforced version of HQ 2/U with two lift cylinders for large workpiece pallet dimensions

Drive by toothed belt coupling is not possible because of the compact design

Conveyor medium: Toothed belt (suitable for use in an EPA)

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2, WT 2/F, WT 2/H, WT 2/F-H and WT 2/LS (only with version LS)

Reversible operation possible

Specifications

ESD	Yes
Scope of delivery	Assembly kit for electrical position sensor; Incl. fastening material; Pneumatic equipment for 2 or 3 positions; Protective case
Delivery information	Assembled; Kit for electric position sensor included; Kit for protective case included
Notice	Pneumatic equipment PN = 2: upper and middle lift position; Pneumatic equipment PN = 3: upper, middle and lower lift position
Preferred values [mm]	400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	400 x 400; 480; 640; 480 x 400; 480; 640; 640 x 400; 480; 640; 800 x 400; 480; 640
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	50
Pneumatic straight connection [Ø] [mm]	6
Recommended accessories	Damper DA 2/100-B for outfeeding workpiece pallets WT 2, WT 2/F, WT 2/H or WT 2/F-H, required when v<sub>N</sub> > 12 m/min or total weight of the workpiece pallet ≥ 30 kg; Rockers WI 2/…, WI/M and damper DA 2/100-C for infeeding the workpiece pallets WT 2 and WT 2/F
Required accessories	1x sensor M12x1 with rated switching distance S<sub>N</sub> = 4 mm for each position sensor
Weight [kg]	0
