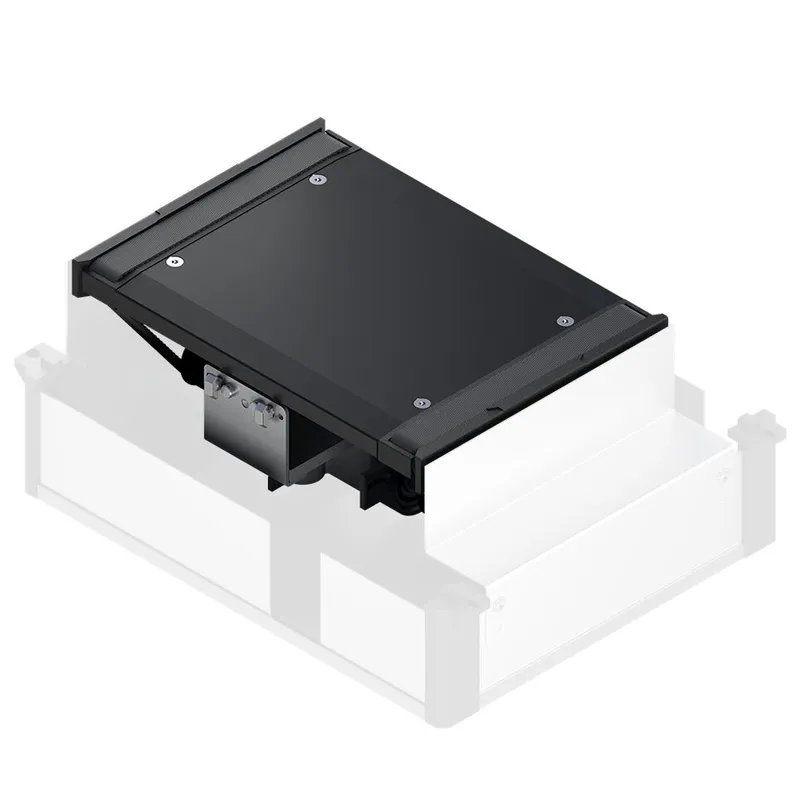

LIFT TRANSFER UNIT HQ 2/T LS

Name: LIFT TRANSFER UNIT HQ 2/T LS
Brand: Bosch Rexroth
SKU: 3842999031

MPN: 3842999031 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lift transverse units TS 2plus
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842999031 be shipped?

3842999031 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842999031 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842999031 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999031, subject to availability and destination.

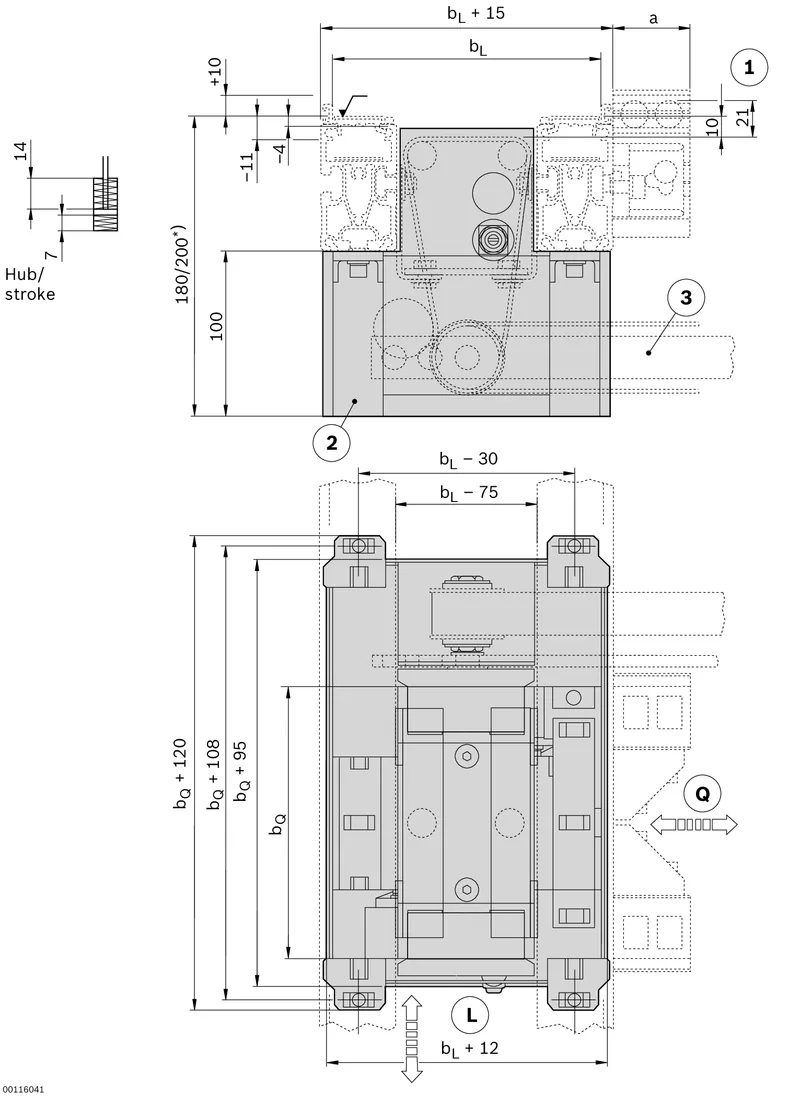

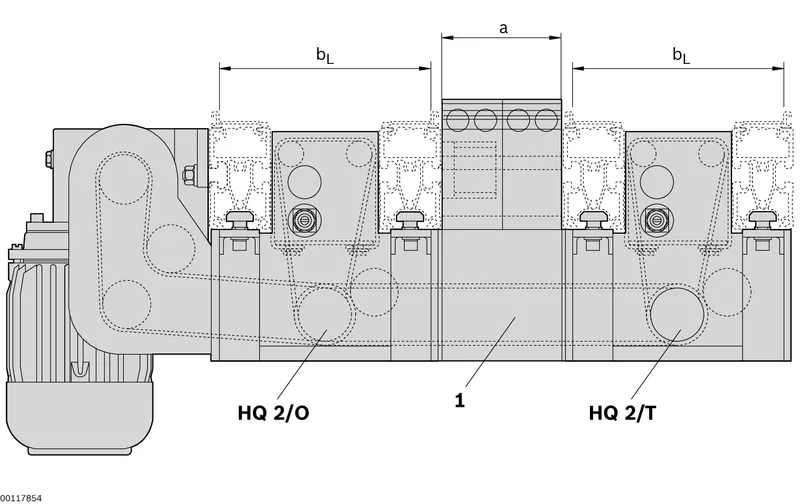

Lift transverse unit HQ 2/T LS Lift transverse unit without own drive for feeding out from a longitudinal section into a transverse section with a roller section and vice versa Used together with the HQ 2/O as a tandem design Driven by toothed belt coupling Suitable for use in special designs In two sizes with one or two lifting cylinders Conveyor medium: Toothed belt (suitable for use in an EPA) Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS (only with version LS) Reversible operation possible

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	160 x 160; 240; 320; 240 x 160; 240; 320; 400; 320 x 160; 240; 320; 400; 400 x 240; 320; 400; 400 x 480; 480 x 320; 480 x 400; 480; 640 x 400; 480; 800 x 400; 480; BG 1; BG 2
Workpiece pallet total weight [mG] [kg]	30
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Assembly kit for electrical position sensor; Incl. drive kit (required to drive an HQ 2/T); Incl. fastening material; Pneumatic equipment for 2 or 3 positions
Delivery information	Assembled
Notice	Pneumatic equipment PN = 2: upper and middle lift position; Pneumatic equipment PN = 3: upper, middle and lower lift position
Preferred values [mm]	160; 240; 320; 400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Required accessories	1x sensor M12x1 with rated switching distance S<sub>N</sub> = 4 mm for each position sensor; Protective case SK 2
Recommended accessories	Damper DA 2/60 for outfeeding workpiece pallets at v<sub>N</sub> > 9 m/min; Rockers WI 2/…, WI/M and dampers DA 2/60, DA 2/100-C for BG 2 for infeeding the workpiece pallets
Weight [kg]	0
