Bosch Rexroth 3842999036

CURVE KE 2/90 LS

MPN: 3842999036
Category: Curves TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999036?

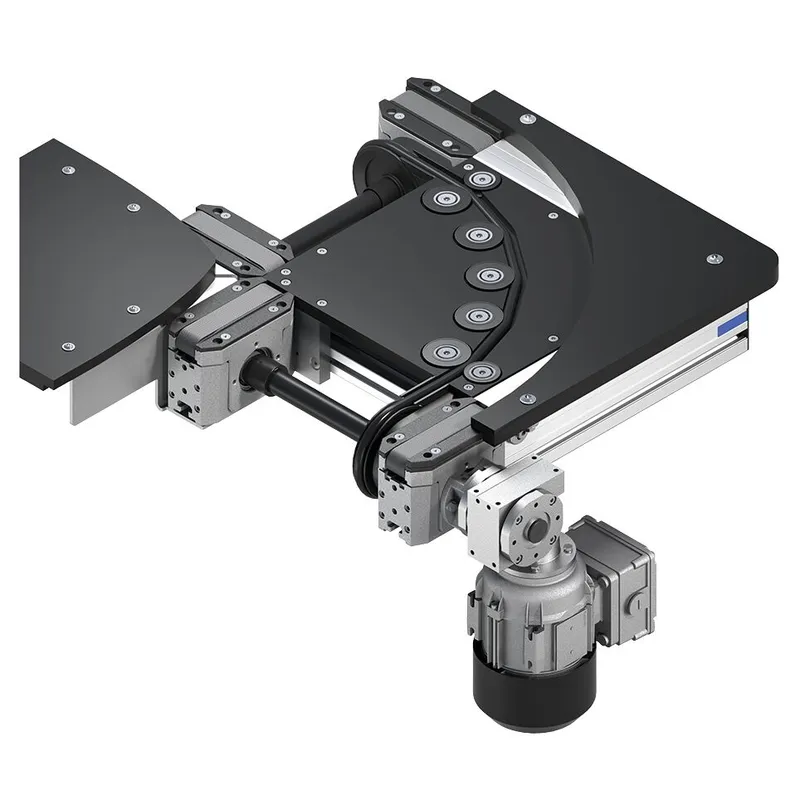

Curve KE 2/90 LS

90° curve conveyor for the workpiece pallet

Overall weight of workpiece pallets up to 20 kg

Conveyor medium: Round belt (suitable for use in an EPA)

Intended for grease-free and oil-free environments

Can be combined with WT 2, WT 2/F and WT 2/LS (only with version LS)

Accumulation operation not permitted

Specifications

ESD	Yes
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	20
Track width in direction of transport [b] [mm]	160; 240; 320; 400
Length in direction of transport [lT] [mm]	160; 240; 320; 400
Scope of delivery	Curve, complete with drive motor
Delivery information	Inner guide and motor included; Some assembly required
Conveyor medium	Round belt (suitable for use in an EPA)
Recommended accessories	Connection kits; Leg sets SZ 2/...
Weight [kg]	0
