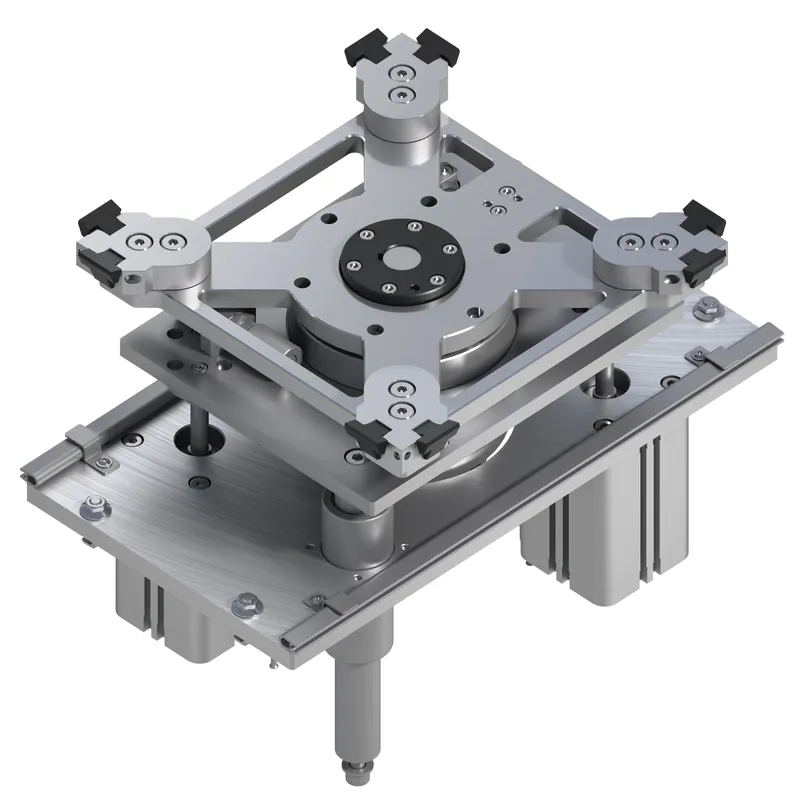

Bosch Rexroth 3842999024
LIFT-ROTATE UNIT HD 2/H SIZE2 LS
- MPN
- 3842999024
- Category
- Lift rotary unit HD 2/H
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842999024?
Lift rotary unit HD 2/H LS, BG 2
WT lift above transportation level, approx. 50 mm
Available in 3 sizes (BG) for WT total weights up to 240 kg

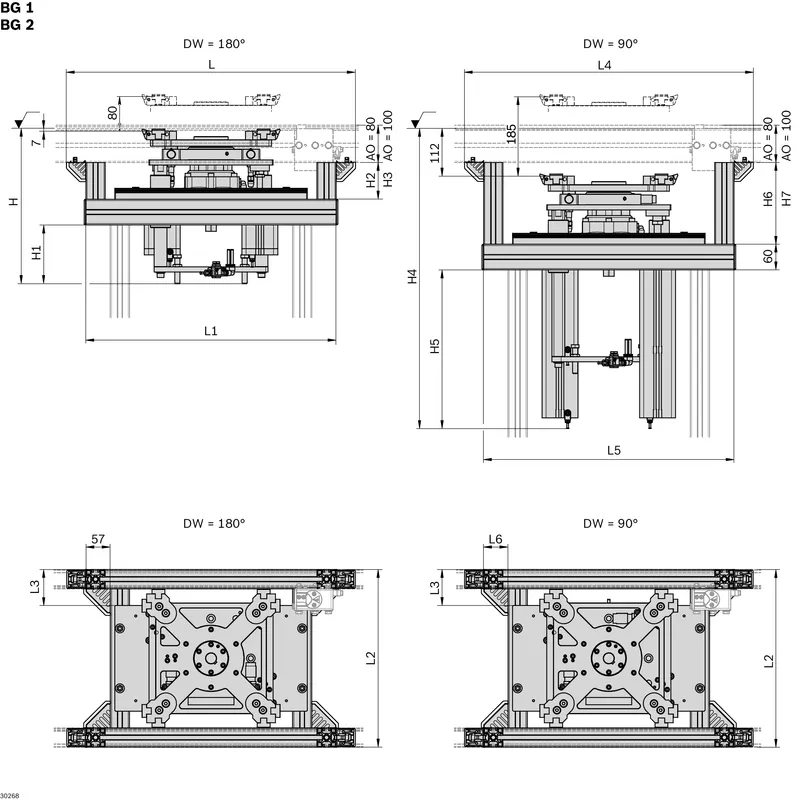

– BG 1 and BG 2 for use with workpiece pallets WT 2, WT 2/F and WT 2/LS (only with version LS)

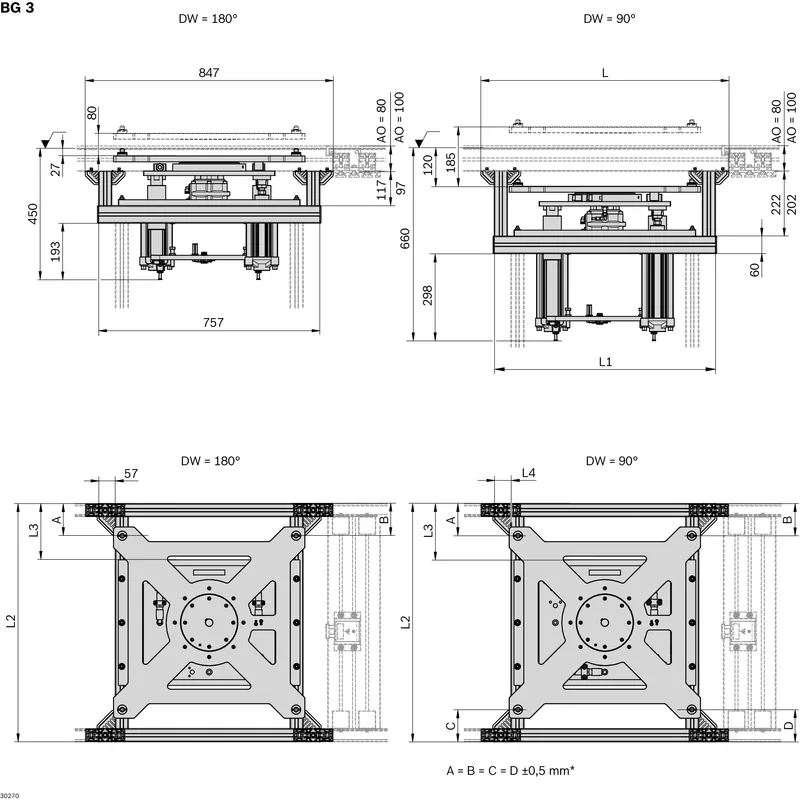

– BG 3 for use with workpiece pallets WT 2/H and WT 2/F-H
Rotation by 90° or 180°
– For rotating square workpiece pallets by 90° or 180°
– For rotating non-square workpiece pallets by 180°
– For 90° rotation, the reverse rotation for BG 1 and BG 2 takes place below the belt. Reduced cycle times by means of reverse rotation during workpiece pallet change. For BG 3 and 90° rotation, the reverse rotation takes place above the belt
– Center position only with BG 1 and BG 2 in 90° version
Specifications
Specifications
| ESD | Yes |
| Lift of WT over conveyor medium [h0] | 50 |
| Scope of delivery | 2x damper for end positions of the rotary movement; Fastening material for assembly on conveyor sections; Pneumatic elements such as fittings, throttle check valves, etc. for the top/center/bottom lift positions |
| Delivery information | Assembled |
| Notice | For use with WT 2/LS workpiece pallets only |
| Required accessories | Cylinder switch (0830100433) for top/center/bottom lift positions; Leg sets for BG 2 over 50 kg; Leg sets for BG 3 generally; Protective cases; Sensor for the rotary movement at 0°/180° or 0°/90° |
| Recommended accessories | Stop gate VE 2 or VE 2/D, for damped stopping of a workpiece pallet |
| Weight [kg] | 0 |
3842999024: frequently asked questions
When can 3842999024 be shipped?
3842999024 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842999024 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842999024 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999024, subject to availability and destination.
