LIFT POSITIONING UNIT HP 2/LS

Name: LIFT POSITIONING UNIT HP 2/LS
Brand: Bosch Rexroth
SKU: 3842999028

MPN: 3842999028 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lift positioning units
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842999028 be shipped?

3842999028 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842999028 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842999028 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999028, subject to availability and destination.

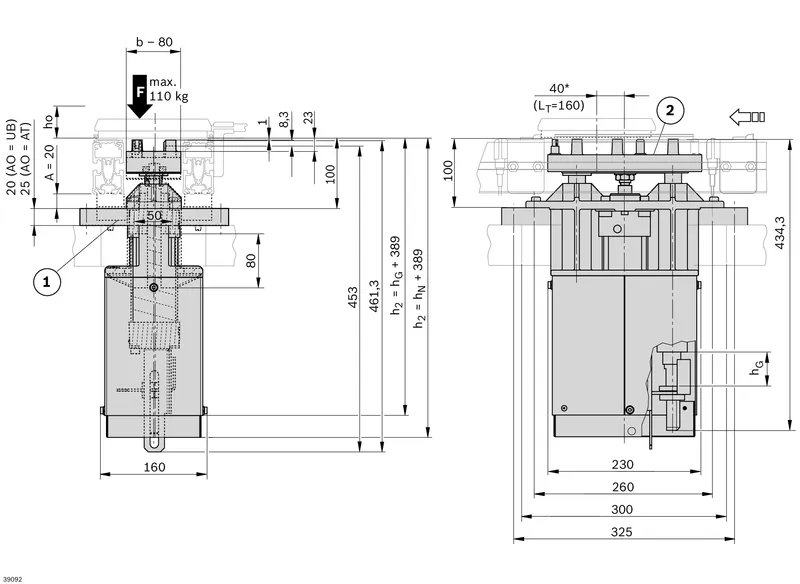

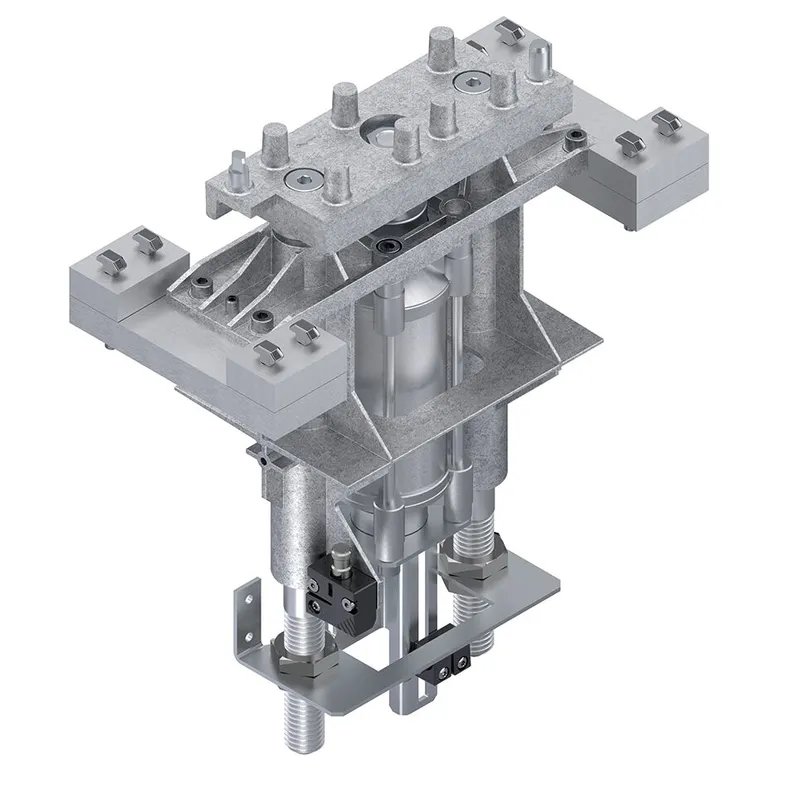

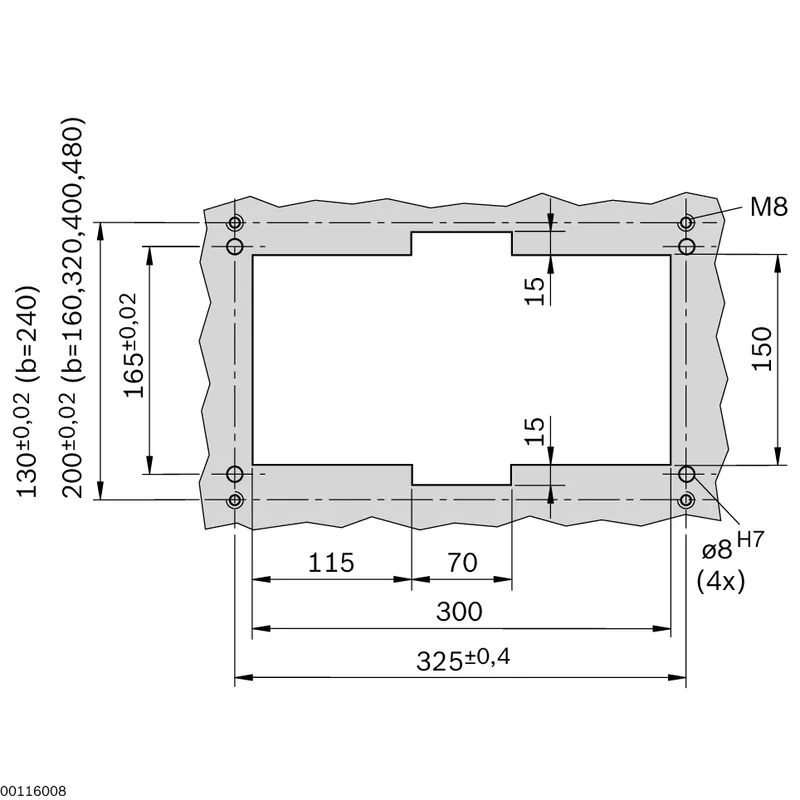

Lift positioning unit HP 2 LS Positioning of a workpiece pallet in a processing station with high repetition accuracy requirements and higher workpiece pallet weights. Positioning using the positioning pins of the HP 2 and positioning bushings of the WT 2 workpiece pallet Lifting cylinder with adjustable damping of the upper and lower end positions Upper end damping takes effect only under full lift Infinitely adjustable lift height in 8 lift ranges h<sub>N</sub> from 0 ... 404 mm Can be combined with WT 2, WT 2/E, WT 2/F and WT 2/LS (only with version LS) Installation location AO = UB: Installation location under the conveyor section Installation location AO = AT: Installation location on the machine plate Installation location AO = O: Installation location for self-construction

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Workpiece pallet total weight [mG] [kg]	110
Repetition accuracy	±0,05
Permissible vertical process force [N]	1100
Pneumatic straight connection [Ø] [mm]	6
Length in direction of transport [lT] [mm]	0; 160; 240; 320; 400; 480; 640; 800
Scope of delivery	Incl. fastening material; Switch bracket for the assembly of M12 sensors for top and bottom lift position sensing
Delivery information	Assembled

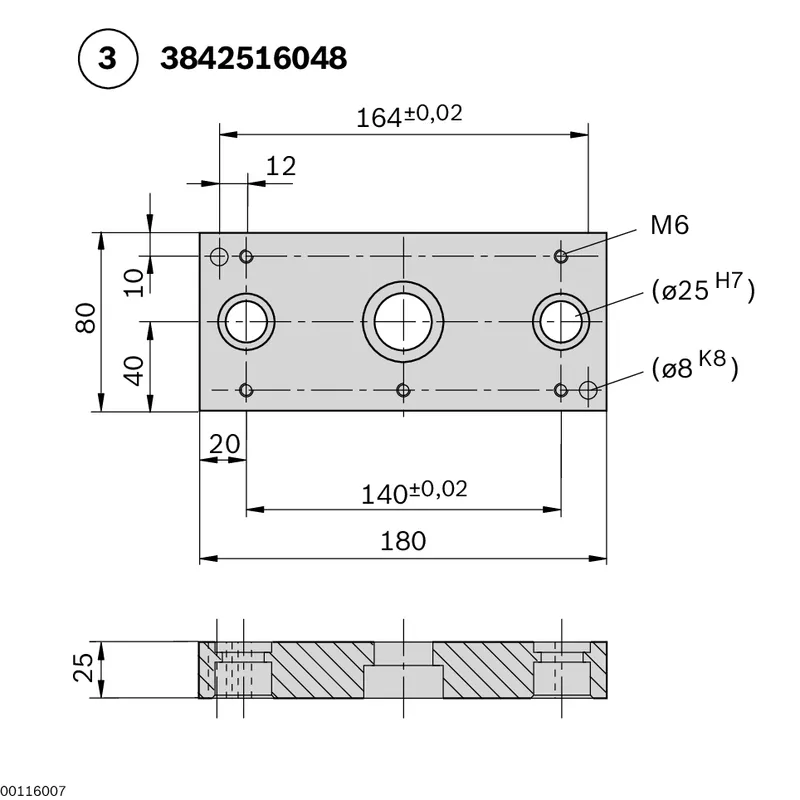

Notice	If the value is "0" at length in direction of transport [lT], HP 2 will be delivered with a lifting plate 3842516048 instead of the lift positioning plate for self-construction of the positioning plate; Throttle check valve, exhaust air with push-in fitting, diameter ⌀ 6 mm, for thread G 3/8" must be attached by the customer; Permissible vertical process forces incl. WT 2
Preferred values [mm]	160; 240; 320; 400; 480
Required accessories	Sensor; Stop gate VE 2/...; Throttle check valve, exhaust air, G3/8", diameter Ø 6 mm
Recommended accessories	Protective case HP 2; Throttle kit (3842211355) to lower the WT gently onto the conveyor medium
Weight [kg]	0
