Bosch Rexroth 3842999027

LIFT POSITIONING UNIT HP 2/L LS

MPN: 3842999027
Category: Lift positioning units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999027?

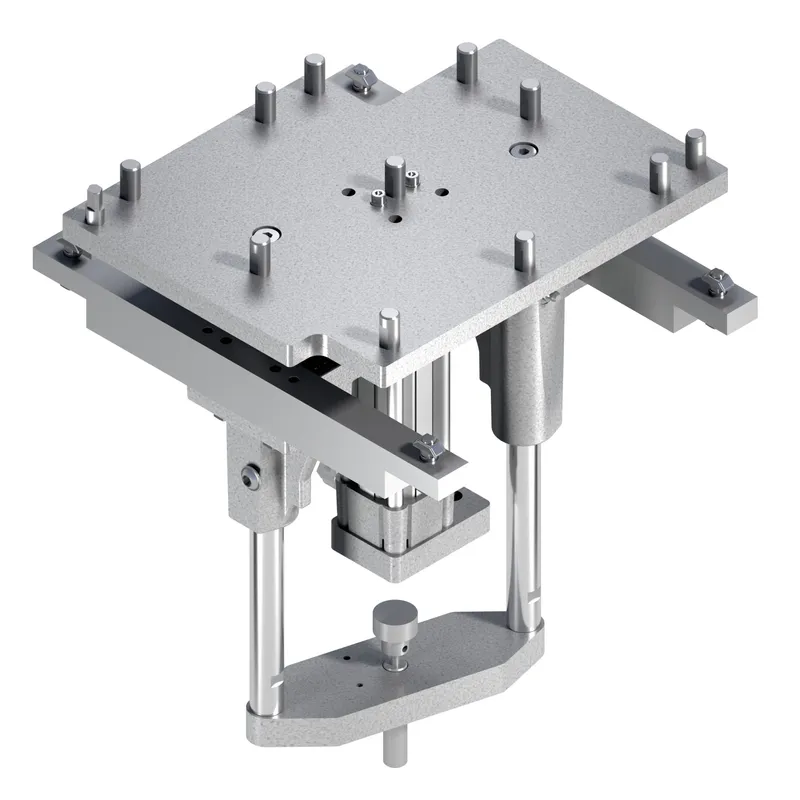

Lift positioning unit HP 2/L LS

Positioning of a workpiece pallet in a processing station with high repetition accuracy requirements

Positioning with exchangeable positioning pins in the HP 2/L and positioning bushings in the WT 2 workpiece pallet

Lifting cylinder of Ø 40 mm with damping for the lower and upper end positions

Exchange of lifting cylinder possible without disassembling the lift plate

5 stroke ranges h 0 of 0 ... 240 mm are infinitely adjustable within the lift range

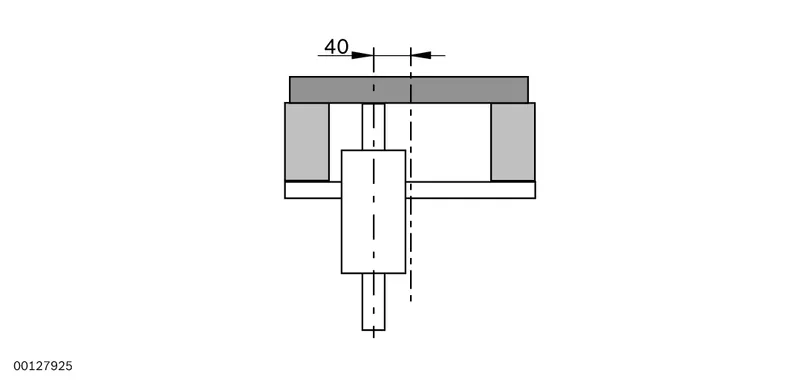

Optional lifting cylinder for b = 240 mm, centrally (HA = 0) or offset (HA = 1). Space-saving configuration made possible by inner WT stop

Adjustment time where H = 50 mm without load in each case: Upward stroke = 0.5 s, downward stroke = 0.5 s (= lift range from 0 to 28 mm)

Can be combined with WT 2, WT 2/E, WT 2/F and WT 2/LS (only with version LS)

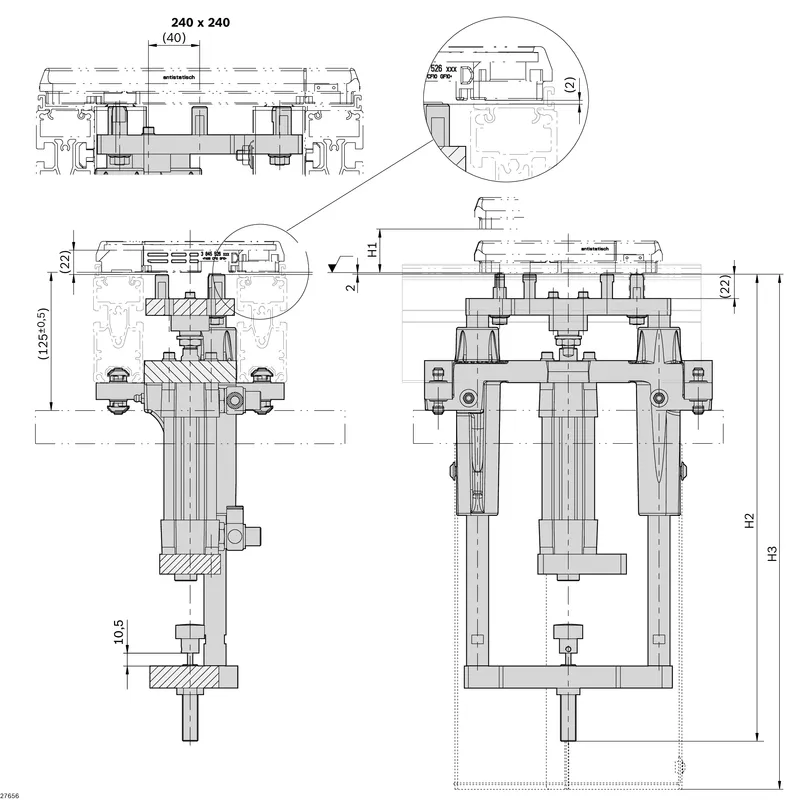

Installation location AO = UB: Installation location under the conveyor section

Installation location AO = AT: Installation location on the machine plate

Installation location AO = O: Installation location for self-construction

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Workpiece pallet total weight [mG] [kg]	40
Repetition accuracy	±0,05
Permissible vertical process force [N]	400
Pneumatic straight connection [Ø] [mm]	8
Lift arrangement [HA]	0; 1
Length in direction of transport [lT] [mm]	160; 240; 320
Scope of delivery	Incl. fastening material; Incl. throttle check valve
Delivery information	Assembled
Notice	HA = 1 only for b = 240 mm; Permissible vertical process forces incl. WT 2; Repetition accuracy applies only to lifts of up to 204 mm
Preferred values [mm]	160; 240; 320
Required accessories	Position sensor set SA cylinder; Position sensor set with turret stop RA; Protective case HP 2/L
Weight [kg]	0
