Bosch Rexroth 3842999002

LIFT TRANSFER UNIT HQ 2/C-H

MPN: 3842999002
Category: Lift transverse units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999002?

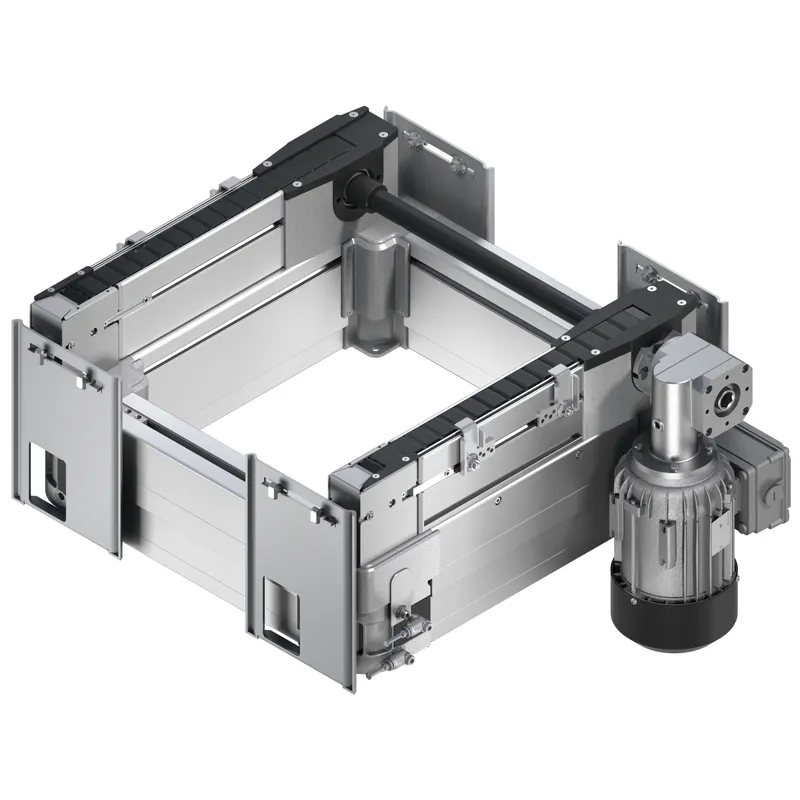

HQ 2/C-H Lift Transverse Unit

Lift transverse unit for feeding out of a from longitudinal section into a transverse section and vice versa

Use for high total weights up to 2 kg/cm on the smallest side of the workpiece pallet and up to 240 kg

Flat construction permits system layouts on several levels

Synchronized lifting movement of the four block cylinders for uniform and parallel lifting movement

Conveyor Medium Flat Top Chain

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2, WT 2/F, WT 2/H and WT 2/F-H

Depending on the installation, height-adjustable lateral guides can be used as a fixed stop for exporting or as a lateral guide when changing workpiece pallets

Fixed stops in the form of adjustable/movable lateral guides made of strip steel

Reversible operation possible

Accumulation operation not permitted

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	800 … 1200 x 800 ... 1200
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	240
Pneumatic straight connection [Ø] [mm]	8
Track width in the transverse conveyor min [bQ min] [mm]	480
Track width in the transverse conveyor max [bQ max] [mm]	1200
Track width in the longitudinal conveyor min [bL min] [mm]	640
Track width in the longitudinal conveyor [bL max] [mm]	1200
Scope of delivery	Assembly kit for electrical position inquiry; Incl. fastening material; Lateral guide kit for b<sub>l</sub> ≤ 640 mm or for b<sub>l </sub>> 640 mm; Switch holder for 12 mm sensor for position inquiry
Delivery information	Fully assembled; Kits for lateral guides included
Notice	Individual width variants available for track width in longitudinal conveyor; Individual width variants available for track width in transverse conveyor
Preferred values [mm]	1040; 1200; 480; 640; 800
Required accessories	Dampers for outfeeding and infeeding workpiece pallets; M12x1 sensor for position inquiry
Recommended accessories	A fixed stop (included in the scope of delivery) or the DA 2/100-C damper can be used for infeeding the WT 2 and WT 2/F workpiece pallet. This is also possible in combination with rocker WI 2, WI 2/X, WI 2/D, WI 2/M.; Dampers DA 2/100-E, DA 2/150-E or a fixed stop (included in the scope of delivery) can be used for outfeeding the WT 2, WT 2/F, WT 2/H and 2/F-H workpiece pallets. Damper DA 2/100-C can be used at the belt end for outfeeding a WT 2 or WT 2/F workpiece pallet.; Dampers DA 2/100-H or DA 2/250-H for outfeeding of the workpiece pallets WT 2/H and WT 2/F-H; The DA 2/100-H and DA 2/250-H dampers can be used for infeeding the WT 2/H and WT 2/F-H workpiece pallets.
Weight [kg]	0
