Bosch Rexroth 3842998324

POSITIONING UNIT PE 2/X

MPN: 3842998324
Category: Positioning units TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998324?

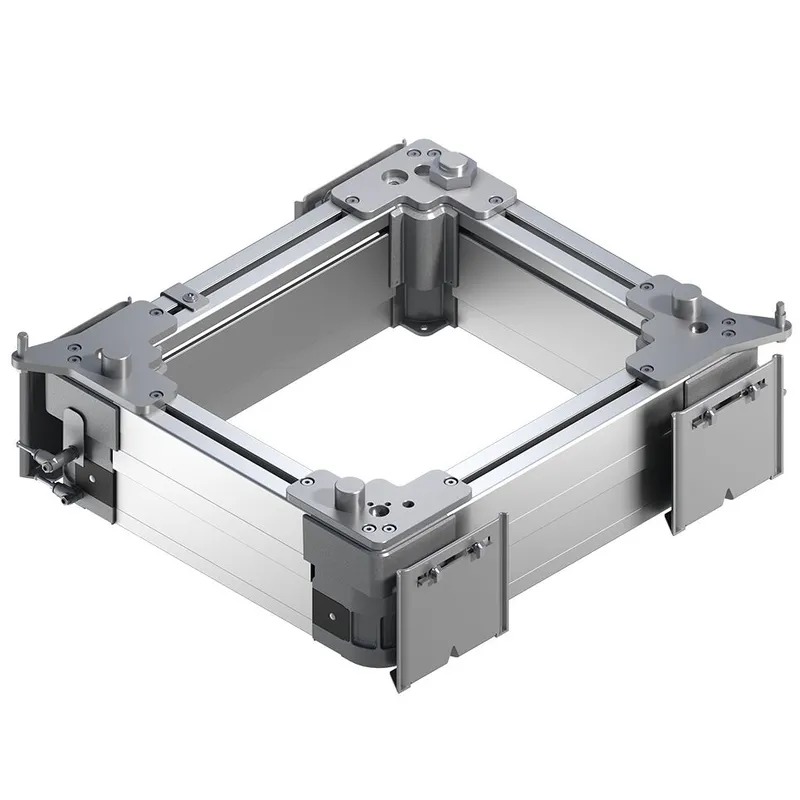

PE 2/X Positioning Unit

To position a workpiece pallet in a manual/automatic processing station

Positioning accuracy up to ±0.1 mm when assembled on a separate machine frame

WT lift above transportation level, approx. 3 mm

Positioning by means of the positioning pins of the PE 2 and positioning bushings of the WT 2 workpiece pallet

Mounting bores on lift frame as an optional fastening point for a separate machine frame

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2 and WT 2/F workpiece pallets

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Workpiece pallet total weight [mG] [kg]	100
Repetition accuracy	±0,1
Permissible vertical process force [N]	3500
Lift of WT over conveyor medium [h0]	3
Pneumatic straight connection [Ø] [mm]	8
Length in direction of transport [lT] [mm]	1040; 1200; 480; 640; 800
Scope of delivery	Incl. fastening material; Switch bracket for mounting of M12 sensors for position inquiry, top
Delivery information	Fully assembled
Preferred values [mm]	1040; 1200; 480; 640; 800
Required accessories	Stop gate VE 2/…
Weight [kg]	0
