Bosch Rexroth

Bosch Rexroth 3842998288

CURVE MODULE CU 2/90

MPN: 3842998288
Category: Curves TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998288?

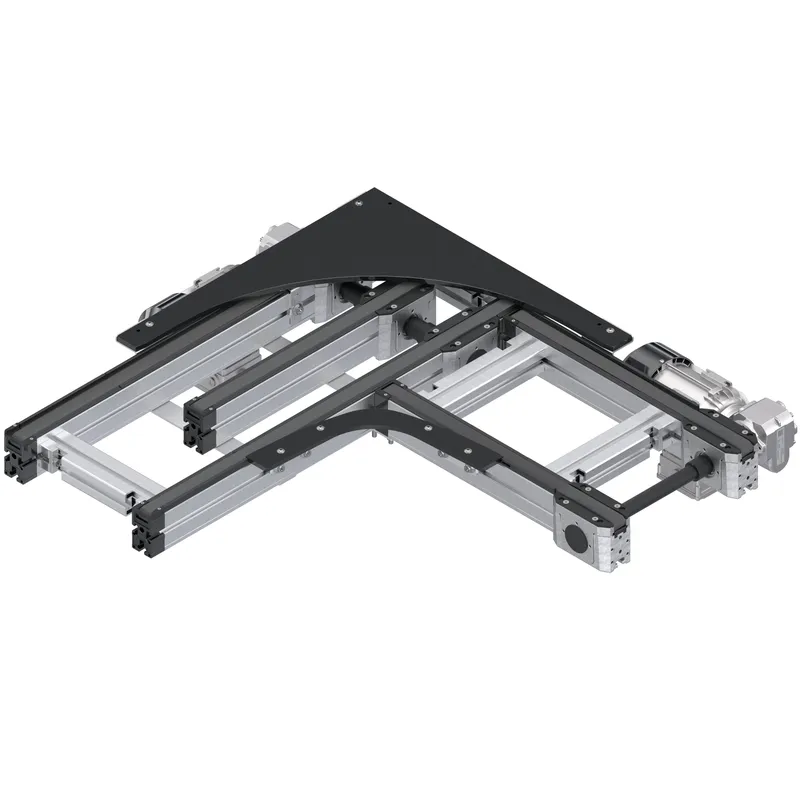

Curve CU 2/90

90° curve conveyor for the workpiece pallet

With no additional drive for the curve function

Overall weight of workpiece pallets up to 10 kg

Conveyor medium: Toothed belt (suitable for use in an EPA)

Curve in anti-static version

Can be combined with WT 2 and WT 2/F

Specifications

ESD	Yes
Length max [L max] [mm]	6000
Length min [L min] [mm]	721
Section load in accumulation operation [kg]	60
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	10
Track width in direction of transport [b] [mm]	240; 320
Length in direction of transport [lT] [mm]	240; 320; 400
Scope of delivery	Fastening material; Inner guide; Outer guide; Belt section; Connection kit
Delivery information	Partially assembled
Notice	Section load in accumulation operation before the curve
Preferred values [mm]	240; 320
Conveyor medium	Toothed belt (suitable for use in an EPA)
Recommended accessories	Accumulation pressure control, for example, with WI/M rocker; Section supports SZ 2/...
Weight [kg]	0
