Bosch Rexroth 3842998289

ELT TRANSVERSE CONVEYOR EQ 2/TR 90

MPN: 3842998289
Category: Electrical transverse conveyors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998289?

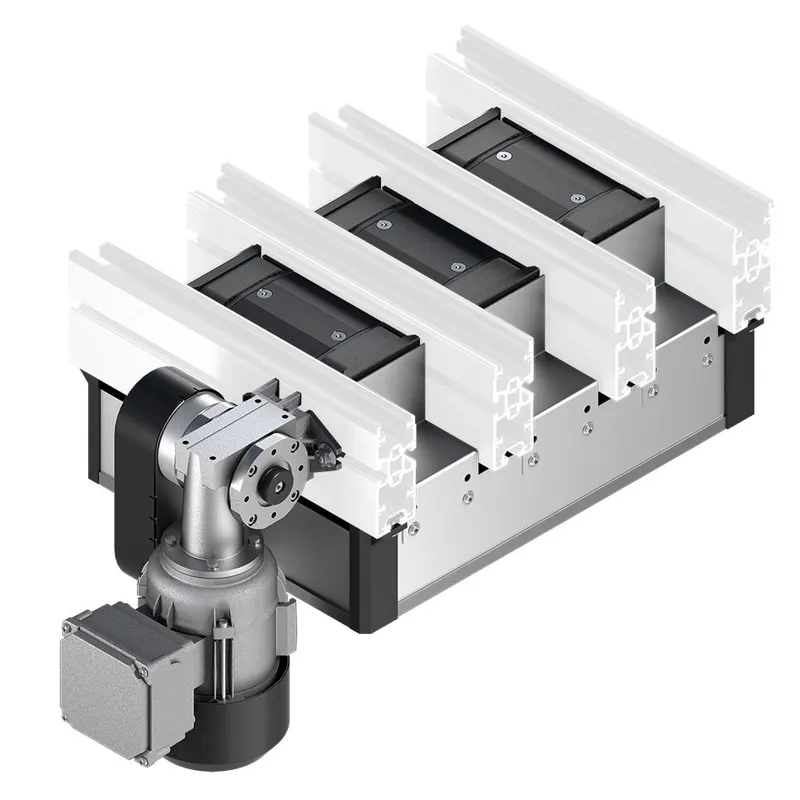

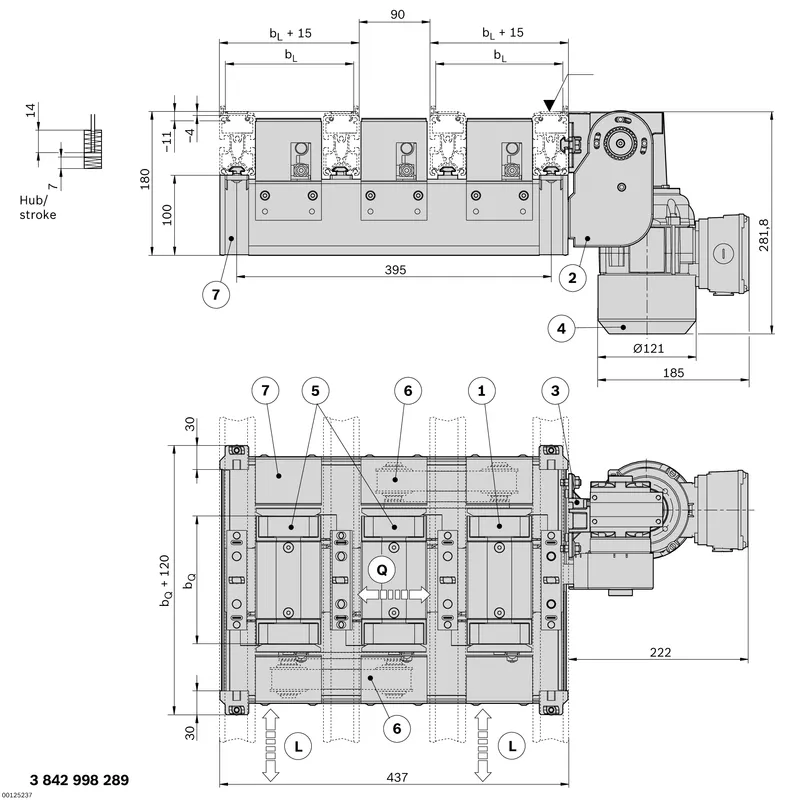

EQ 2/TR-90 Electrical Transverse Conveyor

Complete macro module for connecting two parallel longitudinal sections at a distance of 90 mm from one other

With driven intermediate sections

Modular unit with three lifting cylinders

Conveyor medium: Toothed belt (suitable for use in an EPA)

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2, WT 2/E and WT 2/LS (only with version LS)

Reversible operation possible

Accumulation operation not permitted

Specifications

ESD	Yes
Track width in the longitudinal conveyor [bL] [mm]	160
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	160 x 160; 240 x 160
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	30
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Connection kit; Incl. fastening material; Kit for electrical position inquiry (2x sensors); Pneumatic equipment for two or three positions; Protective housing
Delivery information	Drive kit, assembled; HQ 2/O and HQ 2/T lift transverse unit assembled; Motor attachment kit, drive motor enclosed; Protective housing, not assembled
Preferred values [mm]	160; 240
Conveyor medium	Toothed belt (suitable for use in an EPA)
Required accessories	1x M12x1 sensor with rated sensing range S for each (top/bottom) position inquiry<sub>N</sub> = 4 mm
Recommended accessories	Damper DA 2/60 for the outfeeding of the workpiece pallets WT 2 and WT 2/E at v<sub>N</sub> > 9 m/min; Rocker WI 2/…, WI/M and damper DA 2/60 for the infeeding of workpiece pallets WT 2 and WT 2/E
Weight [kg]	0
