Bosch Rexroth 3842998291

DRIVE KIT VFPLUS VAR

MPN: 3842998291
Category: Drive and return unit AL, drive kit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998291?

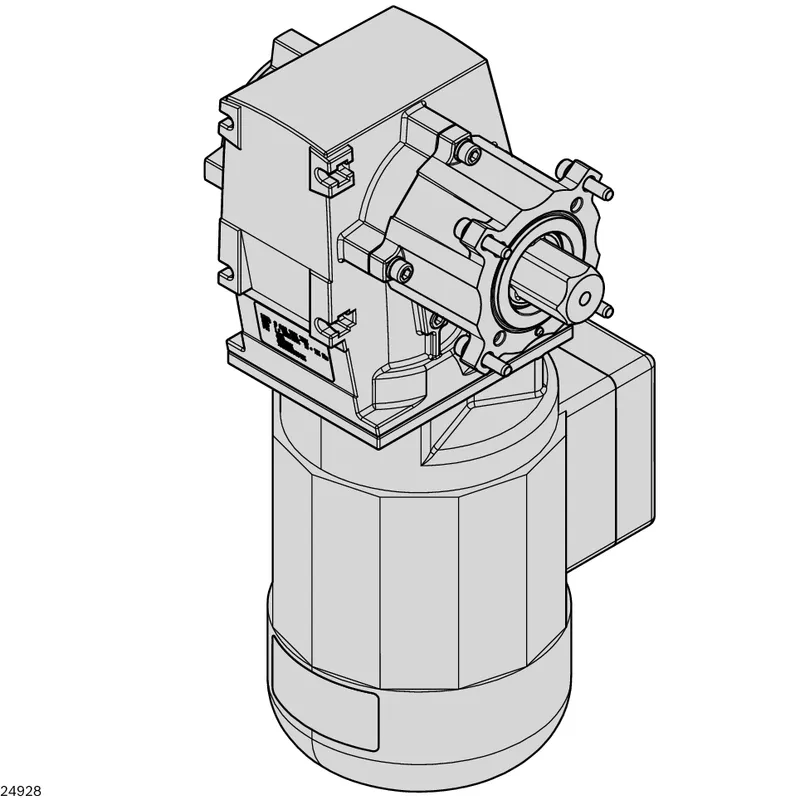

The drive kit contains a flange for attaching the motor to the basic unit, a hexagonal shaft for transmission of force, as well as other optional equipment features.

Versions in aluminum (SP = AL) or stainless steel (SP = STS)

For SP = AL, with adjustable ball catch coupling (Kpg = 1) or without (Kpg = 0). The adjustable ball catch coupling is protected and integrated in the flange to save space and does not serve personal protection. Preset to maximum chain tensile force at the factory

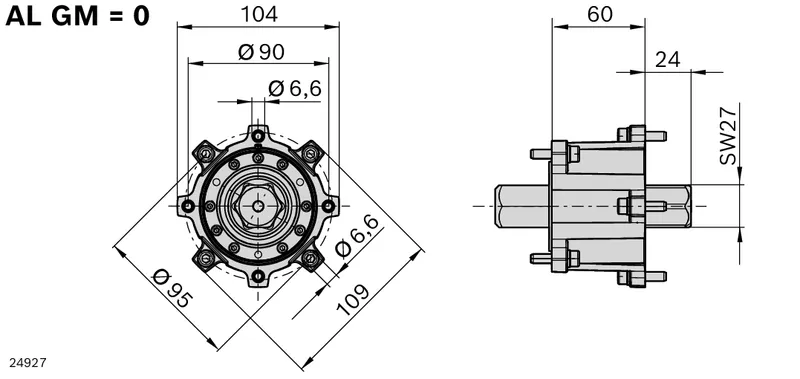

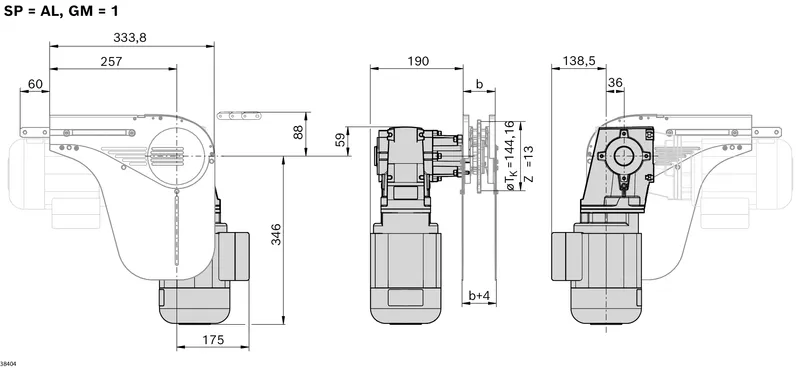

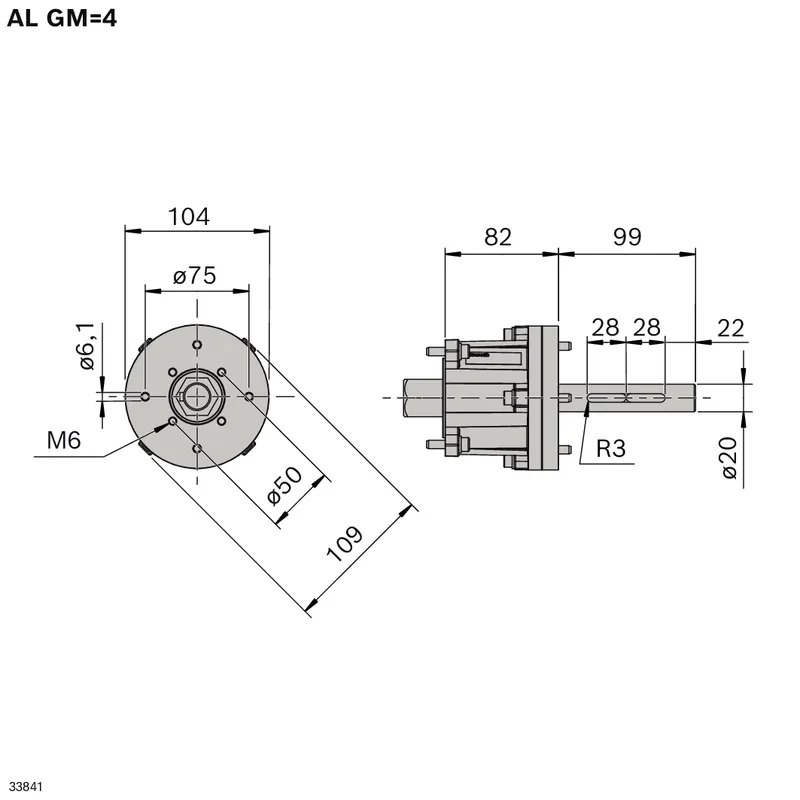

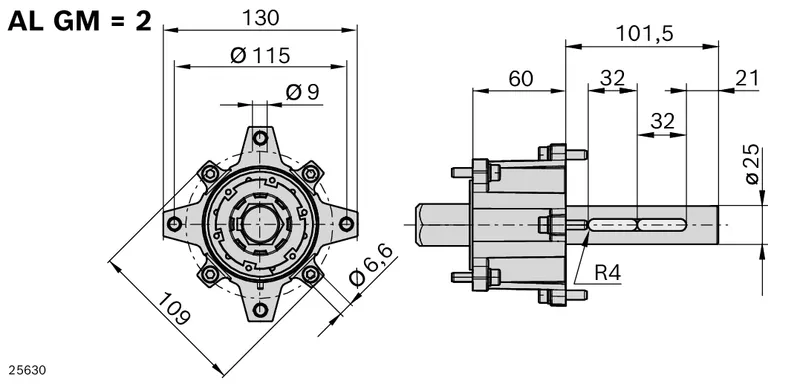

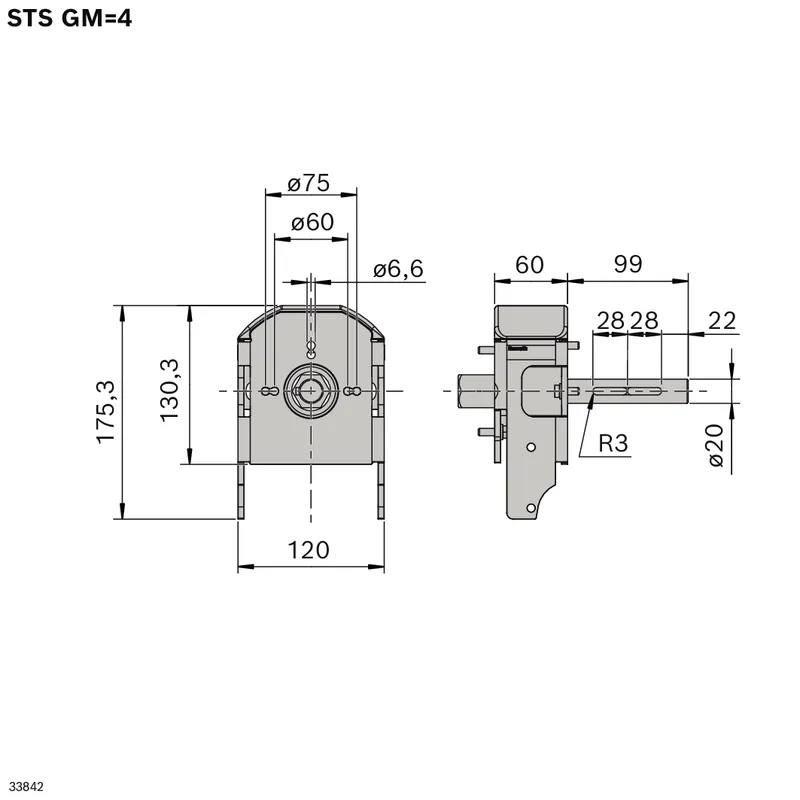

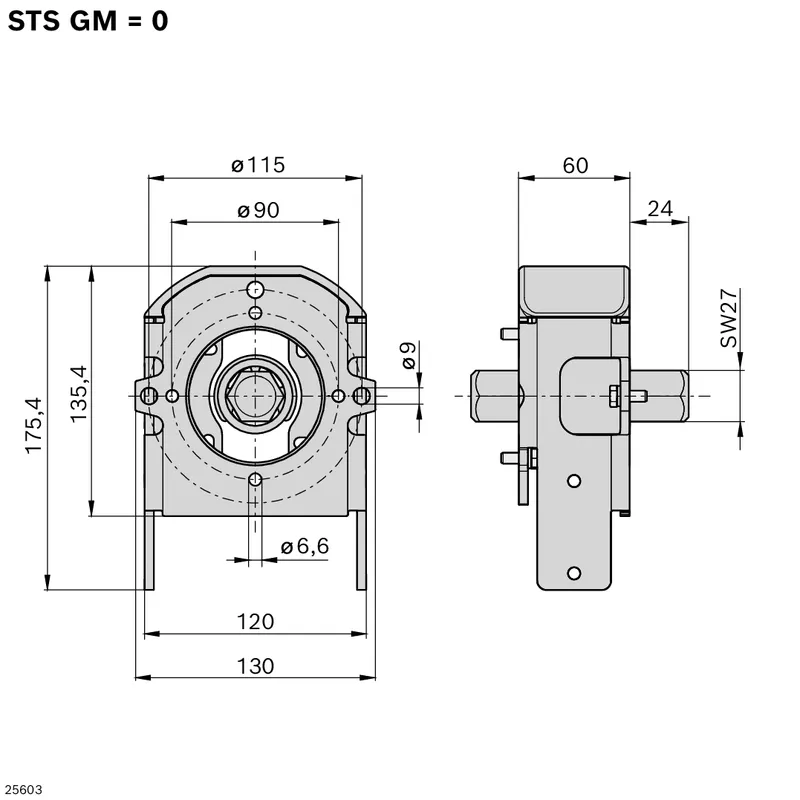

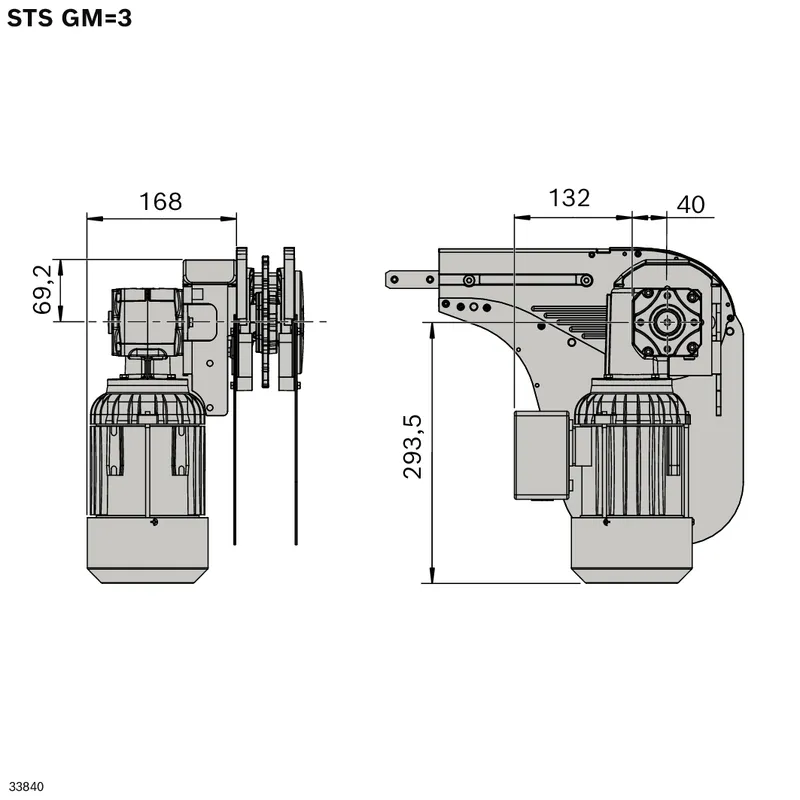

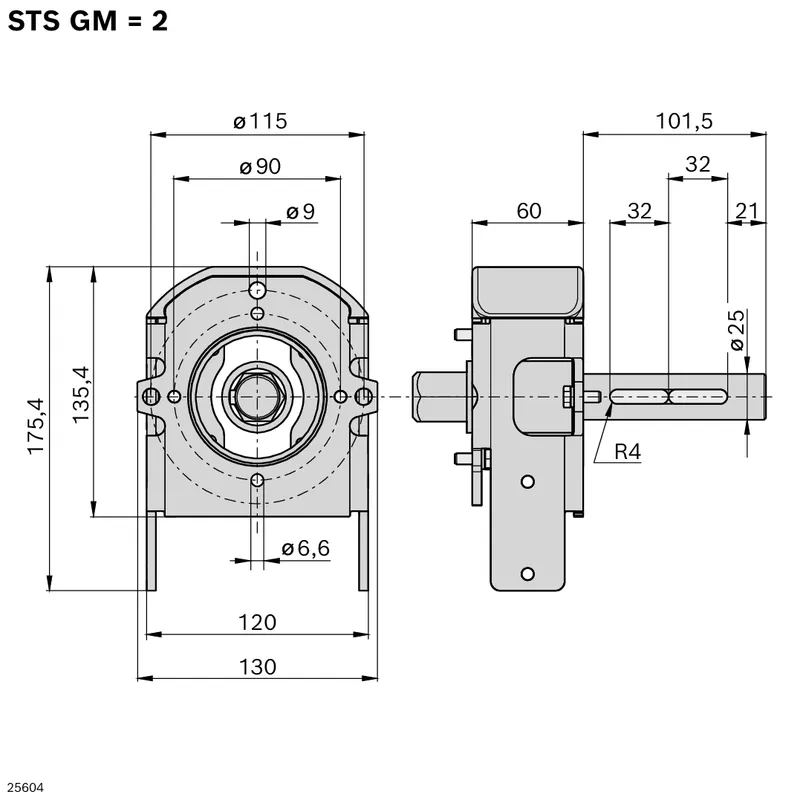

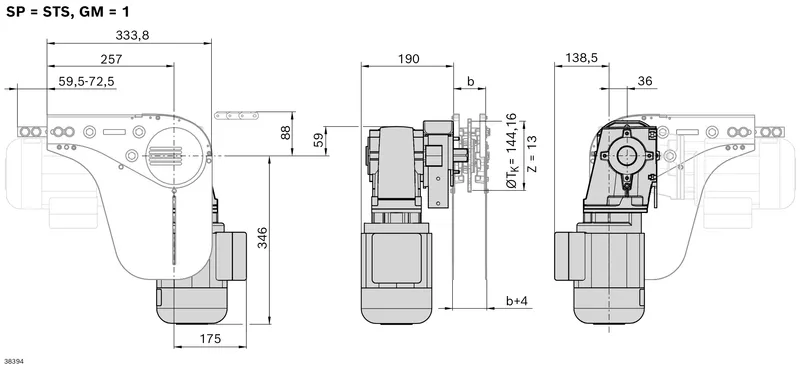

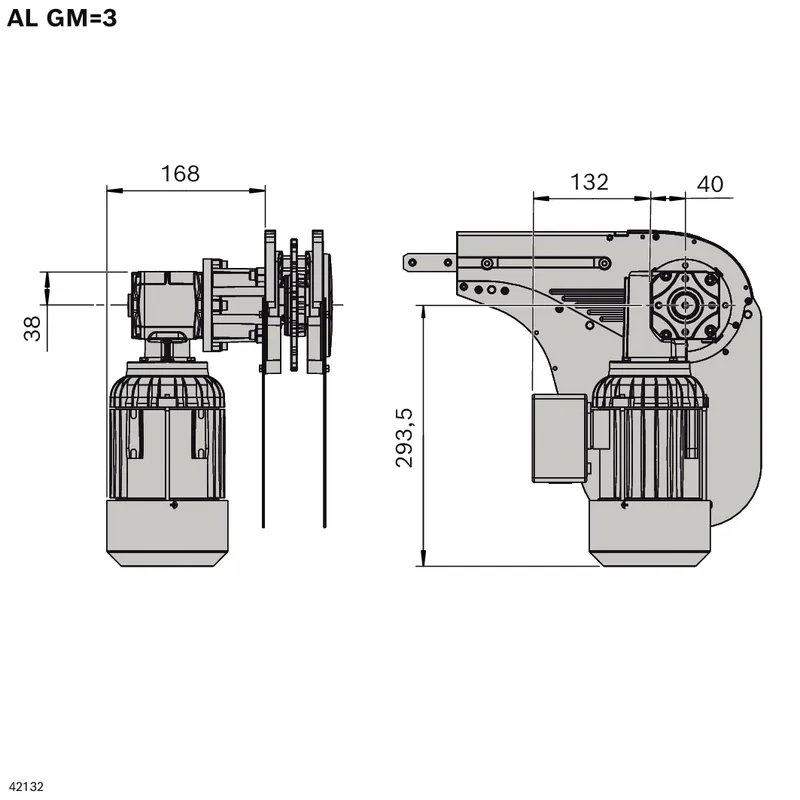

With Lenze gear motor (GM = 1, without surface and corrosion protection) or with an interface for attaching an SEW SA47 gear motor (GM = 2). In order to ensure a compact installation situation, smaller and lighter gear motors (GM=3) or an interface for the installation of an SEW SA37 gear motor (GM=4) are available for applications with low load. An adaptation by the customer is required for attaching other gear motors (GM = 0),

Fixed or adjustable speed (vN). For an adjustable speed, gear motors must be retrofitted with an FU (frequency converter)

Connections are made using terminal boxes (AT = K) or plugs (AT = S)

Specifications

Size [b] [mm]	120; 160; 240; 320; 65; 90
Nominal speed [vN]	10 m/min; 13 m/min; 16 m/min; 21 m/min; 27 m/min; 33 m/min; 40 m/min; 5 m/min; 50 m/min
Version [SP]	AL = Aluminium; STS = Edelstahl
Gear motor [GM]	0 = Schnittstelle SW27 ohne Getriebemotor; 1 = Schnittstelle SW27 Lenze-Getriebemotor hohes Drehmoment; 2 = Schnittstelle für SEW SA47 ohne Getriebemotor; 3 = Schnittstelle SW17 niedriges Drehmoment; 4 = Schnittstelle für SEW SA37 ohne Getriebemotor
Scope of delivery	Incl. fastening material; Incl. flange, shaft and gear motor (GM = 1)
Delivery information	Assembly kit
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	AL-STS motor: Diecast aluminum; Ball catch coupling (AL): Steel; Cover tube (STS): PE; Flange (AL): Diecast aluminum; Flange, shaft (STS): Non-rusting steel 1.4301; Shaft (AL): Non-rusting steel 1.4301/PA
Required accessories	Motor support
Recommended accessories	Frequency converter
Weight [kg]	0
