Bosch Rexroth 3842998332

FLOW RACK LEAN

MPN: 3842998332
Category: Lean flow rack

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998332?

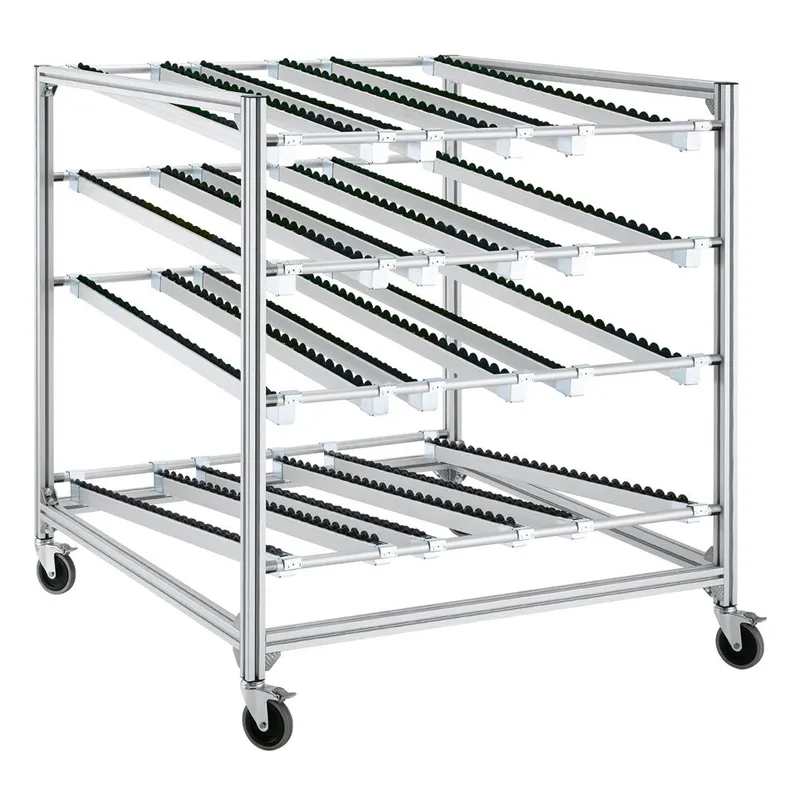

Flow Rack Lean

Material supply in the supermarket or directly at the workstation

Selection of various conveyor media allows for maximum flexibility and diverse combination options: Rollers, roller elements and slide rails

Colored rollers provide visual indicators to identify inventories or good/reject parts

Available as ESD-conductive version

Design: Fully assembled or as a kit

Allows for the addition of any desired modules, including cross ties and conveyor tracks as well as individual components

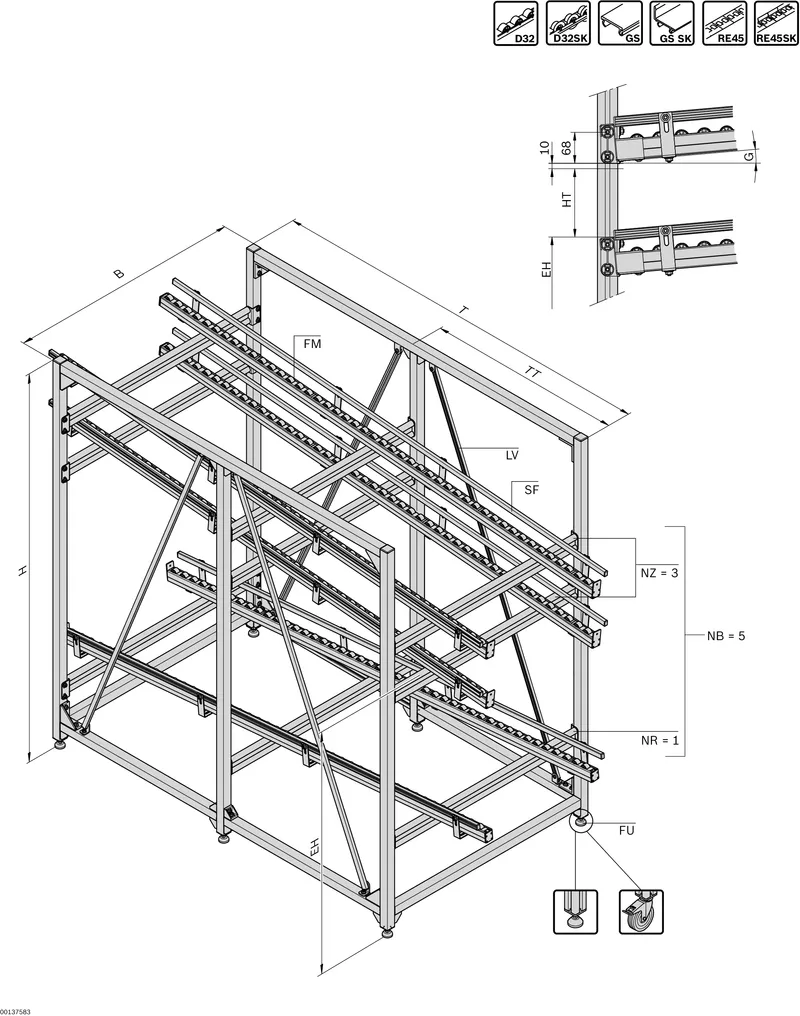

Specifications

Conductivity [ESD]	yes, no
Packaging unit	1
Version [A]	Disassembled, assembled
Foot type [FU]	Leveling foot, LR
Load version [LV]	400 kg, 2000 kg
Conveyor medium FM	Rollers with Ø32 mm with/without roller flange, various spacing, slide rails with/without border, roller elements with/without border
Roller color F	black, red, yellow, green
Gradient G	0 ... 10 % (recommended: 6 %)
Lateral guide SF	with; without
Number of conveyor tracks [NB]	0 ... 64
Number of return levels [NR]	0 ... 7
Number of supply levels [NZ]	1 ... 8
Cross tie type [PT]	Tubular cross tie, tubular cross tie with bracket, profile cross tie, double tubular cross tie
Division of flow rack depth [TT]	1000, 1500
Number of side elements [Typ]	0, 1, 2
Rear conveyor track projection [UH]	0, 50 ... 1000 mm
Front conveyor track projection [UV]	0, 50 ... 1000 mm
Flow rack system width min [B] [mm]	400
Flow rack system width max [B] [mm]	1500
Removal height of the lower supply level min [EH] [mm]	263
Removal height of the lower supply level max [EH] [mm]	1800
Flow rack system height min [H] [mm]	600
Flow rack system height max [H] [mm]	2000
Flow rack system depth min [T] [mm]	400
Flow rack system depth max [T] [mm]	6000
Transportation height min [HT] [mm]	100
Transportation height max [HT] [mm]	1200
Weight [kg]	0
