WORKPLACE HV LIFT 410MM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Workstations |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842998350 be shipped?
3842998350 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842998350 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842998350 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998350, subject to availability and destination.

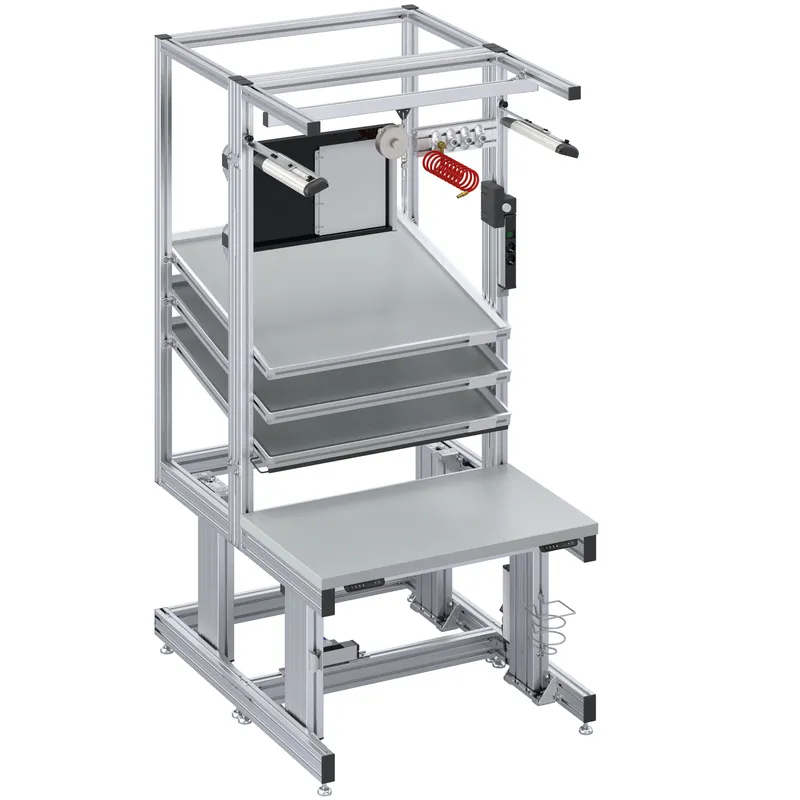

Height-adjustable workstation Large number of adjustment options for high versatility Freely selectable geometry and functionality Independent adjustment of material feed and table top heights Available as ESD-conductive version Fully assembled or as a kit for self-assembly Allows for the addition of any desired modules, including cross ties and conveyor tracks as well as individual components

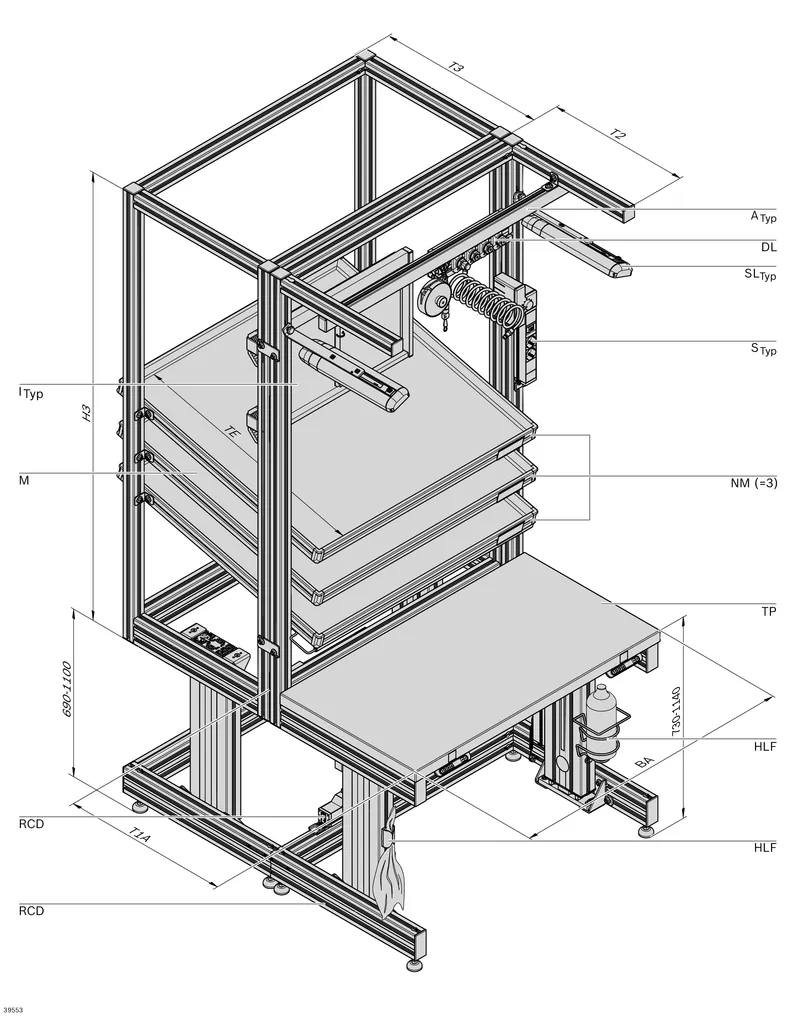

Specifications
Specifications
| Profile slot | 10 |
| Conductivity [ESD] | yes, no |
| Country version [L] | D, F, GB, CH, USA/CAN, CZ |
| Version [A] | Disassembled, assembled |
| Depth of accessory upright [T3] | up to 800 mm |
| Depth of bracket [T2] | up to 800 mm |
| Cloth and bottle holder [HLF] | with; without |
| Compressed air strip [DL] | with; without |
| Load version [LV] | Number of lifting modules |
| Material shelf material [M] | 3 different material shelves |
| Number of material shelves [NM] | 0 ... 4 |
| Residual current device [RCD] | yes, no |
| Height of strut extension [H3] | up to 1500 mm |
| Suspension profile [E] | with; without |
| Type of table top [TP] | 4 different table tops |
| Type of hanger [ATyp] | with, without hanger. Selectable spring pulls |
| Type of information board [Ityp] | 7 different information boards |
| Type of system lamp [SLTyp] | 6 different lamps |
| Type of socket [Styp] | 4 different sockets |
| Depth of workstation [T1A] | up to 1000 mm |
| Workstation width min [BA] [mm] | 640 |
| Workstation width max [BA max] [mm] | 2000 |
| Material shelf depth min [TE] [mm] | 520 |
| Material shelf depth max [TE max] [mm] | 1100 |
| Weight [kg] | 0 |
