Positioning units TS 2plus Parts
Compare Positioning units TS 2plus
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Track width in direction of transport [b] [mm] | Length in direction of transport [lT] [mm] | Workpiece pallet total weight [mG] [kg] | Permissible vertical process force [N] | Weight [kg] |
|---|---|---|---|---|---|
| 3842504706 | 160 | 160 | 30 | 300 | 2.73 |
| 3842242350 | — | 160 | 20 | 60 | 12.15 |
| 3842242351 | — | 240 | 30 | 100 | 28.55 |
| 3842998324 | — | 1040; 1200; 480; 640; 800 | 100 | 3500 | 0 |
| 3842563406 | 240 | 400 | 30 | 300 | 3.96 |
| 3842563405 | 240 | 320 | 30 | 300 | 3.64 |
| 3842563404 | 240 | 240 | 30 | 300 | 3.5 |
| 3842563403 | 240 | 160 | 30 | 300 | 3.6 |
| 3842563402 | 160 | 320 | 30 | 300 | 3.1 |
| 3842563401 | 160 | 240 | 30 | 300 | 2.8 |
| 3842563400 | 160 | 160 | 30 | 300 | 2.73 |
| 3842999000 | — | 1040; 1200; 480; 640; 800 | 240 | 3500 | 0 |
| 3842504719 | 400 | 400 | 30 | 300 | 5.43 |
| 3842504717 | 320 | 400 | 30 | 300 | 4.48 |
| 3842504713 | 240 | 400 | 30 | 300 | 3.96 |
| 3842504718 | 400 | 320 | 30 | 300 | 5.1 |
| 3842504716 | 320 | 320 | 30 | 300 | 4.32 |
| 3842504712 | 240 | 320 | 30 | 300 | 3.64 |
| 3842504708 | 160 | 320 | 30 | 300 | 3.1 |
| 3842504715 | 320 | 240 | 30 | 300 | 4 |
| 3842504711 | 240 | 240 | 30 | 300 | 3.5 |
| 3842504707 | 160 | 240 | 30 | 300 | 2.8 |

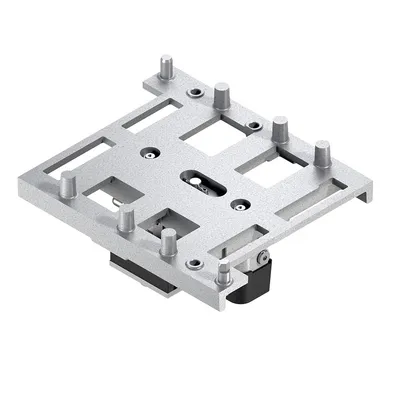

| 3842504714 | 320 | 160 | 30 | 300 | 5.08 |
| 3842504710 | 240 | 160 | 30 | 300 | 3.6 |
Common to all listed parts
| ESD | Yes |
